Lingenfelter L250280197 Lingenfelter C5 Corvette E-Force Supercharger Install Kit v2.9 - Manual (Page 41)

Page 40

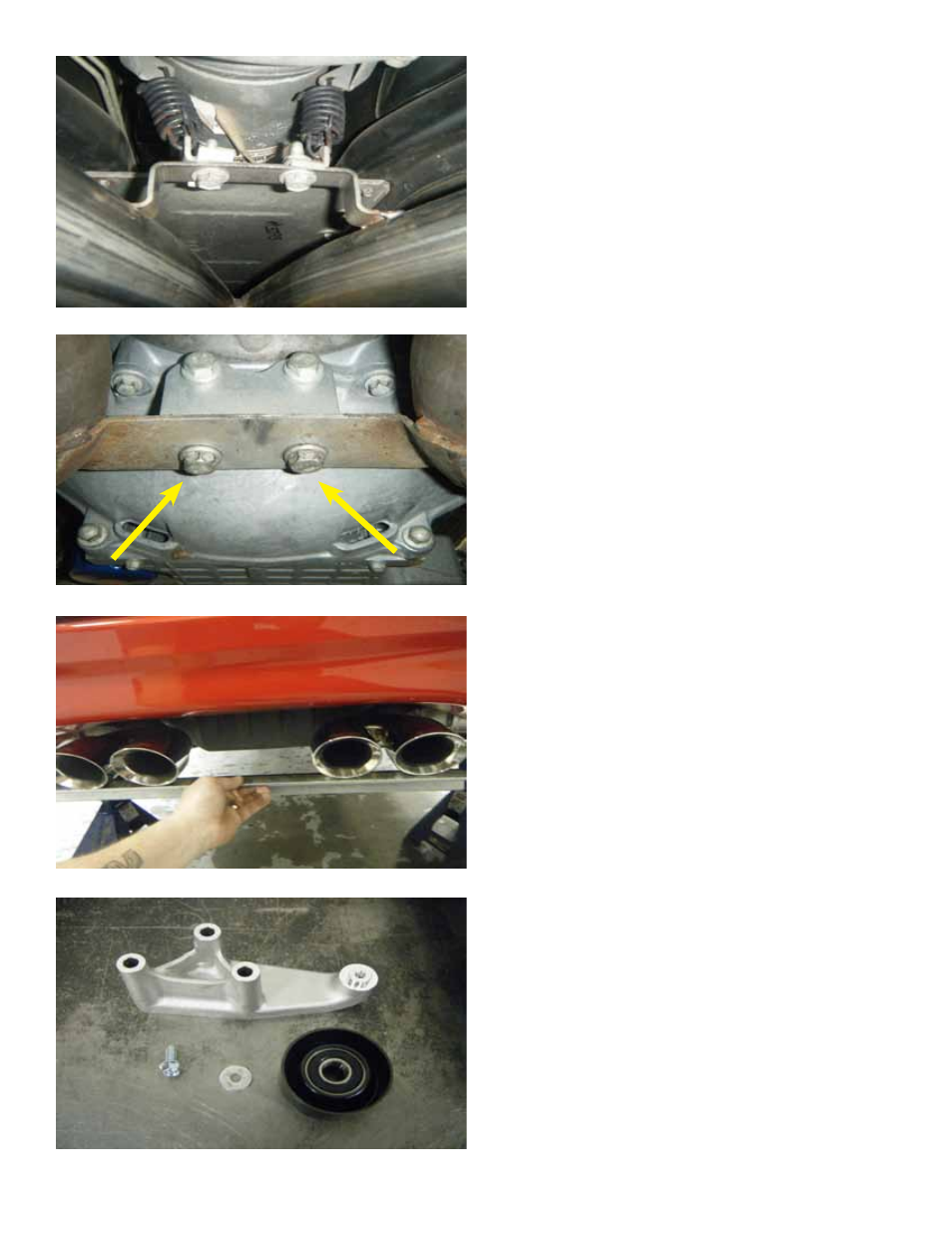

123. Using a 13mm socket, re-install the rear
spring hanger bolts and tighten. Torque the bolts
to 15 ft-lbs.
124. Re-install the front hanger by finger
tightening the bolts, then tighten the six (6) nuts
connecting the exhaust to the manifold with
a 15mm socket. After the manifold nuts are
tightened to 15 ft-lbs, tighten the front hanger
bolts. Torque the front hanger bolts to 37 ft-lbs.
125. Start the bolts that hold up the rear
flanges. While tightening the bolts, hold a
straight edge to the bottom of the exhaust tips
to ensure that the exhaust stays parallel to the
ground.
126. The Edelbrock-supplied idler pulley,
bracket, bolt, and washer will be installed in the
following step.
