Page 74

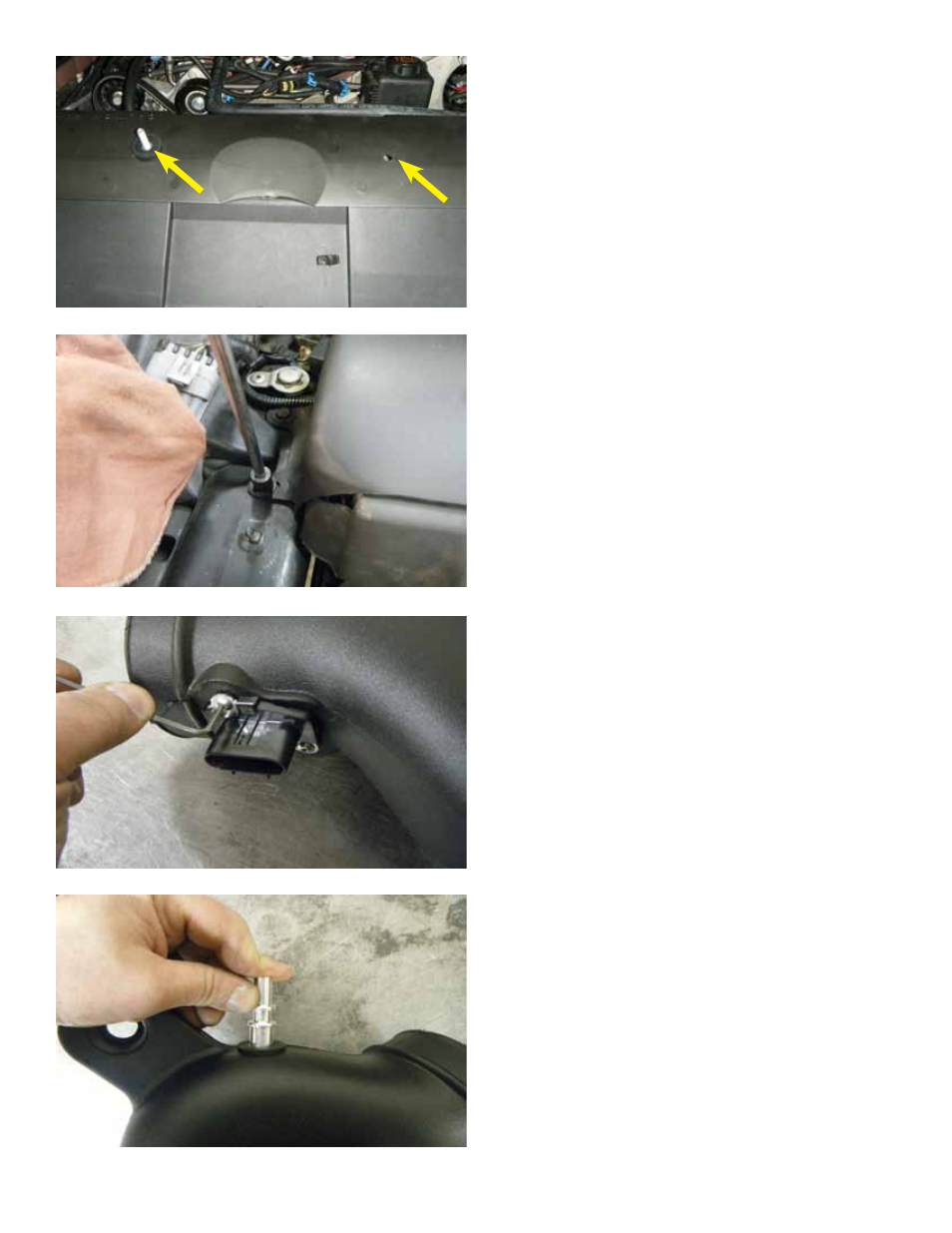

258. This illustration shows one of the studs in
its inverted orientation so that the inlet tube can
slide onto the stud.
259. Install the radiator support using the four
factory bolts. Tighten with a 10mm socket.
260. Using a 3/32 inch Allen wrench and
blue Loctite®, install and tighten the Edelbrock
E-Force GM MAF sensor (PN: 15865791) with
the supplied screws into the E-Force inlet tube.
261. Install the Edelbrock grommet and hose
fitting on to the air inlet tube.
