Page 59

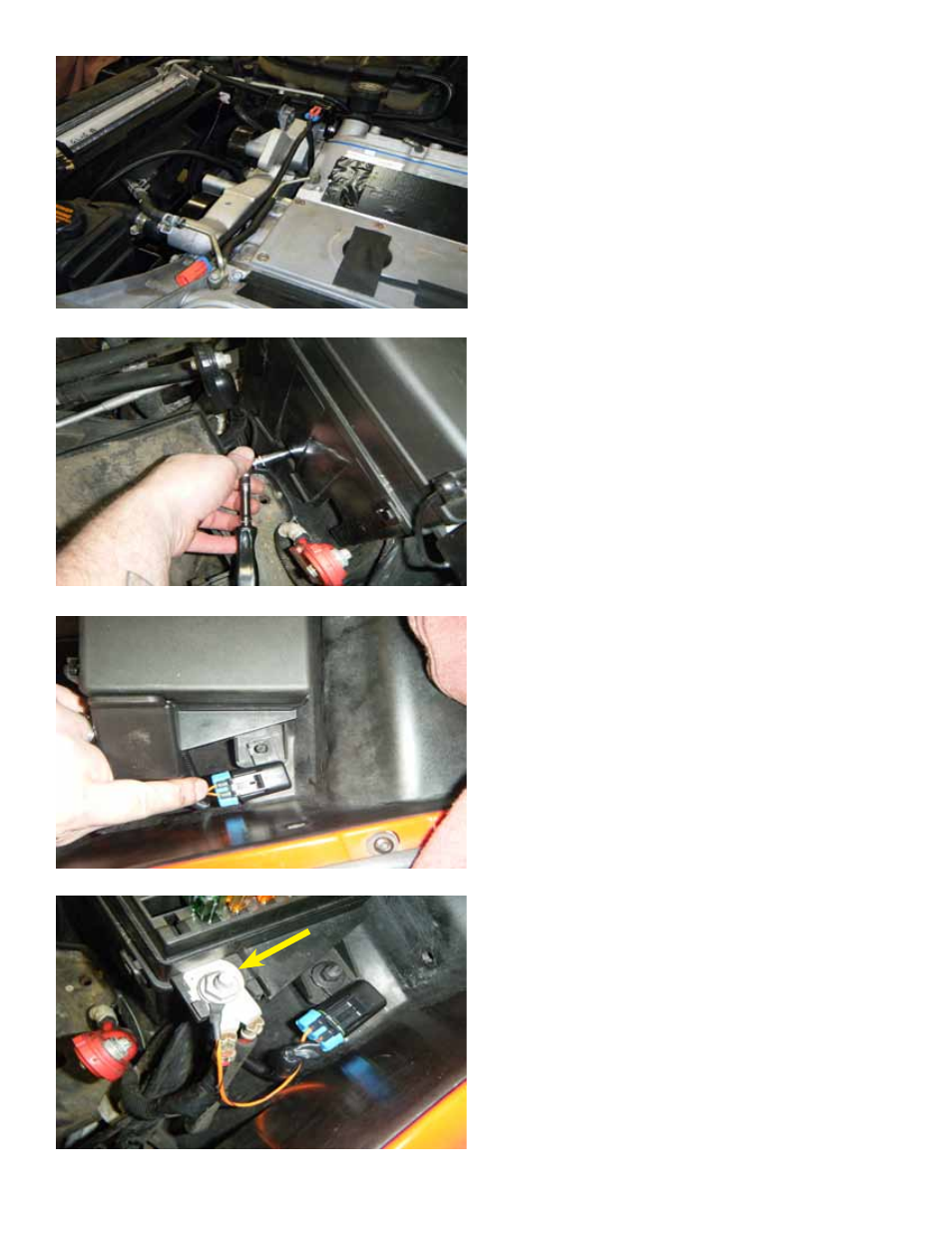

198. Route the intercooler pump harness trigger
wire with red connectors back and under heater
housing, then up and under the belt tensioner
bracket to the EVAP solenoid. Route the other
red female connector across the front of the
engine for now.
199. Using a 10mm socket, remove the two (2)
nuts holding the fuse block to the inner fender.
200. Route the intercooler pump power harness
back and behind the low coolant sensor, then
underneath the fuse block and drop unto the
stud. Re-install the fuse block on the studs using
the two (2) nuts removed in the previous step.
201. Remove the fuse block cover to access
the battery cables. Using a 13mm socket,
remove the nut and install the eyelet from the
intercooler pump harness fuse holder on to the
stud. Torque the nut to 89 in-lbs, then re-install
the fuse block cover.
