Page 52

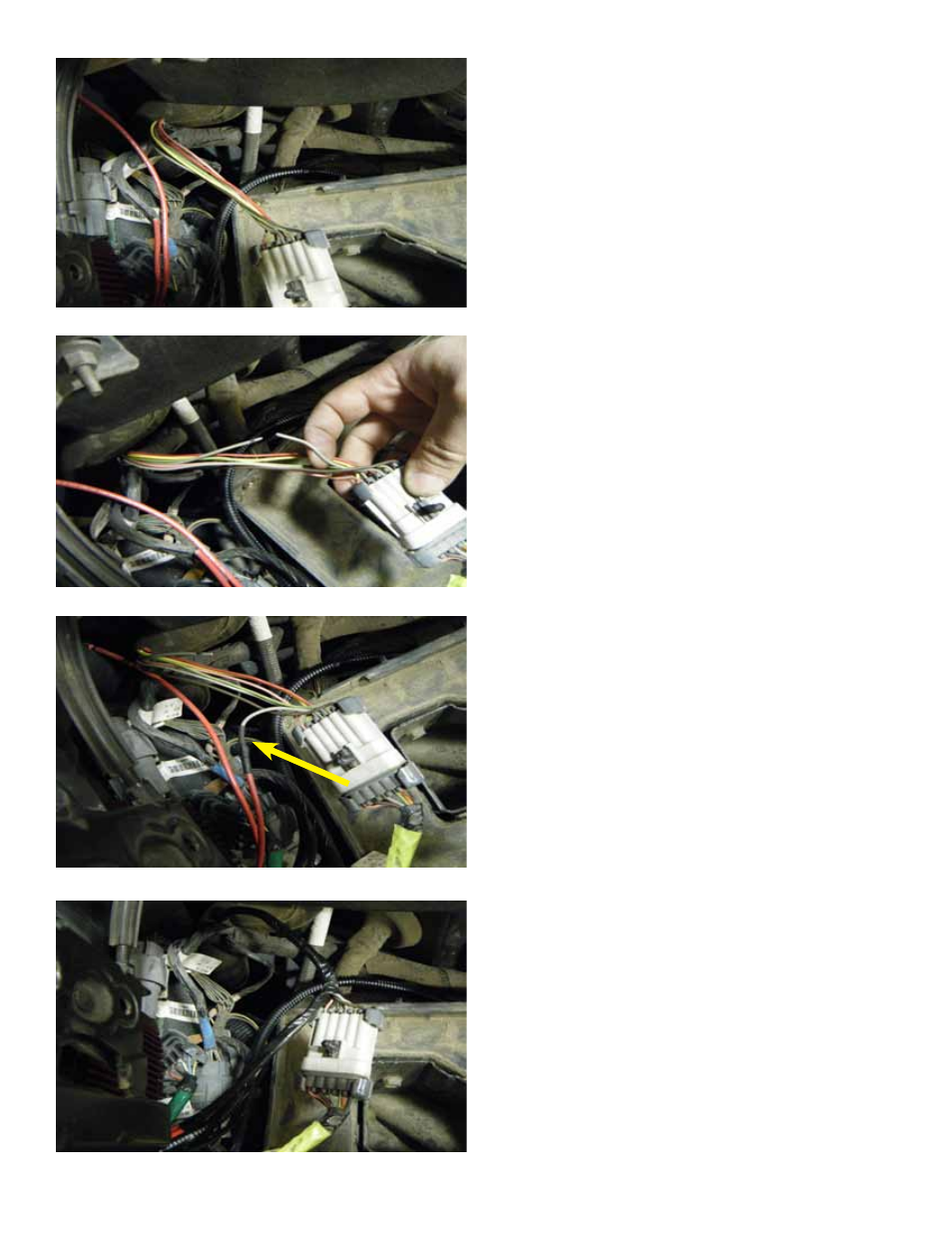

170. Remove the tape from the female side of
the harness connector.
171. Remove the heavy gray wire (the fuel
pump relay power wire) from pin C and cut it
about halfway to the harness break-out.
172. Cut the Boost-A-Pump input wire to
sufficient length and slide a 2” piece of heat
shrink tubing on to it. Then, take the part of the
grey wire still attached to the connector and
solder it to the input wire of the Boost-A-Pump.
Finally, slide the heat shrink tube on to the solder
joint and heat the tubing to seal the joint.
173. Cut the Boost-A-Pump output wire to
sufficient length and slide a 2” piece of heat
shrink tubing on to the Boost-A-Pump output
wire. Then, solder the output wire of the Boost-
A-Pump to the other part of the gray wire going
back into the harness. Slide the shrink wrap
tubing over the solder joint and heat the tubing
to seal the joint. Finally, cover the harness
wires with elecrical insulation tape to hold them
together.
