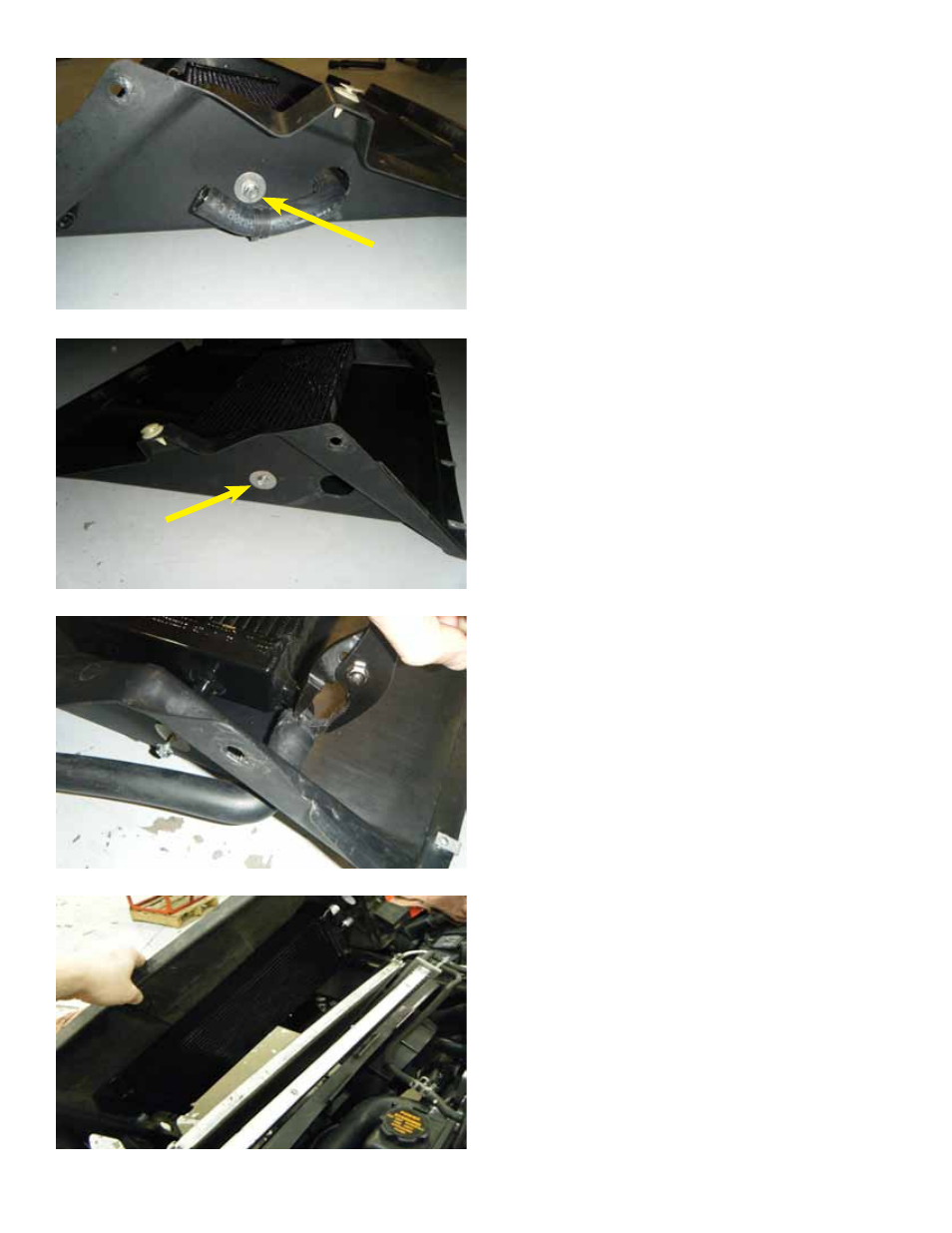

186. Using a 10mm socket and ratchet, install
the passenger side heat exchanger LPE-supplied
mounting bolt (PN: AV21049).
NOTE: The use of a washer in mounting the
heat exchanger to the radiator shroud, as shown
in the adjacent picture, is optional. These
washers are not included in the kit.
187. Using a 10mm socket and ratchet, install
the driver side heat exchanger mounting bolt.
The yellow arrow denotes the bolt’s location.
NOTE: The use of a washer in mounting the
heat exchanger to the radiator shroud, as shown
in the adjacent picture, is optional. These
washers are not included in the kit.
188. Install the Edelbrock-supplied heat
exchanger hose assembly on to the driver side of
the heat exchanger as shown.
189. Re-install the shroud and secure with the
seven (7) factory screws previously removed in
step 176.
