Page 50

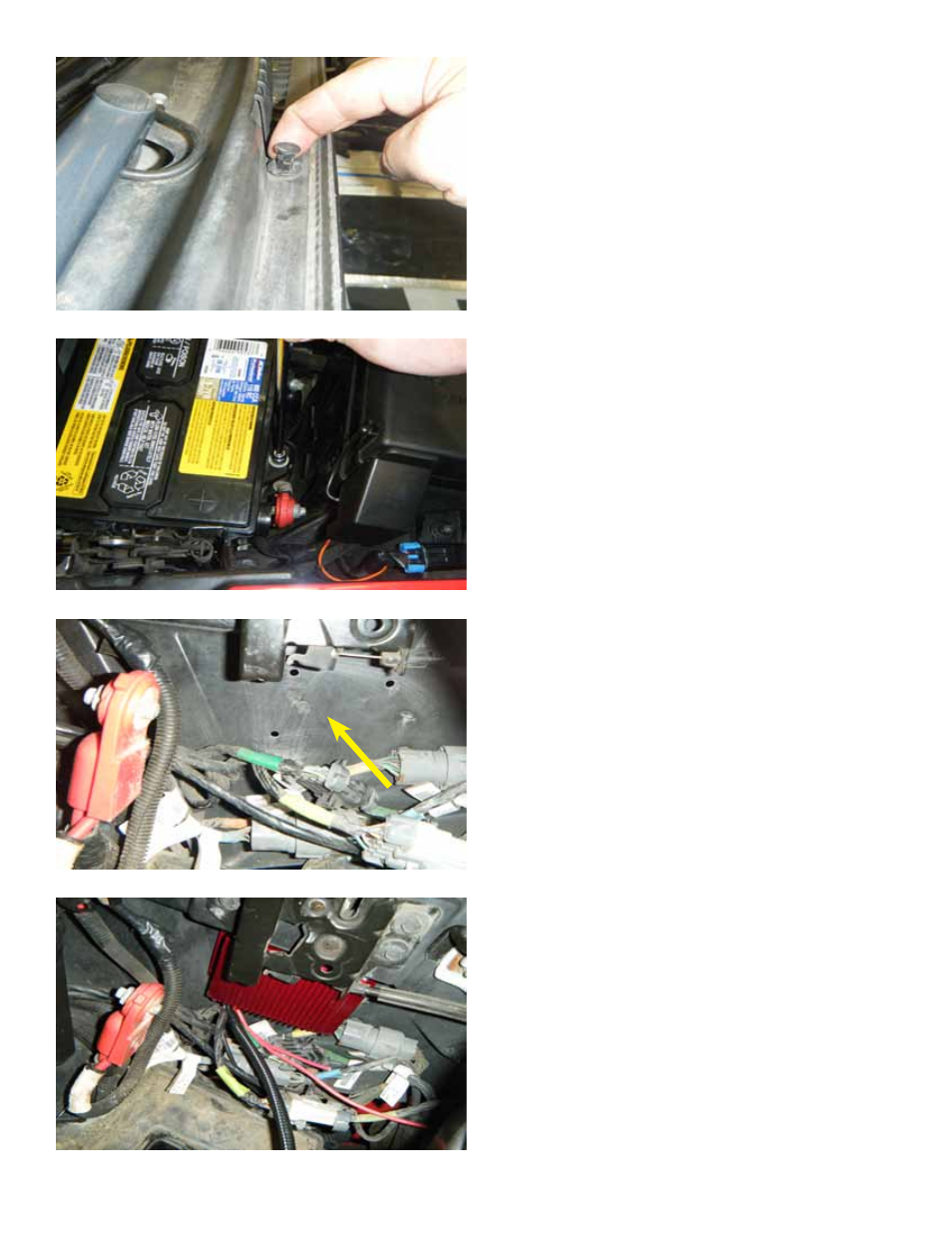

162. Re-install the retainer previously removed
from the cowl area into the hole from which the
battery surround retainer was removed.
163. Disconnect the positive battery cable,
remove the battery hold-down using a 13mm
socket, and lift the battery out of the vehicle.
164. Dislodge the wiring harness connectors in
forward upper corner of the fender, directly above
the battery tray to make room for the Boost-A-
Pump module.
165. Install the modified Boost-A-Pump using
the heavy duty hook and loop tape provided.
