Page 48

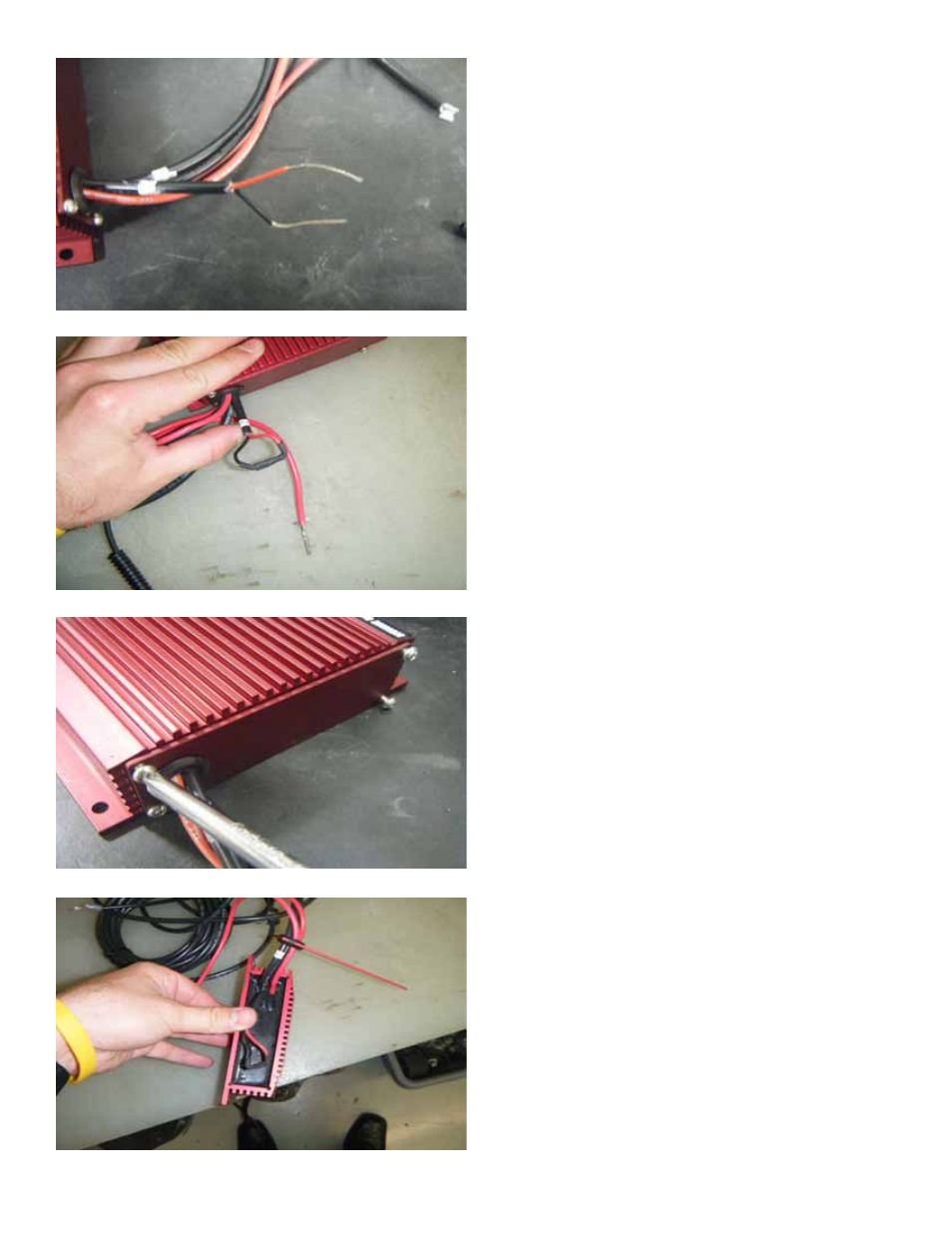

154. Strip the wire shield from the wire cut in
the previous step. Strip 3/8” of insulation off of the
smaller black and red wires.
155. Slide heat shink tube onto one of the
smaller wires that were exposed in the previous
step. Twist the exposed ends of the wires
together, then solder the black and red wires
together. Slide the heat shrink tube over the
solder joint and heat to shrink the insulation.
156. Remove the four (4) screws that secure
the side cover of the Boost-A-Pump module. The
correct side cover to remove is the side from
which the wires exit the module.
157. Pull the soldered black and red wires
through the hole and tuck them into the under the
side cover. Re-install the screws and tighten.
