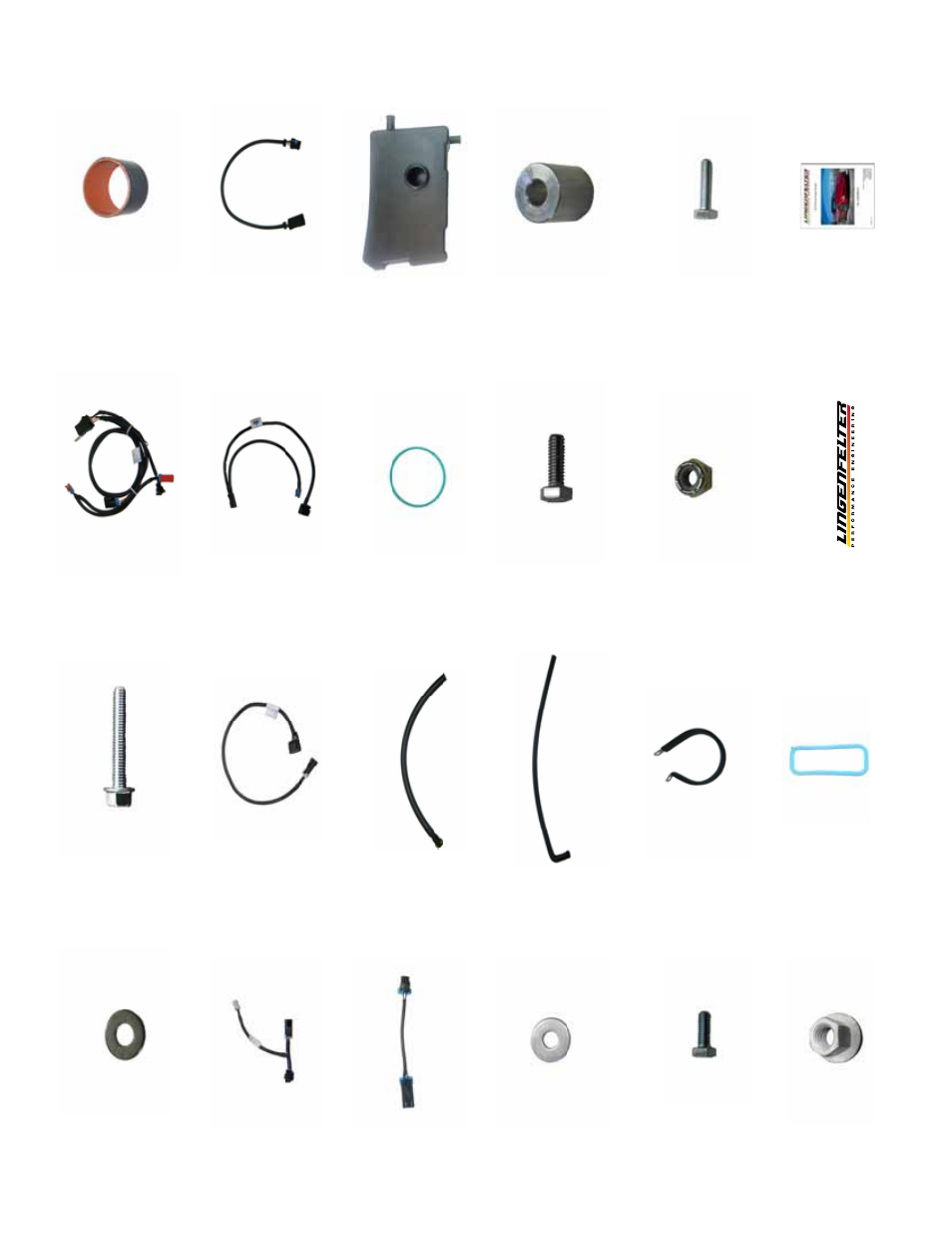

(1x) Intercooler pump harness
PN: XX04468-001
1
(1x)
Angle cut inlet hose
PN: XX04468-0022
(1x) MAP/IA
T adapter harness
PN: XX04468-0012
(1x) MAF adapter harness, 5 pin to 3pin
(1997-2000 C5’
s)
PN: XX04468-0013
(1x) MAF adapter harness, 5 pin to 5 pin
(2001-2004 C5’
s)
PN: XX04468-0014
(1x) C5
TPS 22” extension harness
PN: L480060197
(1x)
Throttle
body
motor
extensio
n
harness
PN: CE105320
(1x) PCV hose, 17” OAL
length
with 10mm quick connect
PN: EDL-15739-LPE
(1x) LS2 throttle body gasket
PN: 12576549
(1x) Intercooler fluid reservoir
PN: XX04468-0015
(1x) Fender washer for intercooler
reservoir bracket PN: 91
119A150
(1x) 90 degree 3/4” hose, 36” leg
PN: 9820
(1x) M6-1.00 x 16mm hex head bolt,
stainless
PN:47313
(2x)
Aluminum unthreaded
spacer
, 3/4” OD, 3/4” length
PN: 92510A804
(1x) 2 1/4”
Adel clamp
PN: DC-2036
(1x) 1/4-28 lock nut
PN: 63546
(1x) 1/4-28 x 1 bolt
PN: 36304
(1x) M8-1.25 x 20mm bolt
LN: 44454
(1x) LS1/LS6/LS2 intake mani
-
fold gasket kit (8 gaskets in kit)
PN: MS92438
(1x) Installation manual. binder
, and (4x)
templates
(2) Steering linkage nuts
GM PN: 03537772
M6-1.00 X 35 bolt
PN:
AV21049
(6) 1/4” Stainless steel washer
(PN: 30800)
(1x) LPE decal (PN: 920010000)
