Lingenfelter L250280197 Lingenfelter C5 Corvette E-Force Supercharger Install Kit v2.9 - Manual (Page 63)

Page 62

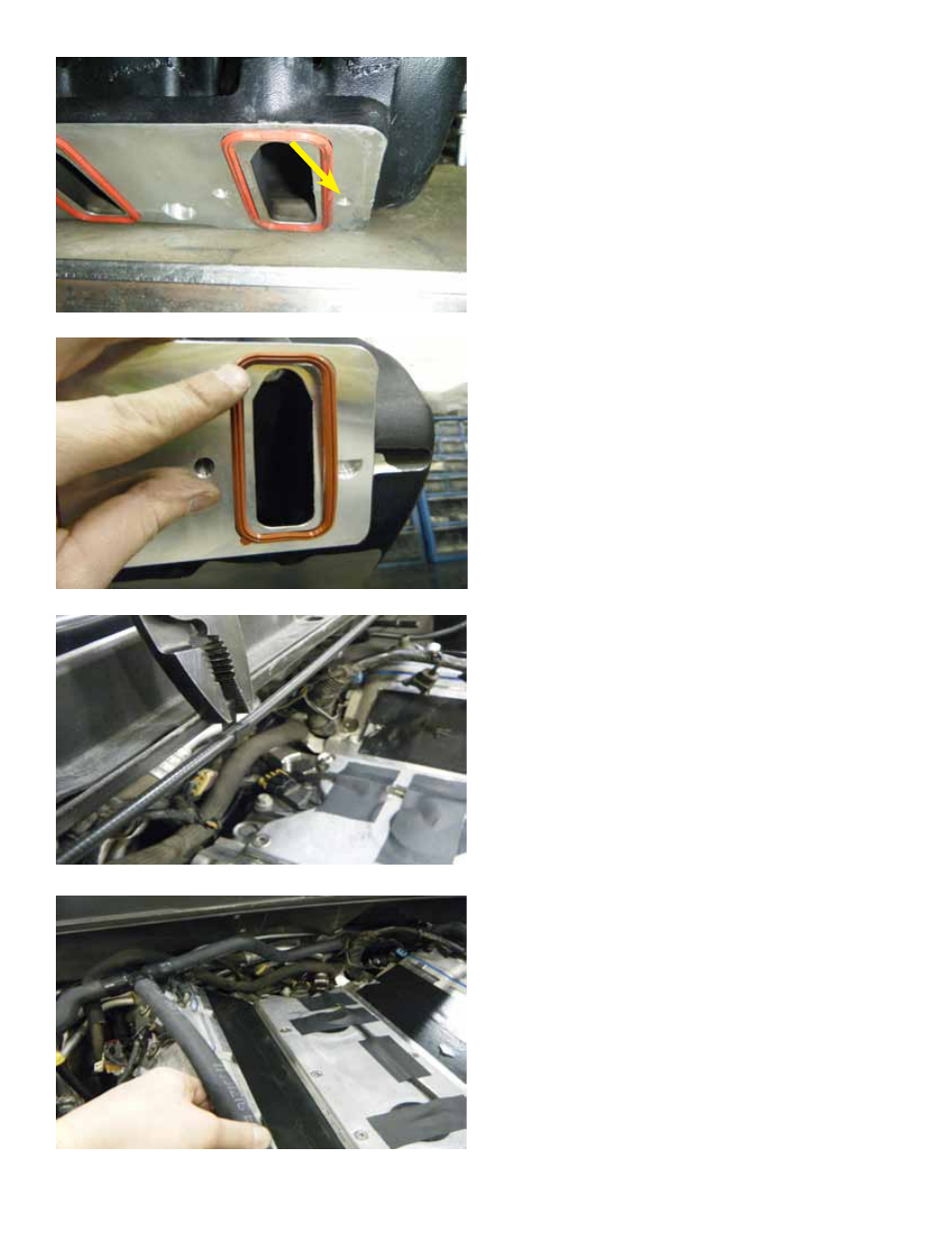

210. Using a Dremel or rotary tool, grind
clearance in the supercharger for the button
head bolts installed in steps 144-145. Mark
the locations needed to drill by putting black
ink on to the top of the button head bolts, then
putting the supercharger on to the engine. This
will leave black marks where the supercharger
needs to be modified.
NOTE: Depending on the supercharger
build date, this step may be skipped. If your
supercharger has this clearance, then this step
is not needed.
211. Install the supplied intake port gaskets
(PN: MS92438) into the supercharger base.
212. Using a pair of pliers, remove the two (2)
center hood latch cable supports.
213. Position the E-Force supplied intercooler
hose assembly along the firewall.
