Page 65

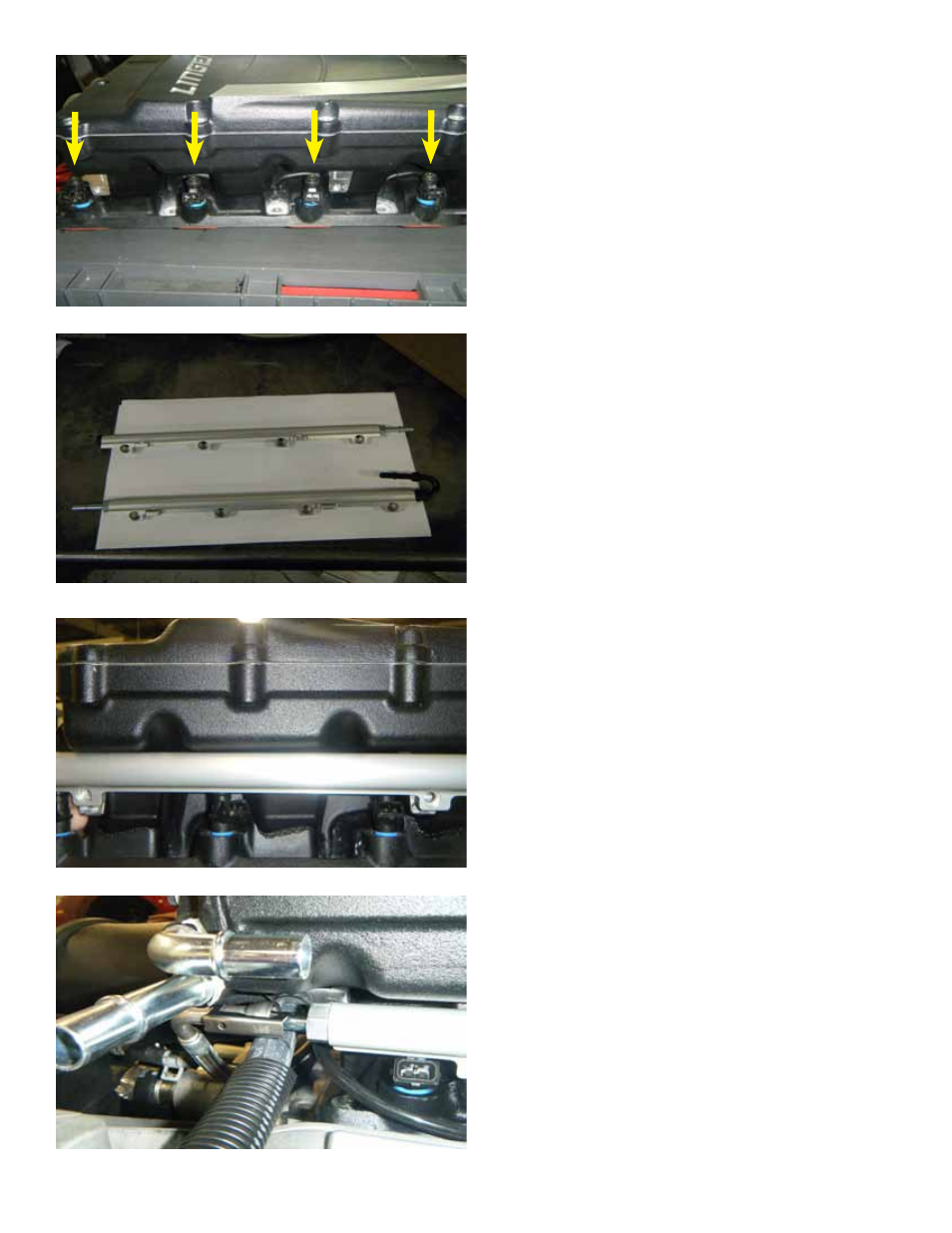

222. Lubricate the o-rings and install the
injectors into the supercharger.
CAUTION: Take care not to cut or damage the
o-rings when pushing the injectors into position.
223. Assemble the fuel rails as shown by the
illustration.
224. Lubricate the upper o-rings on the driver-
side injectors and slide the driver-side fuel rail on
top of them.
CAUTION: Take care not to cut or damage the
o-rings when pushing the injectors into position,
especially on the fuel side.
225. Push down while connecting the end of the
crossover line. Install the safety clip.
NOTE: Repeat steps 224-225 for the passenger-
side fuel rail.
