Lingenfelter L250280197 Lingenfelter C5 Corvette E-Force Supercharger Install Kit v2.9 - Manual (Page 29)

Page 28

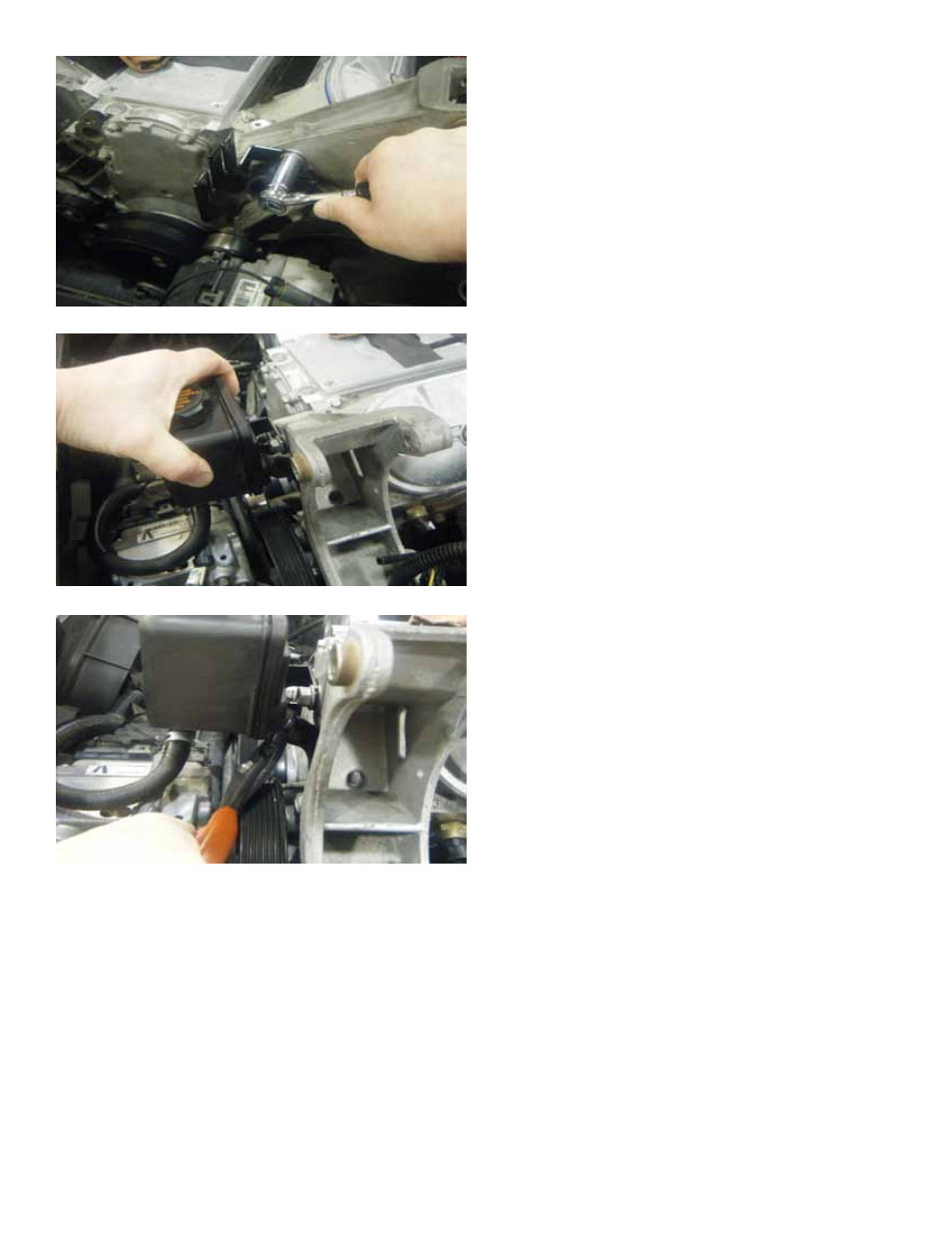

76. Using the two (2) bolts that were
removed in the previous step, install the new
power steering reservoir bracket supplied in the
Edelbrock kit.
77. Reinstall the power steering reservoir onto
the new bracket. Then, reattach the hose to the
bottom of the reservoir.
NOTE: The following steps detail the process required for installing a dowel pin between the
harmonic balancer and the crankshaft nose. The factory design uses a press-on balancer that does
not include an anti-rotational mechanism to prevent the balancer from loosening. The additional
torque of the E-Force supercharger increases the likelyhood of this occuring.
78. Reclamp the hose to the bottom of the
power steering reservoir.
