Supplies and Accessories

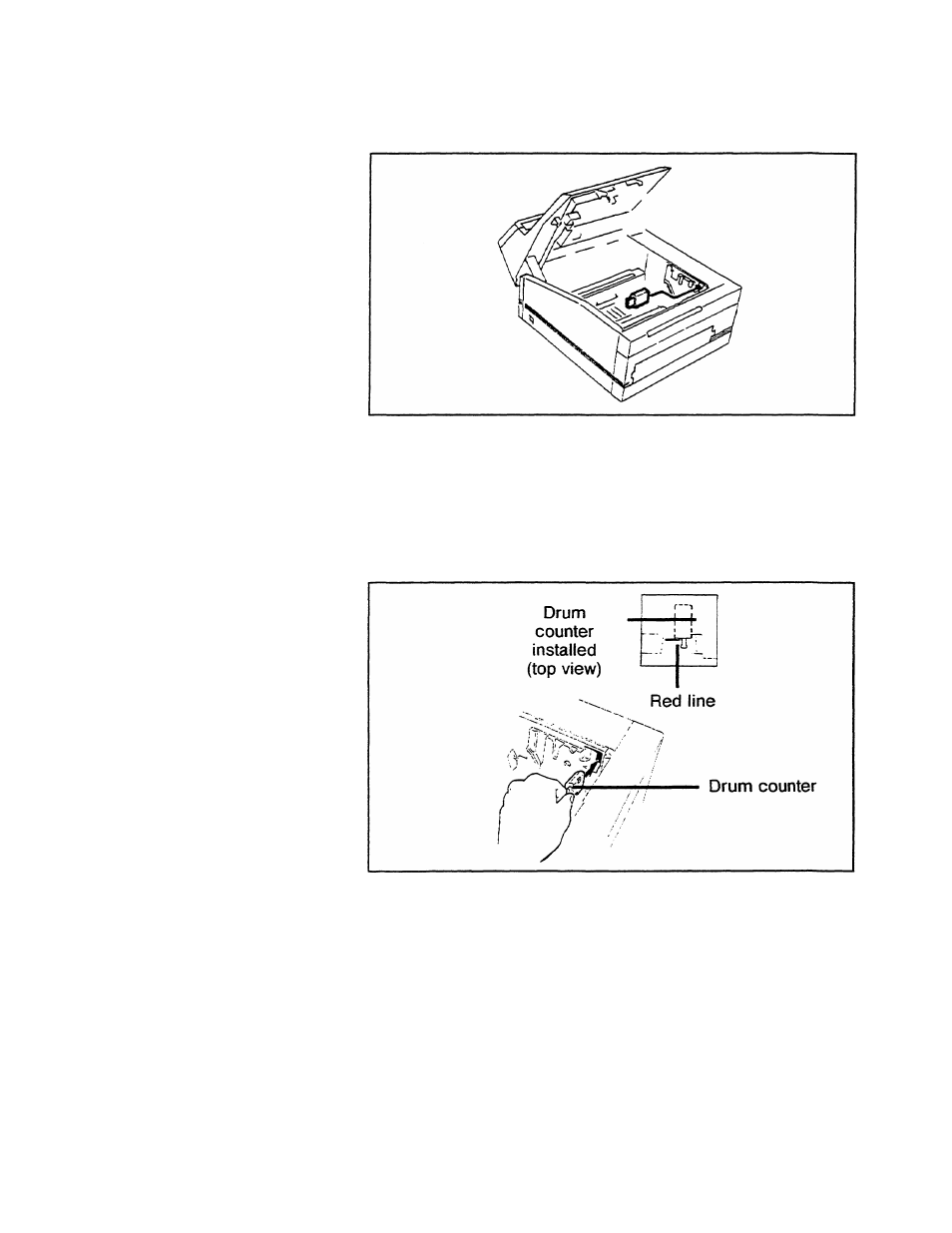

The following figure shows the drum counter in the machine:
8.
Holding the drum counter with the handle offset to the
right, insert the drum counter in the right rear corner of
the machine. Press in on the drum counter until the body
of the counter crosses the red line.
The following figure shows how to install the drum
counter:
11-18
