Supplies and Accessories
5.
Position the new drum unit with the green drum surface
facing the black toner roller on the developer assembly.
Without touching the green drum surface, hook the drum

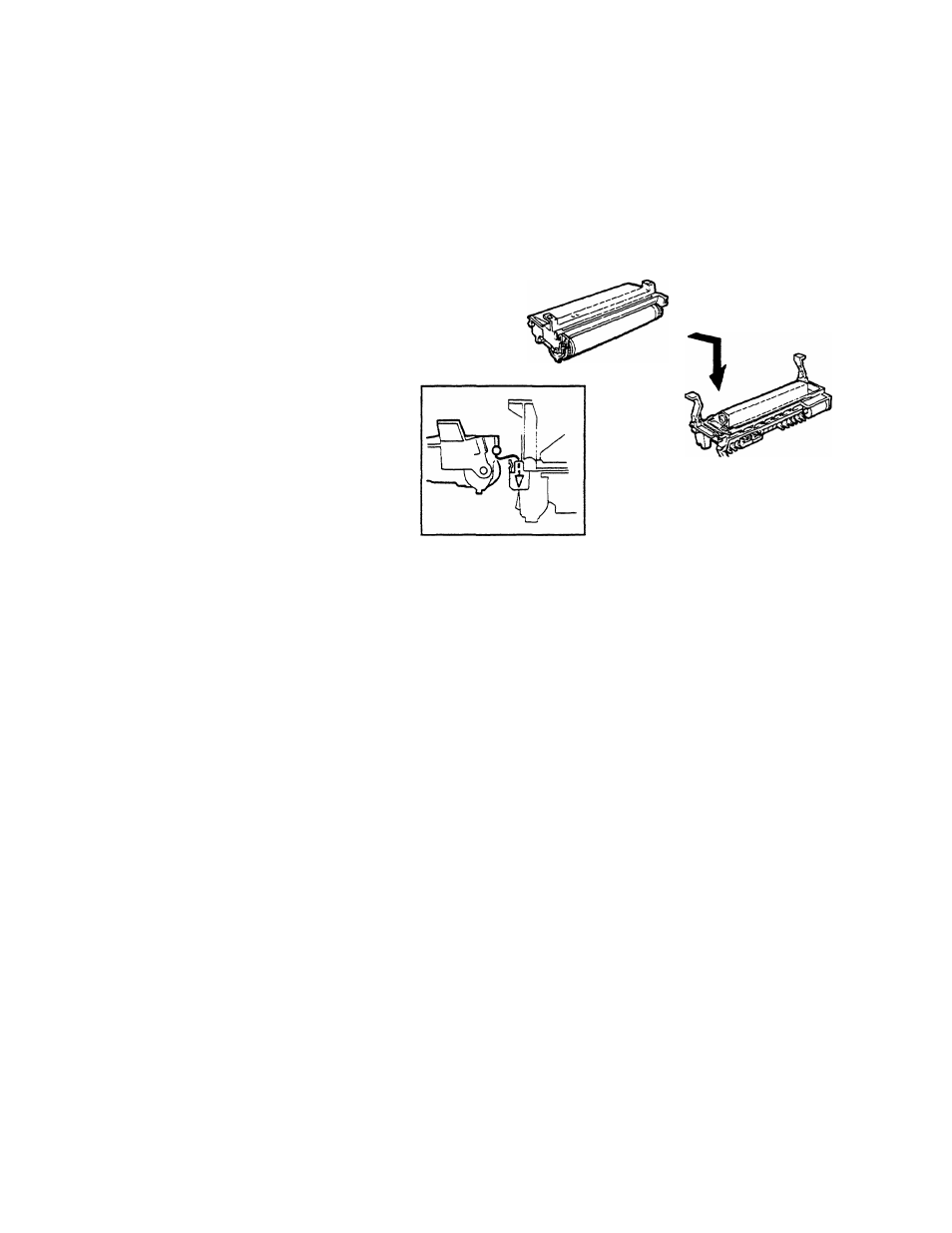

unit to the developer assembly. The following figure
shows how to join the drum unit and the developer
assembly:
Drum unit
Developer assembly
11-16
