Supplies and Accessories
15. Holding the developer assembly by the green handles,
align the three shafts on the developer assembly sides
with the slots in the machine frame. The developer
assembly handles align with the green arrow in the
machine. Lower the assembly into the machine.

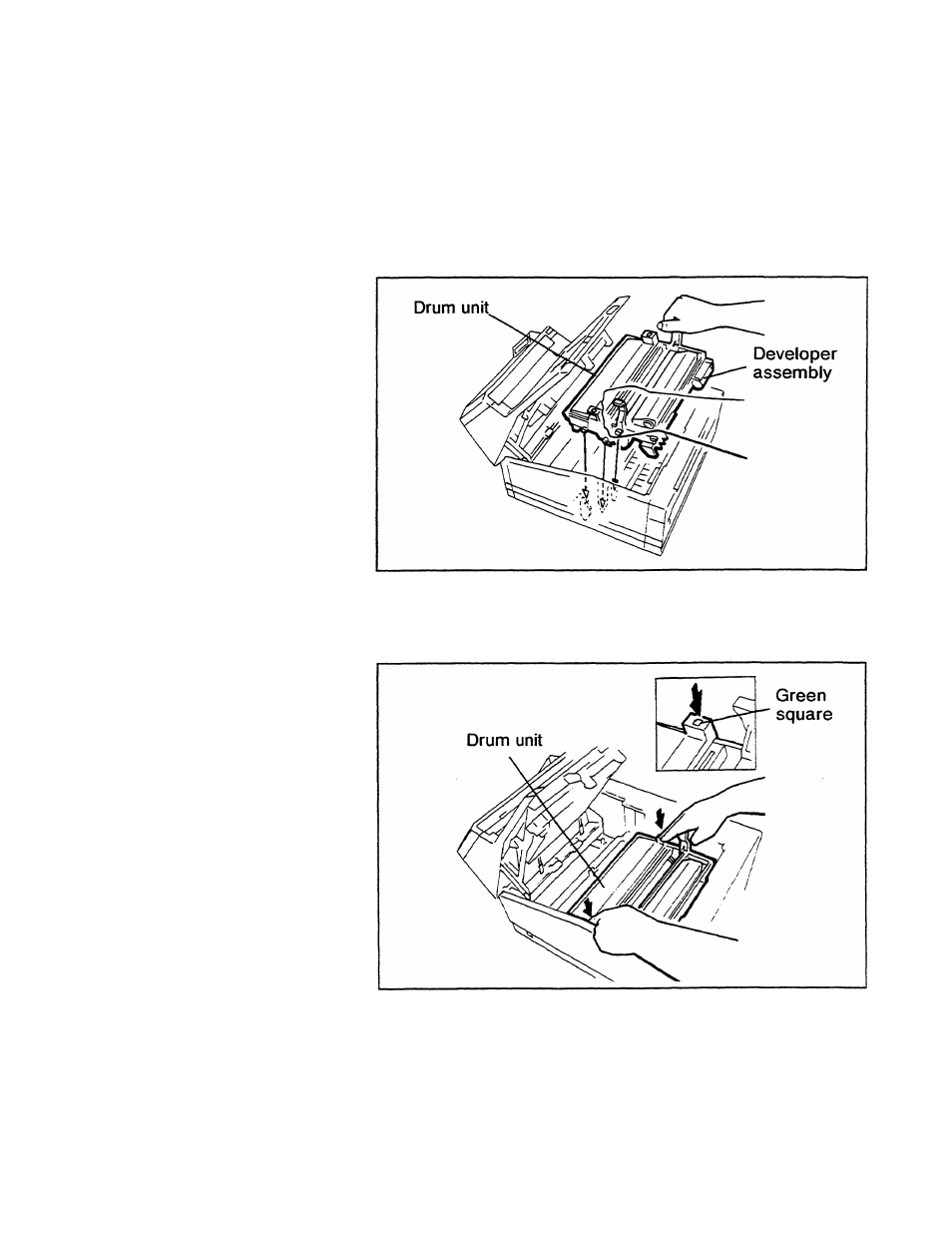

The following figure shows how the shafts on the
assembly align with the slots:
16. Press firmly on the green squares on the drum unit until
the drum unit clicks into place. The following figure
shows how to press the drum unit into place:
11-12
