Maintenance Procedures
5.

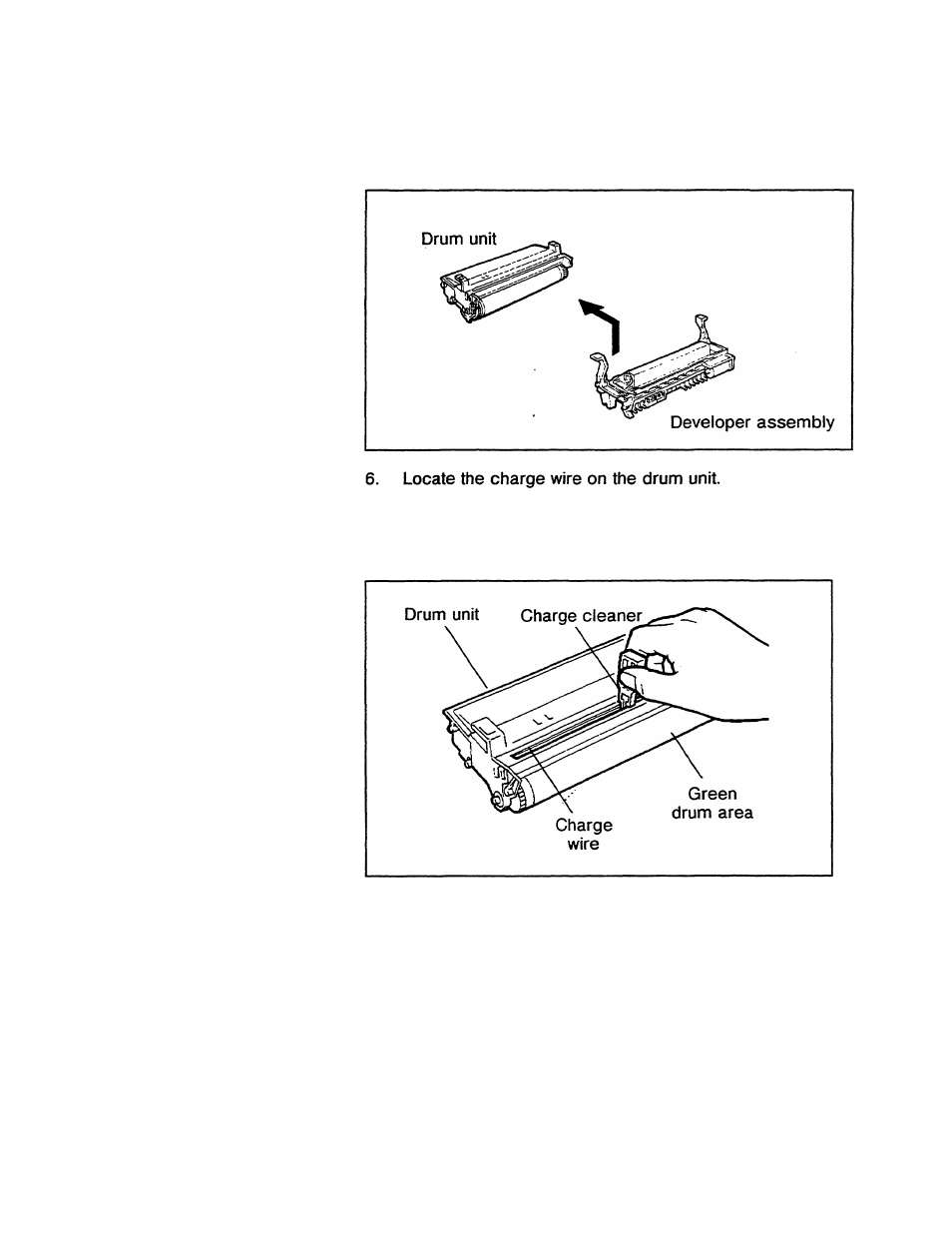

Separate the drum unit from the developer assembly.
Place the drum unit on a level surface. The following
figure shows the drum unit and the developer assembly:
7.
Use the charge cleaner to lightly wipe the charge wire on
the drum unit. The following figure shows how to clean
the charge wire:
10-25
