Matrix Pro 840Gs Console
The Matrix Pro 840GS is designed to provide years of service under typical agricultural operating conditions. A tight fitting enclosure,
combined with rubber covers for all connectors mean that typical dusty environments will not cause operational problems. While occasional
splashing of water will not damage the unit, the Matrix Pro 840GS is not designed for direct exposure to rain. Take care not to operate the
Matrix Pro GS in wet conditions.

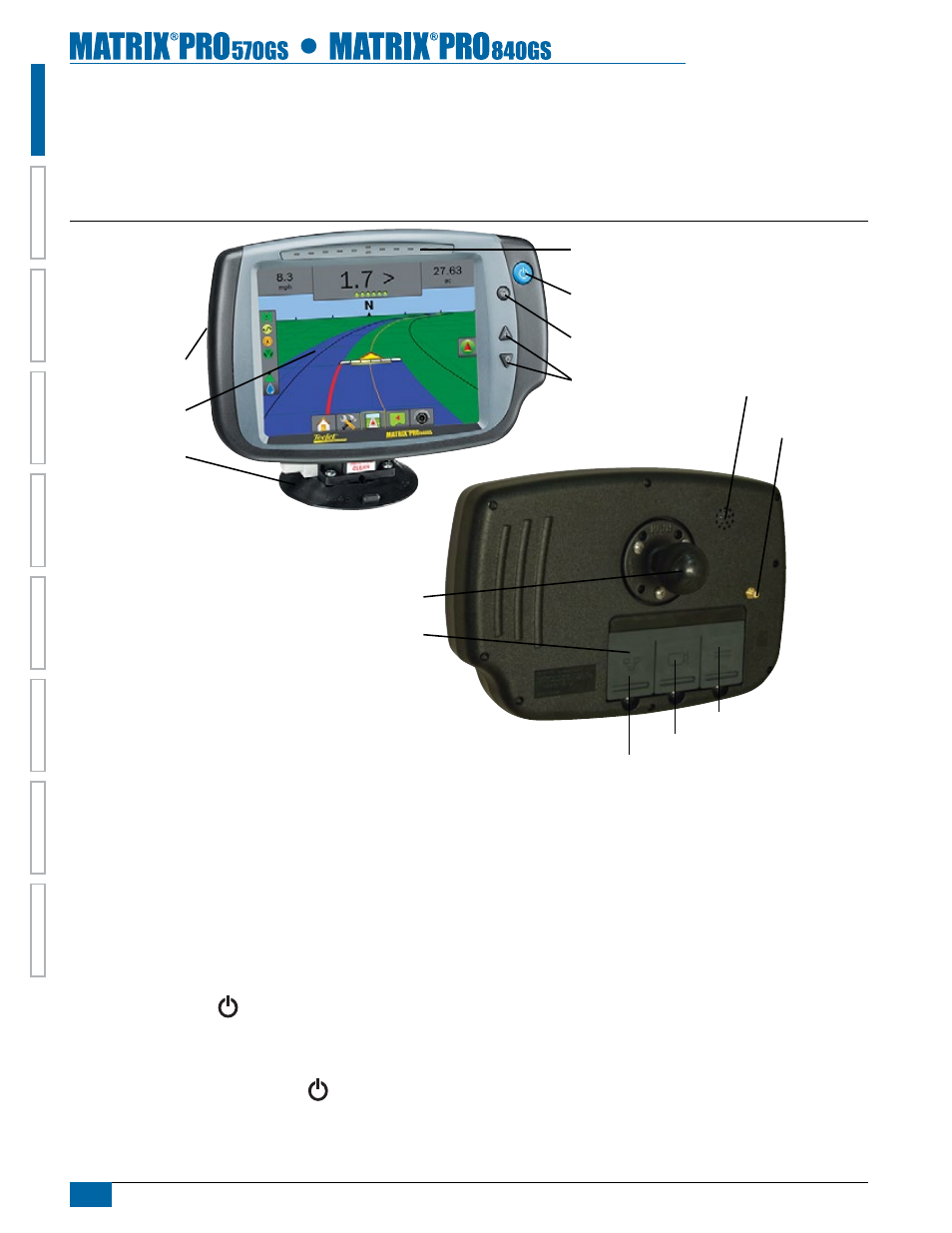

Figure 1-2: Matrix Pro 840GS Console Front and Back
Built In Lightbar
Power Button
USB Port
with Rubber Cover
Standard RAM Bracket
(assembly required)
Bright Touch Screen
Home Button
Zoom In/Out Buttons
Rubber Connector
Covers
GPS Antenna
Connection
Integrated RAM Mount
(assembly required)
Speaker
Speed Signal Connection
Camera Connection
Power Connection
RealView® Camera
The TeeJet Technologies RealView camera allows video images to be displayed on the Matrix Pro GS screen. The camera can be pointed
forward to enable RealView guidance over video, or it can be positioned to view other operational aspects of your equipment. The camera is
equipped with a flexible RAM mount, integral sun shade and provides infrared illumination, allowing clear video images even in dark conditions.
Additional information
All changes are saved automatically.
The console needs to be cycled off and back on when changing or
attaching equipment to the Matrix Pro GS system.
Power On
Press the POWER button to power on the console.
Upon power up, the Matrix Pro GS will begin its Start Up Sequence.
Power Off
Press and briefly hold the POWER button until a confirmation
screen acknowledges shut down mode.
WARNING! Wait 30 seconds before restarting the console after
powering off.
Start Up Sequence
The console takes approximately 40 seconds to power up. During
this time a series of screens will be displayed, LEDs will power
on and off and brightness levels will fluctuate. Once the power up
sequence has completed, the Home screen will appear.
Recommended Antenna Installation
The GPS antenna should be mounted as far forward as possible on
top of the cab on a metal surface of at least 10 cm square.
