CHAPTER 1 - sYsTEM OVERViEw
The Matrix Pro GS allows the management of multiple connected modules plus GPS mapping, Guidance, FieldPilot ® , BoomPilot ® and data
collection in a single console using CAN bus technology. This replaces multiple consoles in the cab with one robust system.
Product Upgrades Available
• FieldPilot ® auto steering
• UniPilot ® assisted steering
• BoomPilot ® automated boom section control
• Tilt Gyro Module
• Video Selection Modules for up to 8 cameras
• External GPS receiver or antenna upgrades
• Fieldware
® Link enhanced data organization application
• Pressure Sensor Interface Kit for Droplet Size Monitor
SYSteM COMPOnentS
Matrix Pro 570Gs Console
The Matrix Pro 570GS is designed to provide years of service under typical agricultural operating conditions. A tight fitting enclosure,
combined with rubber covers for all connectors mean that typical dusty environments will not cause operational problems. While occasional
splashing of water will not damage the unit, the Matrix Pro 570GS is not designed for direct exposure to rain. Take care not to operate the
Matrix Pro GS in wet conditions.

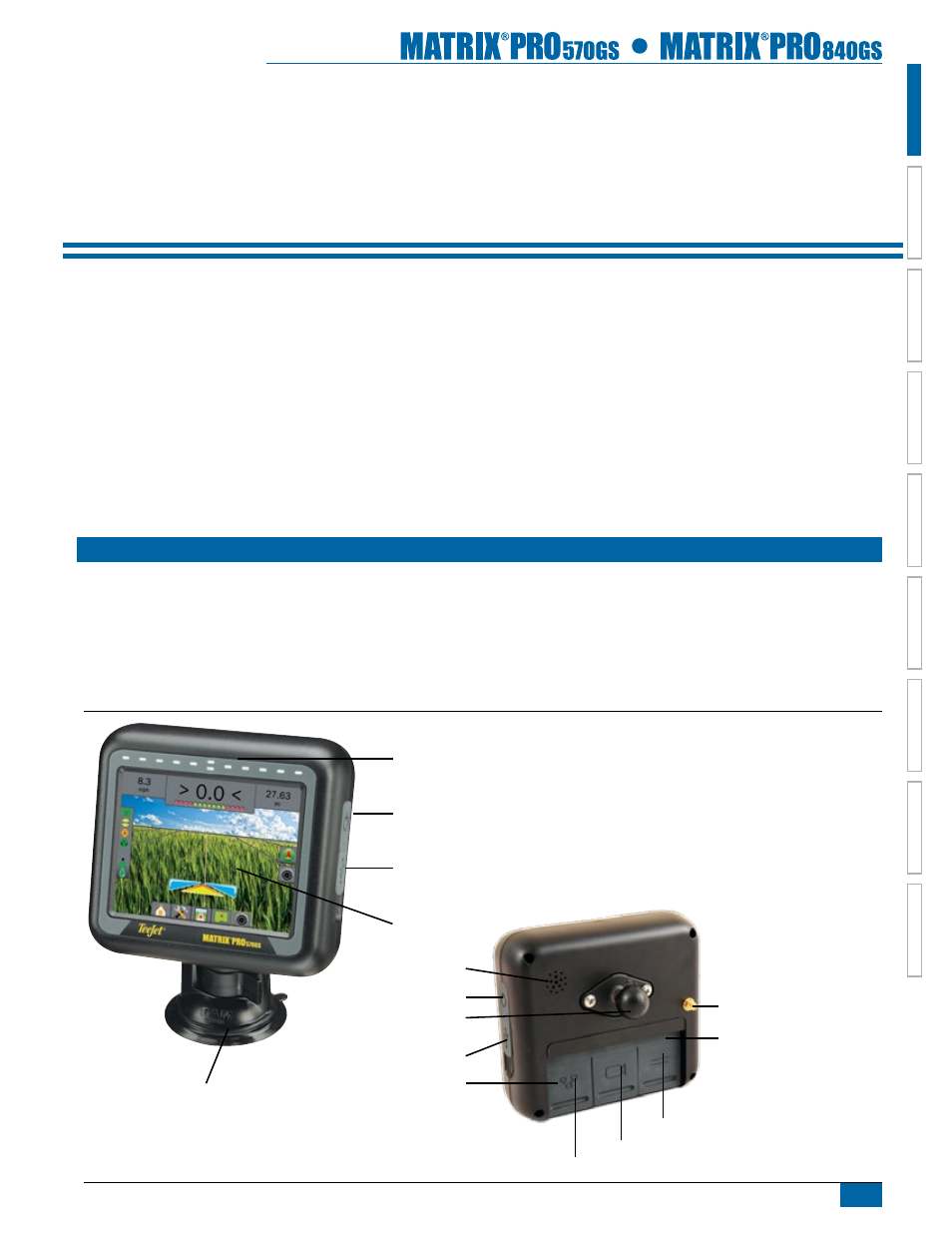

Figure 1-1: Matrix Pro 570GS Console Front and Back
Power Button
USB Port with Rubber Cover
Rubber Connector Covers
GPS Antenna Connection
Integrated RAM Mount
(assembly required)
Speaker
Recessed Connectors
Speed Signal Connection
Camera Connection
Power Connection
Built In Lightbar
Power Button
USB Port with Rubber Cover
Standard RAM Bracket
(assembly required)
Bright Touch Screen
