CHAPTER 7 - GPs
GPS is used to configure GPS Type, GPS Port and PRN as well as to view GPS status information.
GPs
NOTE: These settings are required for assisted/auto steering and tilt
sensor operation, as well as proper implement operation.
1. Press CONFIGURATION side tab .
2. Press
GPS
.
3. Select from:
►GPS Type – sets to accept GPS source transmissions
►GPS Port – sets (D)GPS communication port
►GPS Status Information – displays information regarding GGA/
VTG (Data Rates), Number of Satellites, HDOP, PRN, GGA
Quality, GPS Receiver, Receiver Version and UTM Zone
►Program – allows direct programming of the GPS receiver
through a command line interface
►PRN – selects the SBAS PRN that will provide GNSS
differential correction data
►Alternate PRN – when PRN is not automatic, a second
alternate SBAS PRN will provide a second set of GNSS
differential correction data
4. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.

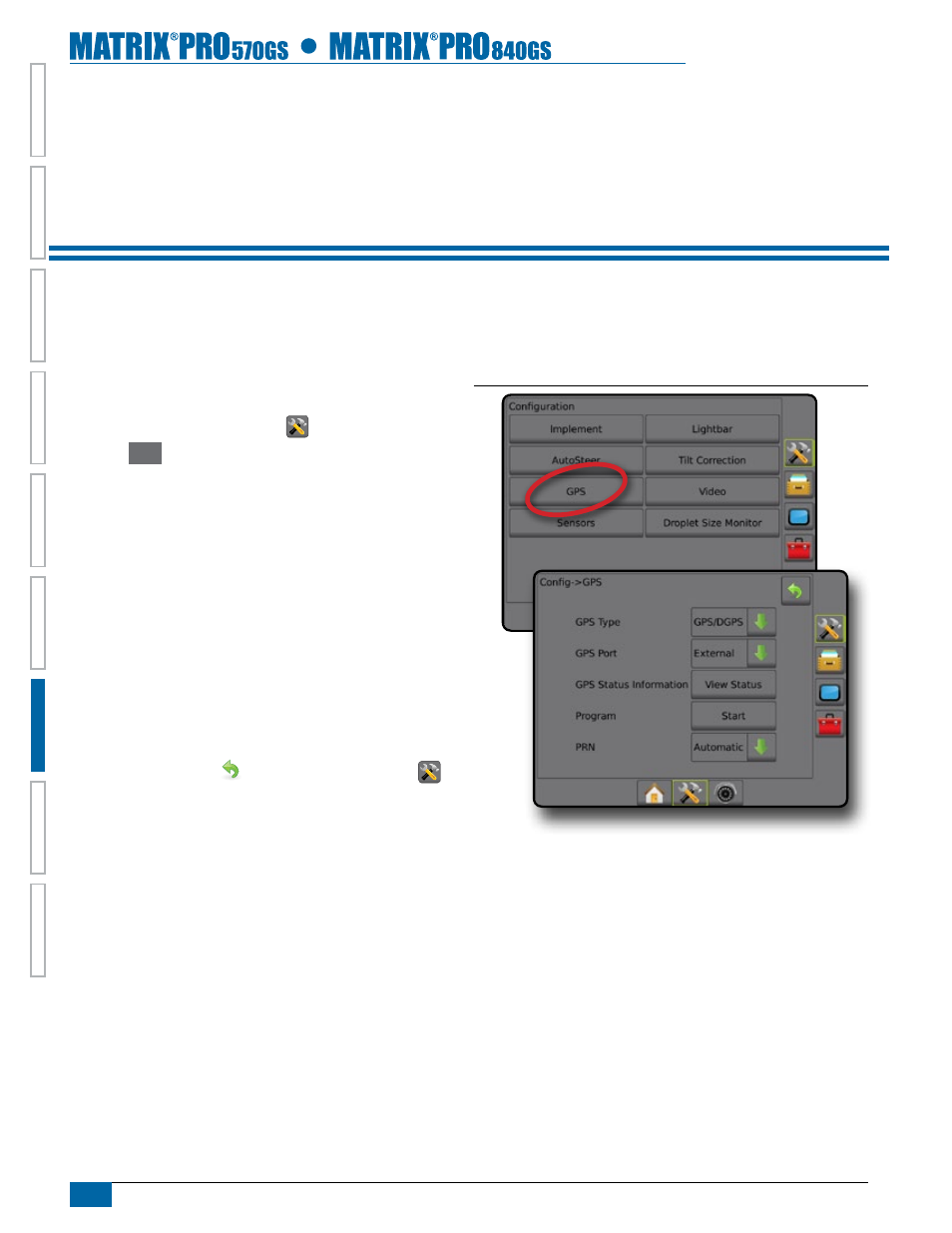

Figure 7-1: GPS
