TeeJet Spreader Implement Type
1. Select
Spreader
implement type on Implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Setup Type – used to select TeeJet spreader type
►Antenna to Disks  – used to enter the distance from the
GPS antenna to the delivery disks or dispersal mechanism.
Range is 0.0 to 164.04 feet / 0.0 to 50.0 meters.
►Overlap – used to select the amount of overlap allowed when
the sections are turned on and off while using automatic boom
section control
►Delay On Time – used to set the time when each section will
switch on when entering an area that has not been applied. If
the application turns on too soon when entering an unapplied
area, decrease the Delay On Time. If the application turns
on too late, increase the Delay On Time. Range is 0 to 10
seconds.
►Delay Off Time – used to set the time when each section will
switch off when entering an area that has been applied. If the
application turns off too soon when entering an applied area,
decrease the Delay Off Time. If the application turns off too
late, increase the Delay Off Time. Range is 0 to 10 seconds.
►Spread Offset Distance  – used to enter the offset
distance from the disks, or dispersal mechanism, to where
product initially hits the ground on Section 1. Range is 0.0 to
246.06 feet / 0.0 to 75.0 meters.
►Section Offset  – used to enter the offset distance from
the leading edge of Section 1 (the Spread Offset line) to the
leading edge of each section. Section 1 is always 0.0 feet /
meters. All other sections can be a different distances.
Sections are numbered from left to right while facing in the
machine's forward direction. Range is 0.0 to 246.06 feet / 0.0
to 75.0 meters.
►Spread Length  – used to enter the length of the application
section for each section. Each section can be a different
length. Sections are numbered from left to right while facing in
the machine's forward direction. Range is 0.0 to 246.06 feet /
0.0 to 75.0 meters.
4. Press RETURN arrow to return to the Implement screen
or CONFIGURATION side tab to return to the main
Configuration screen.

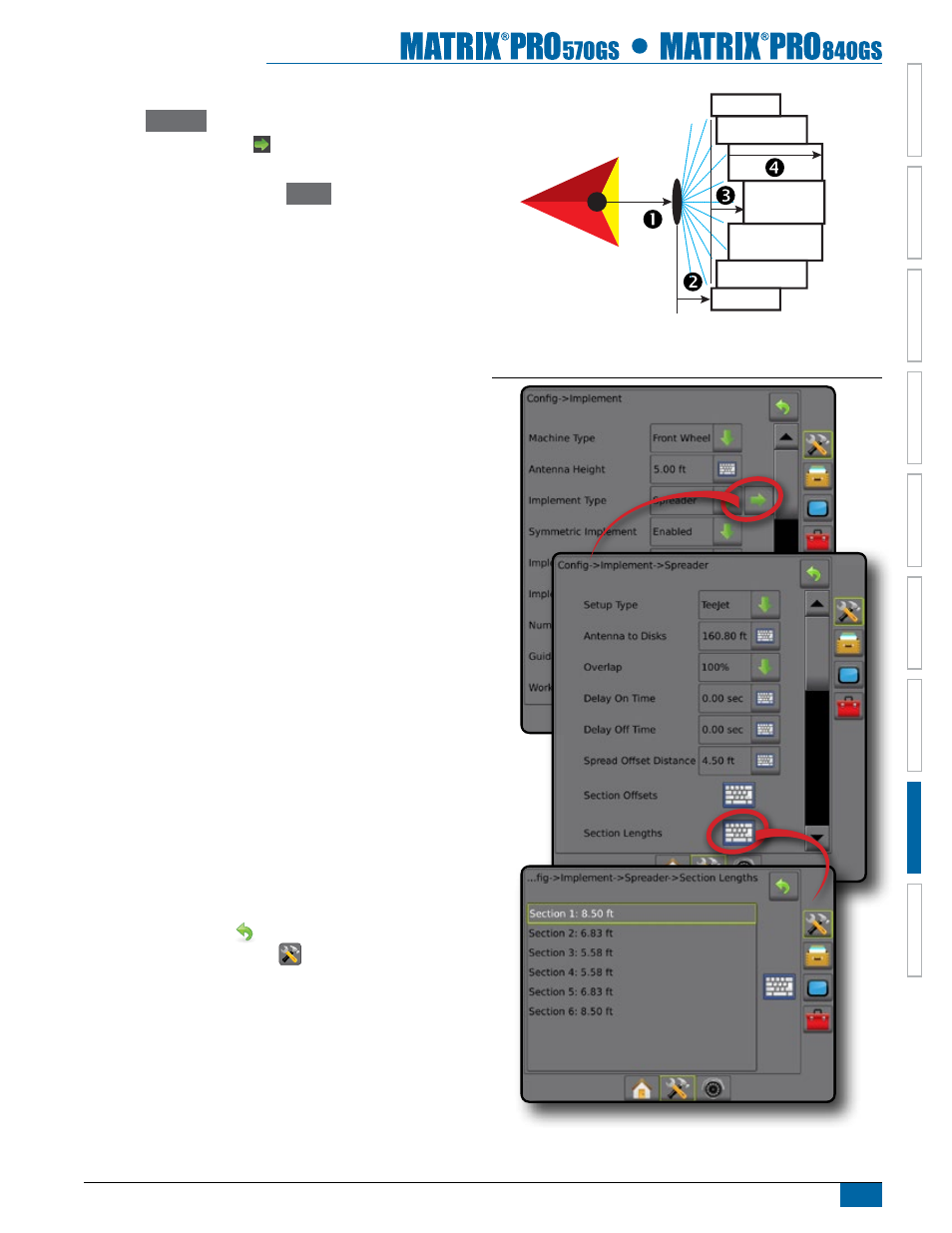

Figure 8-17: Implement Setup Options in TeeJet Spreader Mode
