CHAPTER 5 - sYsTEM sETUP
System Setup is used to configure the console, the machine and its implements. Four side tabs access options for Machine/Implement
Configuration, Data Management, Console Settings and Tools.
OVerView
Four side tabs access setup options for:
Machine/Implement Configuration
• Implement (Straight, Spreader, Staggered)
• Lightbar
• Auto Steer (Valve Setup, Steering Settings, Valve Test, Valve
Diagnostics, Steering Wheel Sensor, Steering Angle Sensor)
• Tilt Correction
• GPS
• Video Configuration
• Sensors (Pressure Monitor)
• Droplet Size Monitor
Data Management
• Job Data (Transfer, Manage)
• Reports
• Options: Job Mode
• Machine Settings (Transfer, Manage)
Console Settings
• Display
• Cultural
• Audio Volume
• Demo Mode
• About System Information
Tools (Calculator, Units Converter)

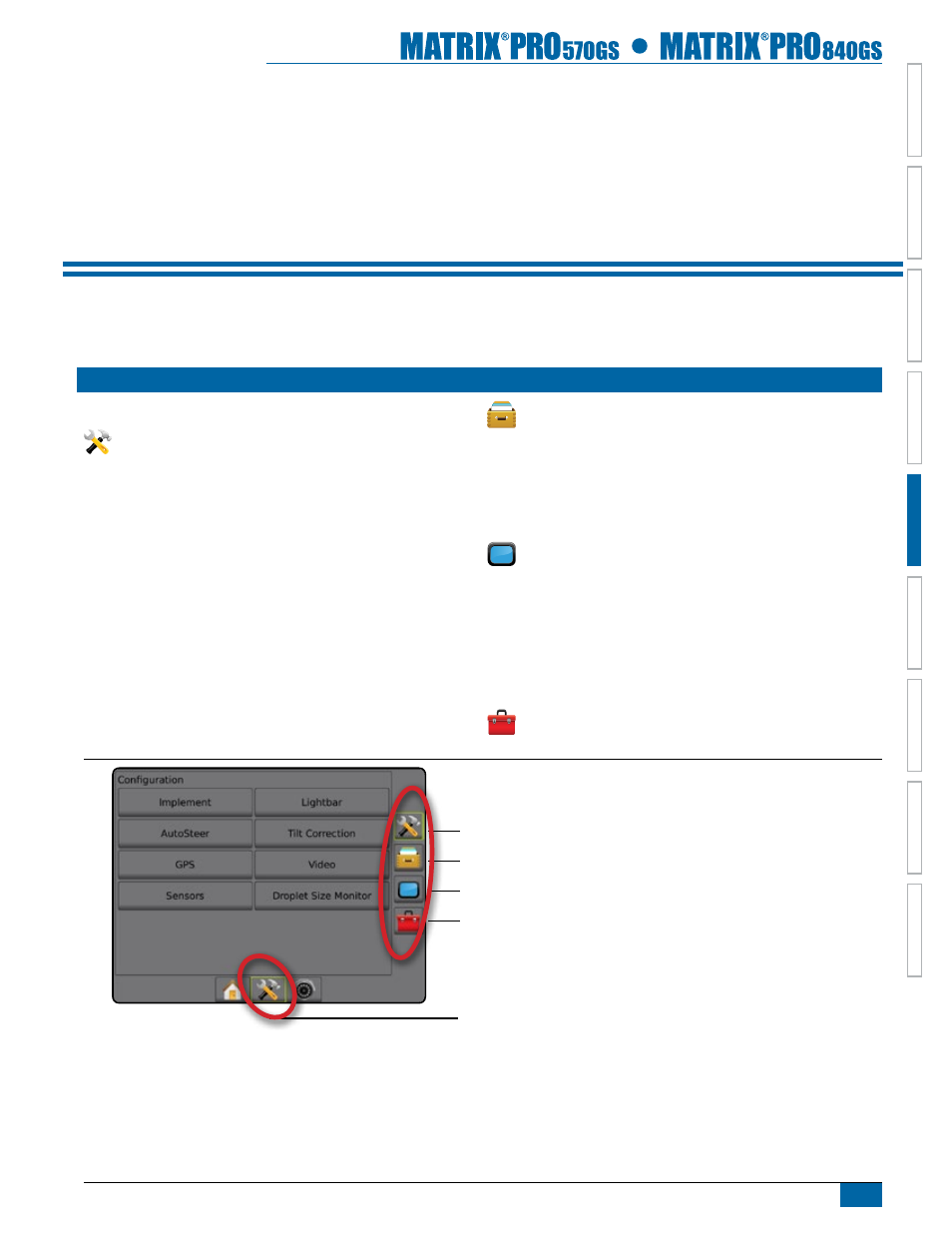

Figure 5-1: Setup Options
Configuration side tab
Data Management side tab
Console Settings side tab
Tools side tab
Unit Setup bottom tab
Side Tabs
