Straight Implement Type
1. Select
Straight
implement type on Implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Boom Offset Direction – used to select whether the boom is
located in front of or behind the GPS antenna as the vehicle
moves in a forward direction
►Antenna to Boom Distance  – used to enter the distance
from the GPS antenna to the boom. Range is 0.0 to
164.04 feet / 0.0 to 50.0 meters.
4. Press RETURN arrow to return to the Implement screen
or CONFIGURATION side tab to return to the main
Configuration screen.

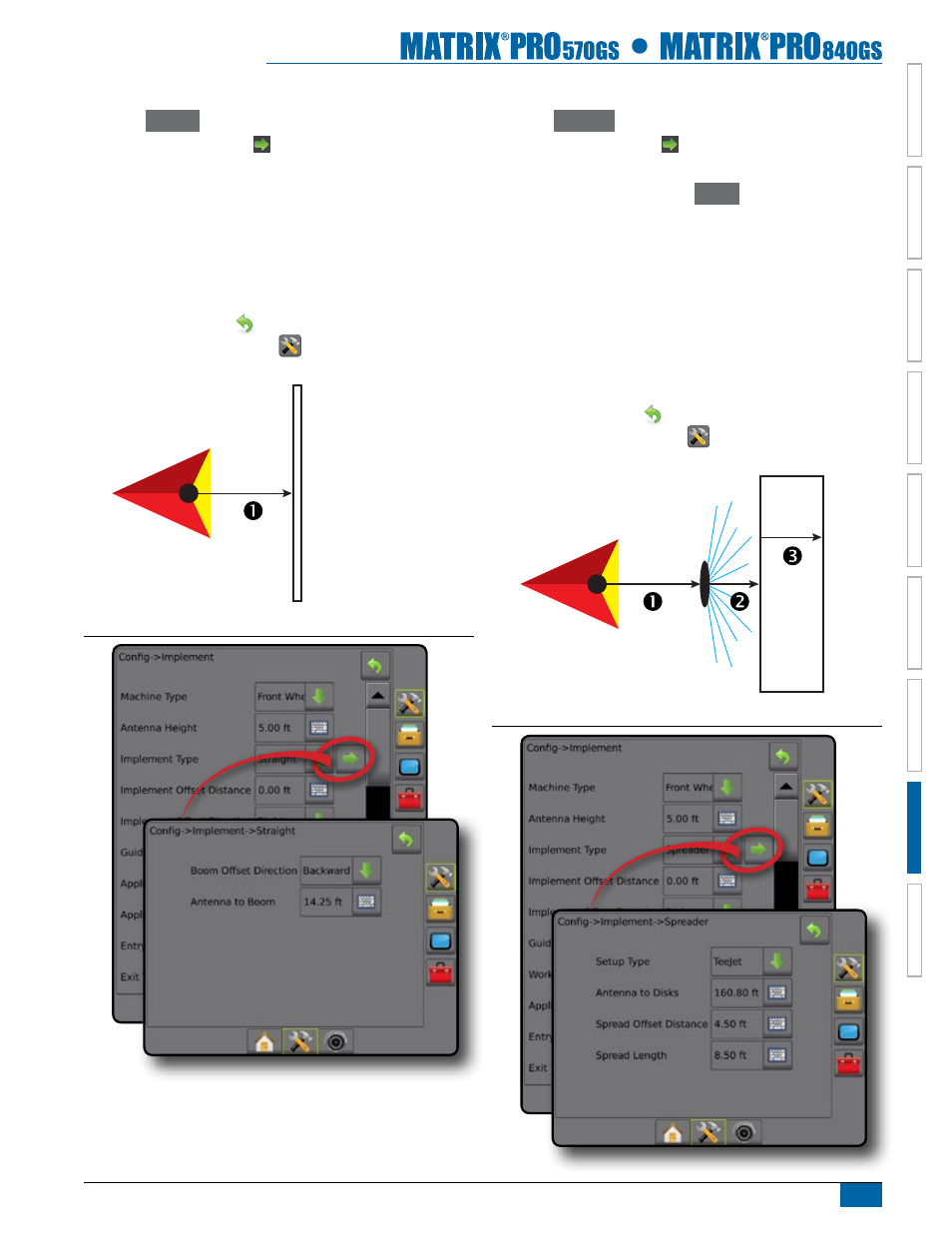

Figure 8-10: Implement Setup Options in Straight Mode
TeeJet Spreader Implement Type
1. Select
Spreader
implement type on Implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Setup Type – used to select TeeJet spreader type
►Antenna to Disks  – used to enter the distance from the
GPS antenna to the delivery disks or dispersal mechanism.
Range is 0.0 to 164.04 feet / 0.0 to 50.0 meters.
►Spread Offset Distance  – used to enter the offset distance
from the disks, or dispersal mechanism, to where product
initially hits the ground. Range is 0.0 to 246.06 feet / 0.0 to
75.0 meters.
►Spread Length  – used to enter the length of application for
the section. Range is 0.0 to 246.06 feet / 0.0 to 75.0 meters.
4. Press RETURN arrow to return to the Implement screen
or CONFIGURATION side tab to return to the main
Configuration screen.
Figure 8-11: Implement Setup Options in TeeJet Spreader Mode
