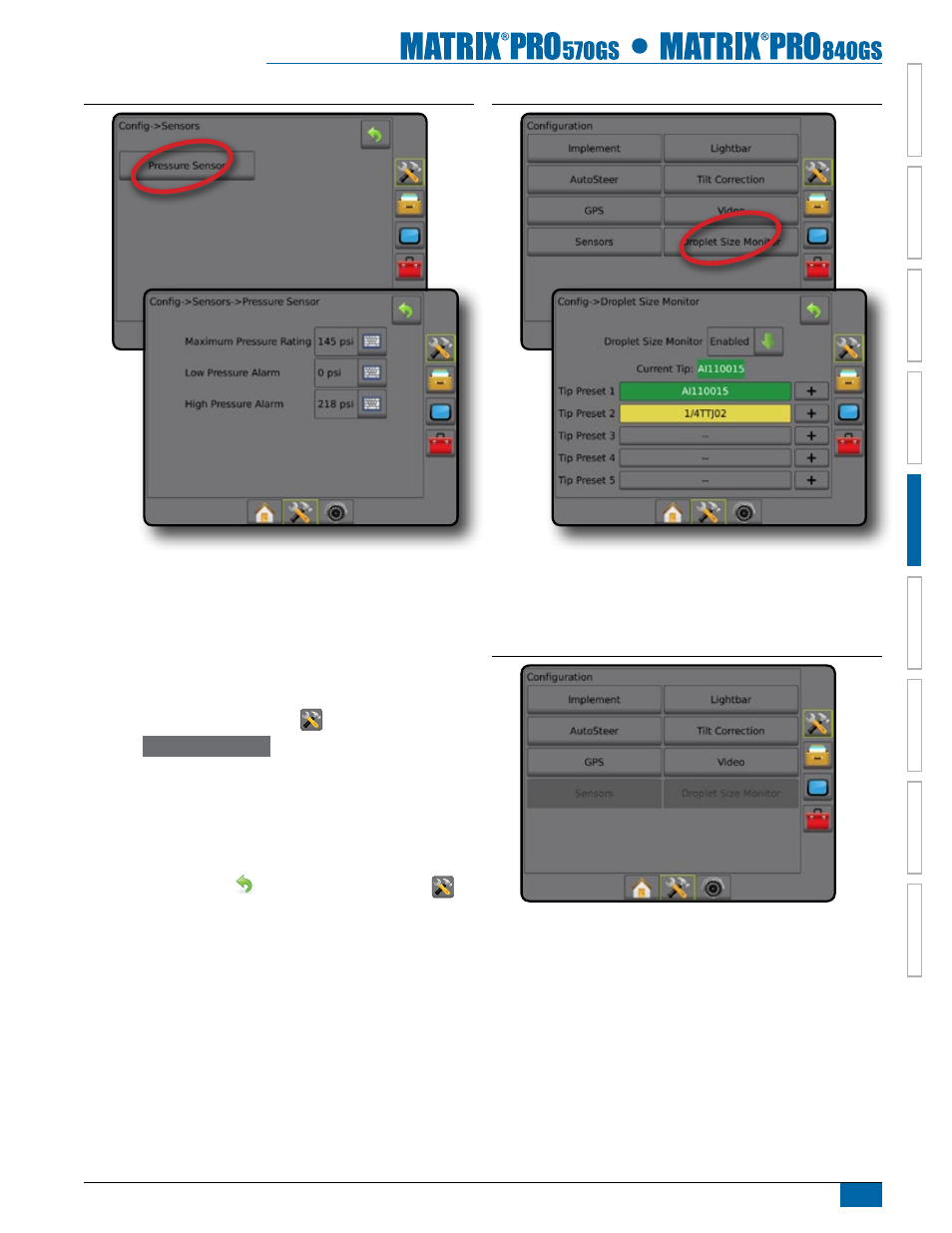

Figure 5-20: Pressure Sensor
droplet size Monitor
When a Pressure Sensor Interface Kit is present, Droplet Size
Monitor is used to enable/disable the Droplet Size Monitor (DSM),
preset up to five (5) tips and select the current tip.
For detailed setup instructions, refer to the Droplet Size Monitor
chapter in this manual.
1. Press CONFIGURATION side tab
.
2. Press
Droplet Size Monitor
.
3. Select if droplet size monitor is enabled or disabled.
4. When enabled, select from:
►Tip Presets – selects up to five (5) tips for quick recall
►Current Tip – selects the current tip for determining droplet
size information
5. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.
Figure 5-21: Droplet Size Monitor
Droplet Size Monitor Unavailable
If a Pressure Sensor Interface Kit is not installed, setup options will
not be available.
Figure 5-22: Pressure Sensor Interface Kit Not Detected
