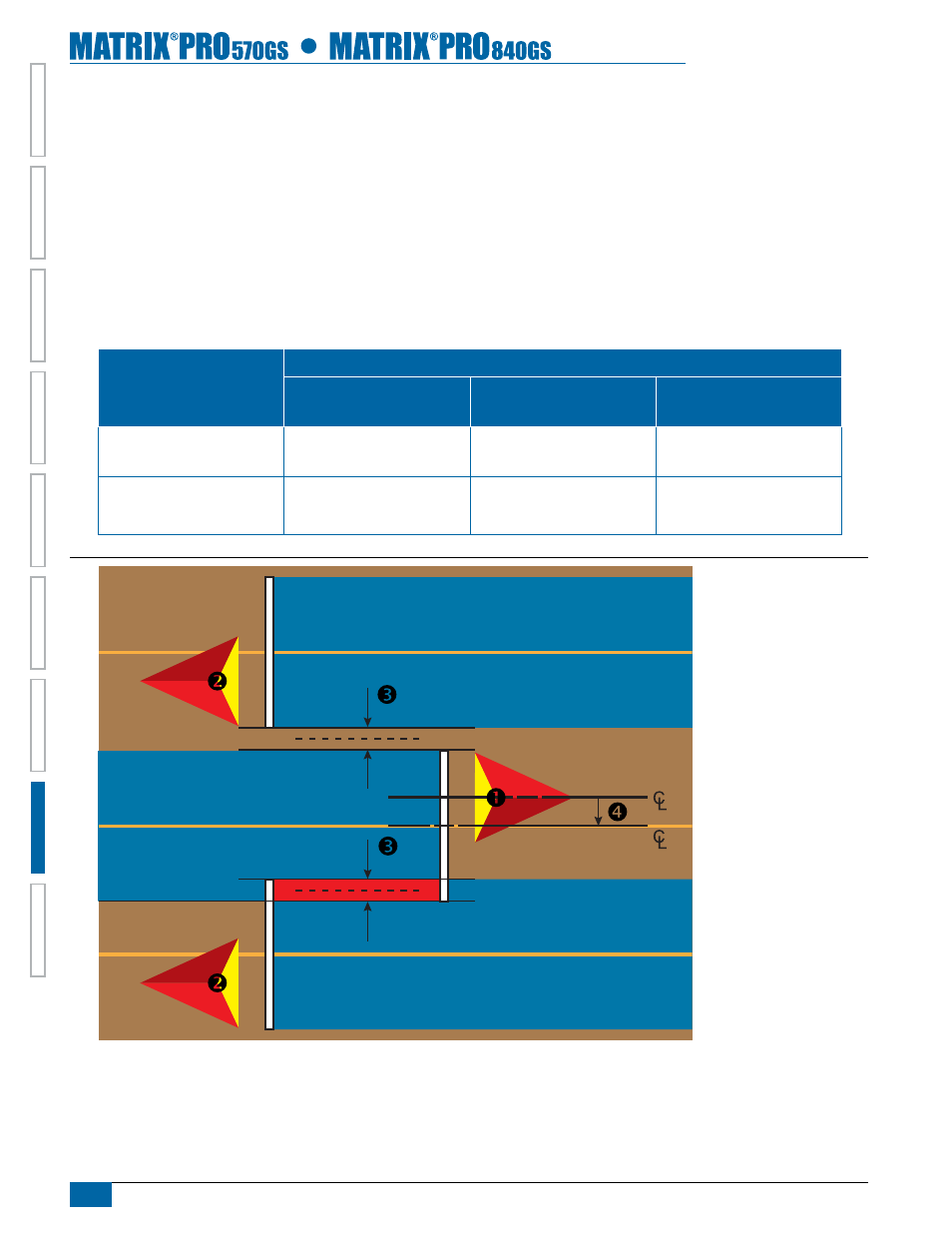

Implement Offset Adjustment
To calculate an implement offset adjustment using adjacent guidelines:
1. Create a straight AB line.
2. With assisted/auto steering engaged, drive pass
 as if you were operating the implement and place flags at the outside edges of the
implement.
3. Turn around and engage assisted/auto steering on pass  on the adjacent AB guideline. Place additional flags at the outside edges of
the implement or stop while on the AB guideline next to the flags you placed on pass  .
4. Measure the difference  between the flags of pass  and pass  .
5. Divide the measured distance  in half. This difference will be the offset adjustment.
6. Increase or decrease the offset distance  as needed dependent on where the field application overlap occurs and the current
implement offset direction setting.
Field Application
Current Offset Settings
Offset Direction = Left Offset Direction = Rght
Offset Direction = Right
Offset Distance = 0 m
Overlap on the right of pass  or
Gap on the left of pass 
Increase distance offset value Decrease distance offset value Increase distance offset value
Overlap on the left of pass  or
Gap on the right of pass 
Decrease distance offset value Increase distance offset value
Change to implement offset direction
to left and increase distance offset
value
Figure 8-24: Implement Offset Dstance and Direction
