Staggered Implement Type
1. Select
Staggered
implement type on Implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Section 1 Offset Direction – used to establish if Section 1
(the zero-point of the Section Offsets) is located in front of or
behind the GPS antenna as the vehicle moves in a forward
direction
►Antenna to Section 1 Distance  – used to enter the
distance from the GPS antenna to Section 1 (the zero-point
of the Section Offsets). Range is 0.0 to 164.04 feet / 0.0 to
50.0 meters.
►Overlap – used to select the amount of overlap allowed when
the sections are turned on and off while using automatic boom
section control
►Delay On Time – used to set the time when each section will
switch on when entering an area that has not been applied. If
the application turns on too soon when entering an unapplied
area, decrease the Delay On Time. If the application turns
on too late, increase the Delay On Time. Range is 0 to 10
seconds.
►Delay Off Time – used to set the time when each section will
switch off when entering an area that has been applied. If the
application turns off too soon when entering an applied area,
decrease the Delay Off Time. If the application turns off too
late, increase the Delay Off Time. Range is 0 to 10 seconds.
►Section Offsets  – used to set the offset distance from
Section 1 (the Antenna to Section 1 Distance line) to each
section. Positive offset value will move the section behind
Section 1. Negative offset value will move the section in
front of Section 1. Section 1 is always 0 feet / meters. All
other sections can be a different distances. Sections are
numbered from left to right while facing in the machine's
forward direction. Range is -246.06 to 246.06 feet / -75.0 to
75.0 meters.
4. Press RETURN arrow to return to the Implement screen
or CONFIGURATION side tab to return to the main
Configuration screen.

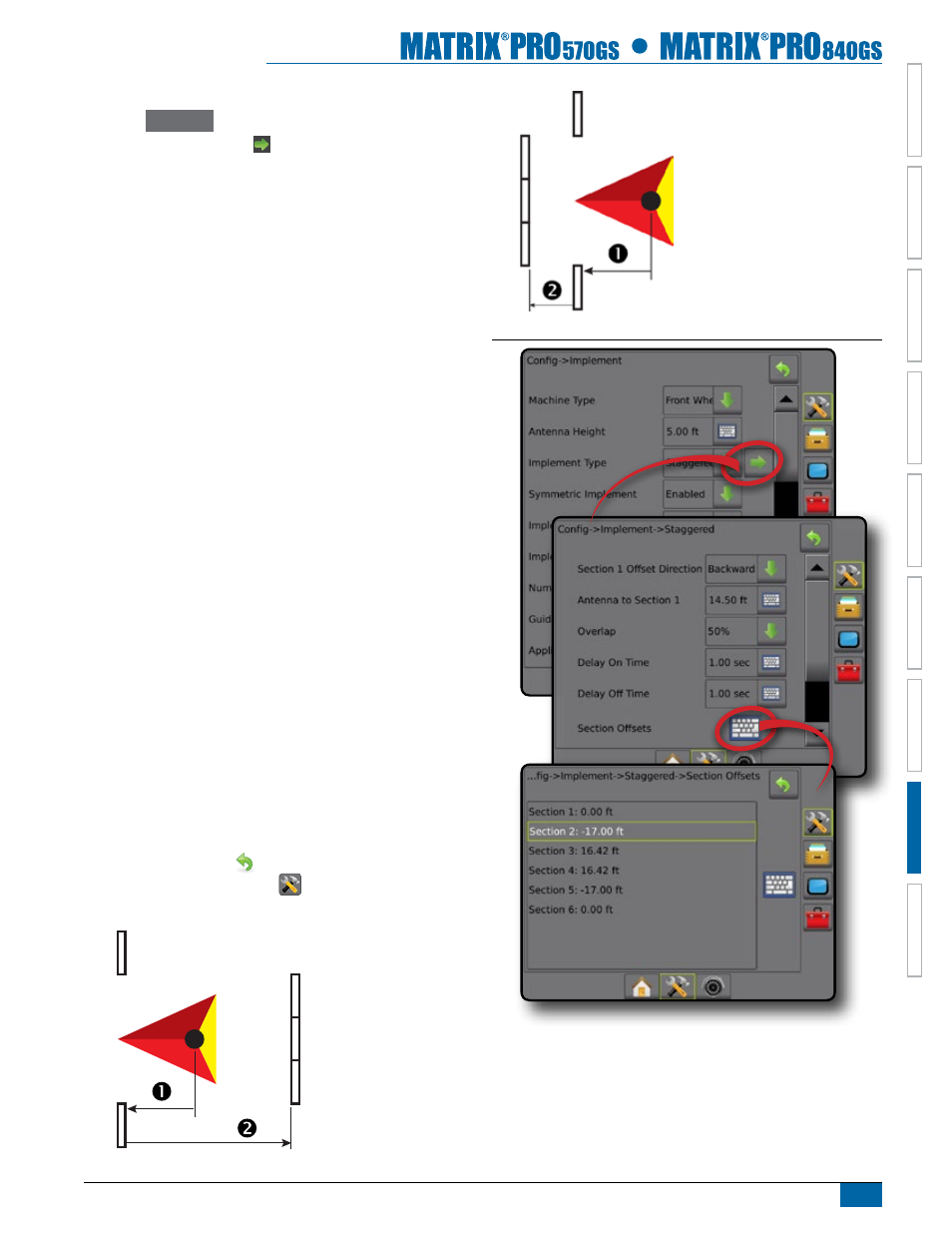

Figure 8-20: Implement Setup Options in Staggered Mode
