SMartCaBle Or SeCtiOn driVer MOdUle SetUP
SmartCable or Section Driver Module Setup is used when a
SmartCable or Section Driver Module (SDM) is on the system. The
boom or delivery area can be entered as up to 15 sections. Each
section can vary in width and in spreader mode, can vary in length.
Additional options available with a SDM include Application Overlap,
Application Delay and Staggered Mode.
NOTE: If a SmartCable or Section Driver Module (SDM) is not
present, refer to "Single Section Setup" to view setup steps.
1. Press CONFIGURATION side tab .
2. Press
Implement
.
3. Select from:
►Machine Type – used to select the type of machine that most
closely represents your machine.
►GPS Antenna Height – used to measure the height of the
antenna from the ground. Range is 0.0 to 32.81 feet / 0.0 to
10.0 meters.
►Implement Type – used to select the layout of the sections for
the applied product location.
►Symmetric Implement Layout – used to establish if sections
are paired and therefore share the same width, offset and
length values
►Implement Offset Distance  – used to enter the distance
from the centerline of the machine to the center of the
implement. Range is 0 to 32.8 feet / 0 to 10.0 meters.
NOTE: For detailed setup instructions, refer to the Implement
Offset section of this chapter.
►Implement Offset Direction  – used to enter the direction
from the centerline of the machine to the center of the
implement while facing in the machine's forward direction
►Number of Implement Sections – used to select the number of
implement sections
►Guidance Width – used to enter the distance between the
guidelines. Range is 3.28 to 246.06 feet / 1.0 to 75.0 meters.
►Application Width [Straight Implement Type or Staggered
Implement Type] – used to enter the total width of all sections
of the implement. Each section can be a different width.
Sections are numbered from left to right while facing in the
machine's forward direction. Range for each section is 0.0 to
246.06 feet / 0.0 to 75.0 meters. Total for all sections must be
greater than 3.28 ft / 1.0 meters.
►Working Width [Spreader Implement Type] – used to enter
the total width of all sections of the implement. Each section
can be a different width. Sections are numbered from left to
right while facing in the machine's forward direction. Range for
each section is 0.0 to 246.06 feet / 0.0 to 75.0 meters. Total
for all sections must be greater than 3.28 ft / 1.0 meters.
4. Press NEXT PAGE arrow to set up specific implement
options.

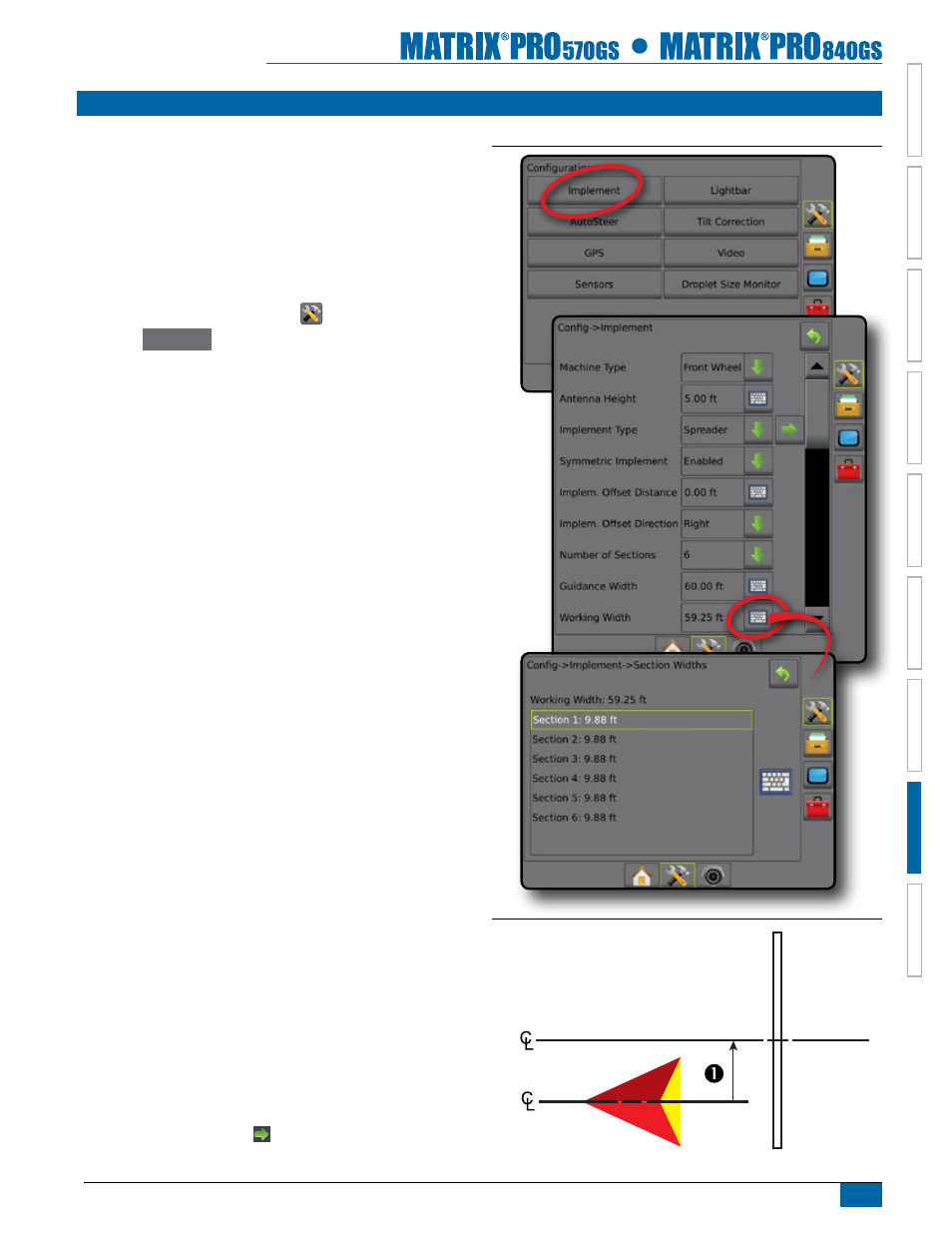

Figure 8-13: Implement – SmartCable or Section Driver Module
Figure 8-14: Implement Offset Distance and Direction
