BOOMPilOt
single section
If a SmartCable or Section Driver Module (SDM) is not
present, BoomPilot is used to turn all booms on or off. Only
one Boom Section width will be illustrated and the Status
Bar will have no icon.
NOTE: If a SmartCable or Section Driver Module (SDM) is present,
please refer to SmartCable or SDM Section for more
information.
Console Only
To switch application off or on using the console:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab to
display navigation options.
2. Press BOOMPILOT icon .
NOTE: GPS is unavailable when the BOOMPILOT icon is grey
.
In areas where application is not desired:
◄Press BOOMPILOT icon .
Press the BOOMPILOT icon again to resume application.

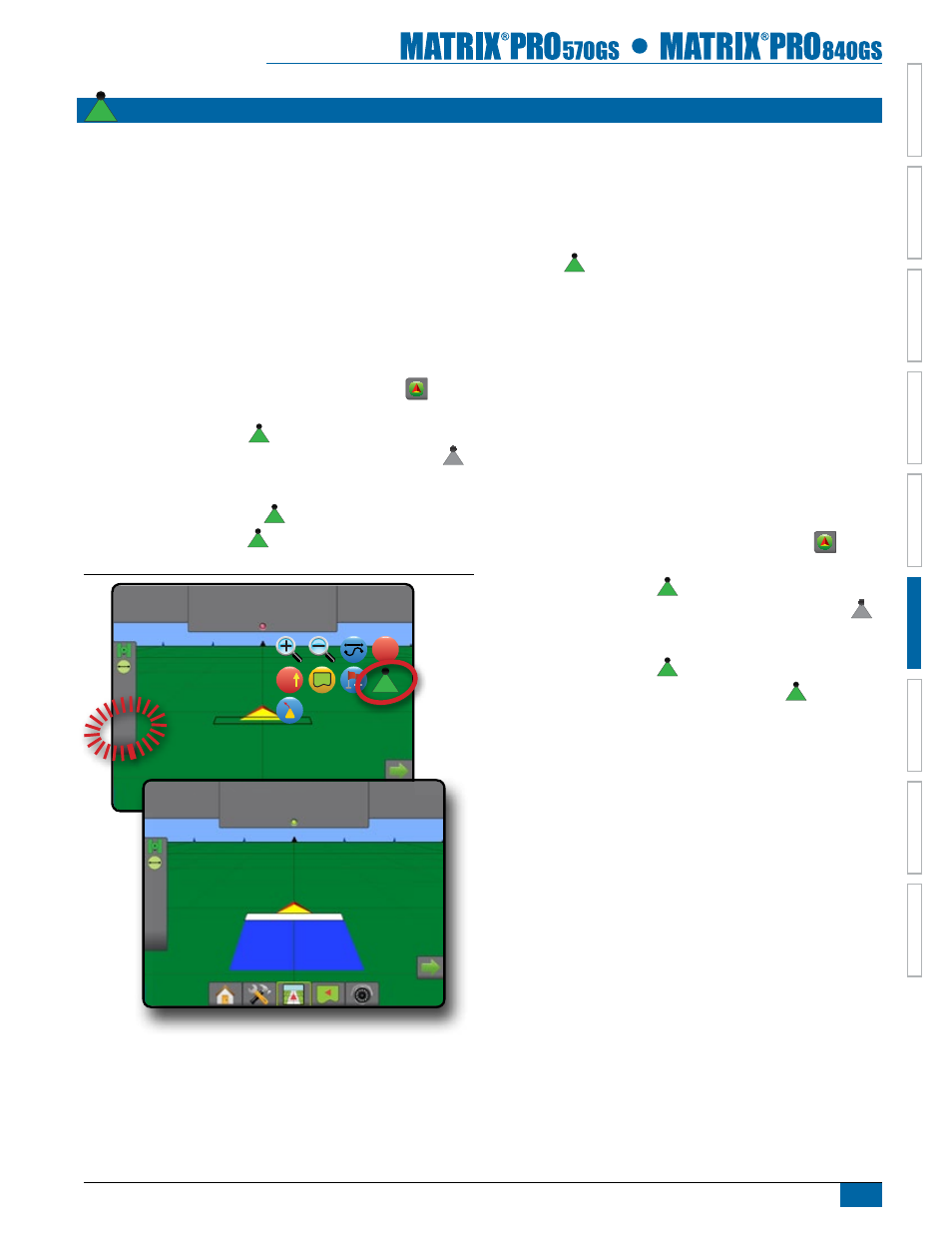

Figure 6-33: All booms off/on – No SDM
0.0
mph
0.00
ac
Mark A
A
A
7.0
mph
0.02
ac
Mark A
With Optional Speed/Sense Cable Switch
BoomPilot can be overridden by using an optional Speed/
Sense Cable Switch.
NOTE: If the Speed/Sense Cable Switch is in the “on” position,
the entire section will be activated and the BOOMPILOT
icon will have no affect.
Using the Speed/Sense Cable Switch
To switch application on using the Speed/Sense Cable Switch:
1. Turn Speed/Sense Cable Switch to the “on” position.
To switch application off using the Speed/Sense Cable Switch:
1. Turn Speed/Sense Cable Switch to the “off” position.
Using the Console
To control application using the console:
1. Speed/Sense Cable Switch should remain in the “off” position.
2. Press NAVIGATION AND GUIDANCE OPTIONS tab
to
display navigation options.
3. Press BOOMPILOT icon .
NOTE: GPS is unavailable when the BOOMPILOT icon is grey
.
In areas where application is not desired:
1. Press BOOMPILOT icon .
To resume application, press the BOOMPILOT icon again.
