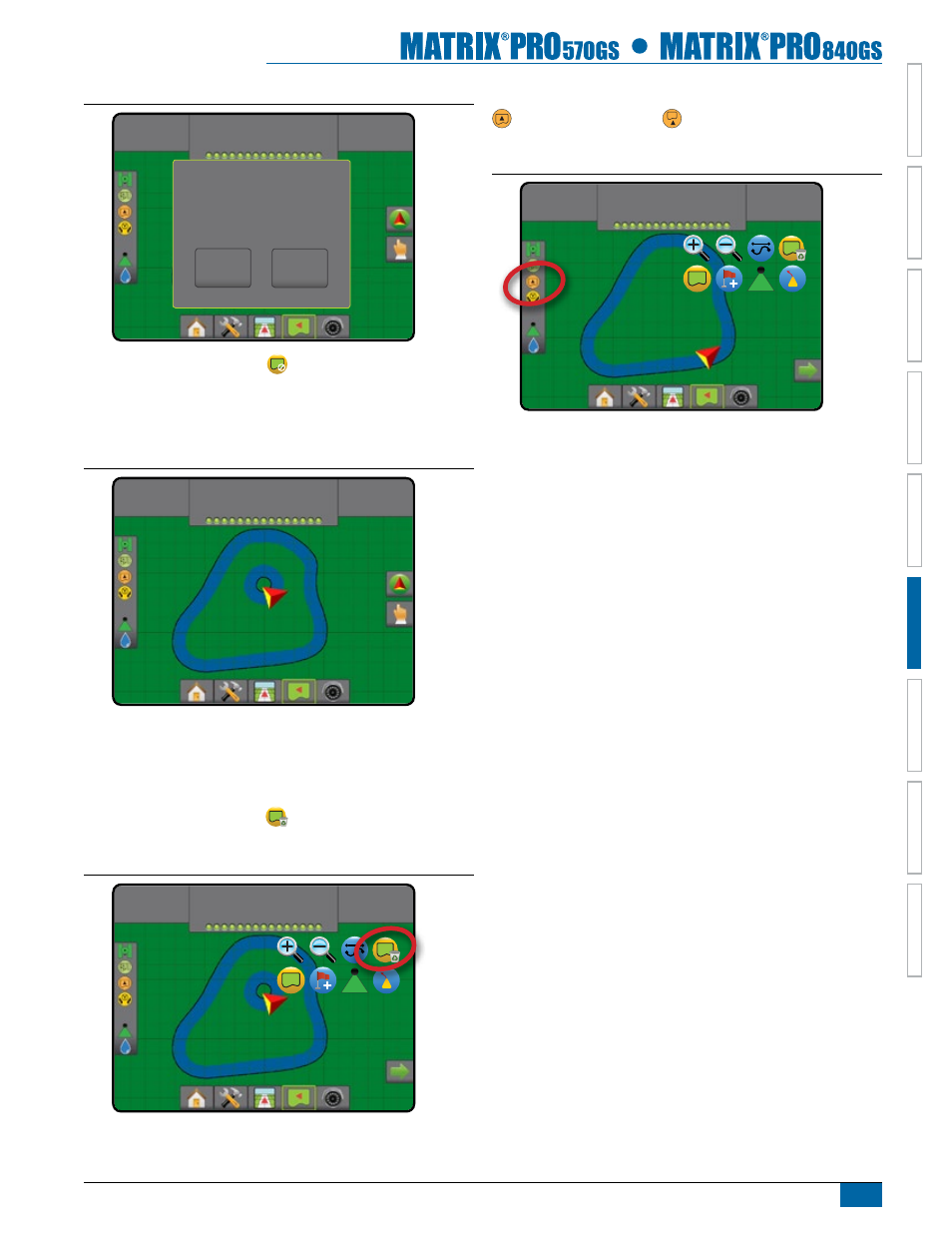

Figure 6-26: Save Boundary
4.68
ac
7.2
mph
Mark A
area bounded = 64.45 ac
would you like to save the marked
boundary?
Save delete
Use CANCEL BOUNDARY icon to cancel the new field boundary
process and revert to the previous boundary (when established).
To establish one or more interior boundaries, follow the same steps
as the initial boundary.
Figure 6-27: Add Interior Boundary
5.48
ac
7.2
mph
Mark A
While creating an external or initial boundary, the boundary line will
be to the exterior of the outer most boom section. While creating an
interior or additional boundary, the boundary line will be to the interior
of the inner most boom section.
Use DELETE BOUNDARY icon
to delete all field boundaries for
the current job.
Figure 6-28: Finish Boundary – Travel to starting point
5.48
ac
7.2
mph
Mark A
In correspondence to your current location, the IN BOUNDARY icon
or OUT BOUNDARY icon is displayed on the Status Bar
once the boundary is established.
