CHAPTER 8 - iMPLEMENT sETUP
Implement Setup is used to establish the various settings associated with straight mode, spreader mode or staggered mode.
Settings will vary depending on if a SmartCable or Section Driver Module (SDM) is present.
implement Type
Implement Type selects the type of application pattern that most closely represents your system.
● In Straight Mode – the boom sections have no length and are on a line a fixed distance from antenna
● In Spreader Mode – a virtual line is created in line with the delivery disks from which the application section or sections can vary in
length and can be at different distances from the line
● In Staggered Mode – a virtual line is created in line with Section 1 from which the application section or sections have no length and
can be at different distances from antenna

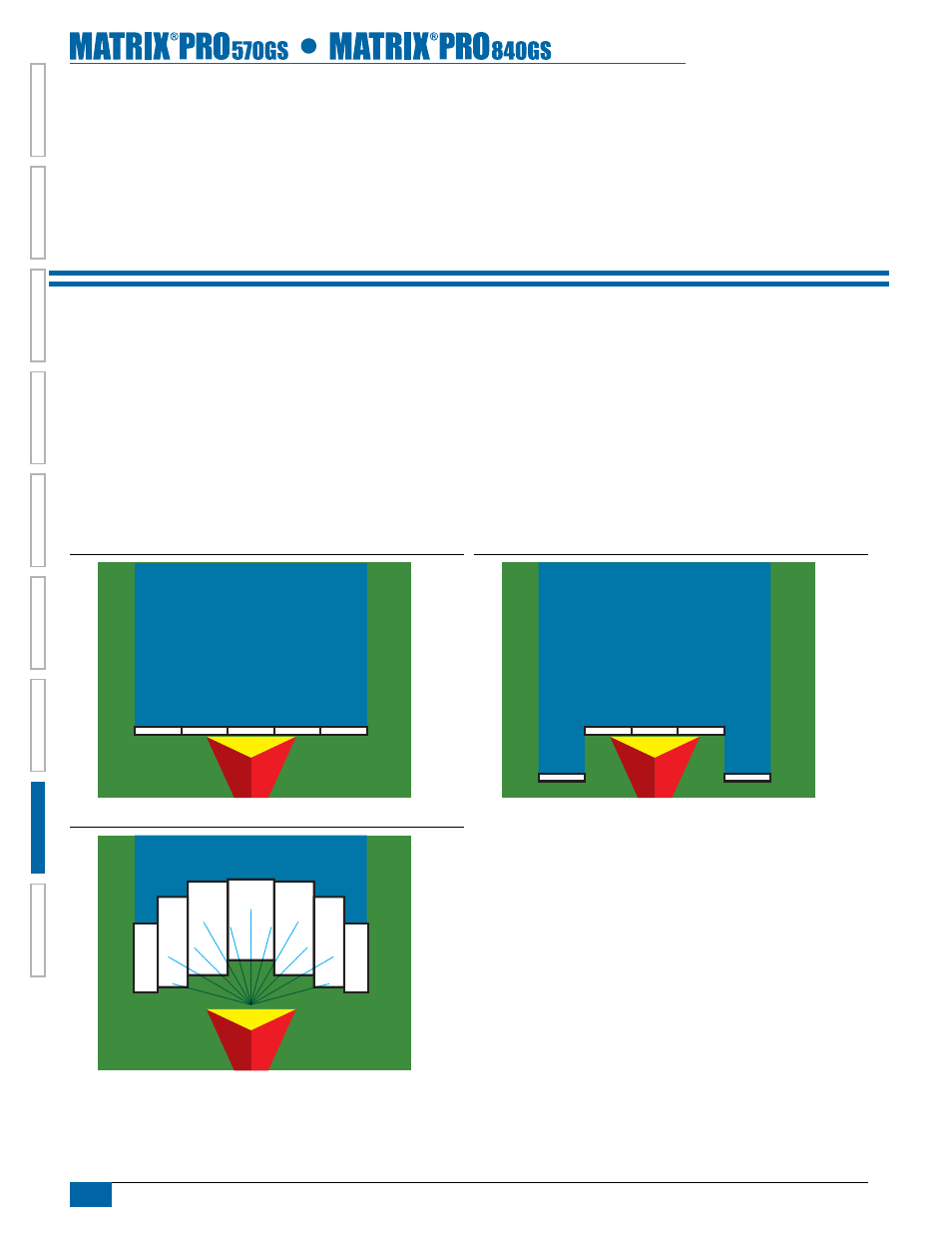

Figure 8-1: Implement Type - Straight
5 4 3 2 1
Figure 8-2: Implement Type - Spreader
5
6
7
4 3
2
1
Figure 8-3: Implement Type - Staggered
5
4 3 2
1
Section Numbers
Sections are numbered from left to right while facing in the machine's forward direction.
