Unavailable Options When Job is Active

When a job is active some setup options are unavailable. See the Unit Setup Mode Menu Structure Chart for indication of which options are

not accessible.

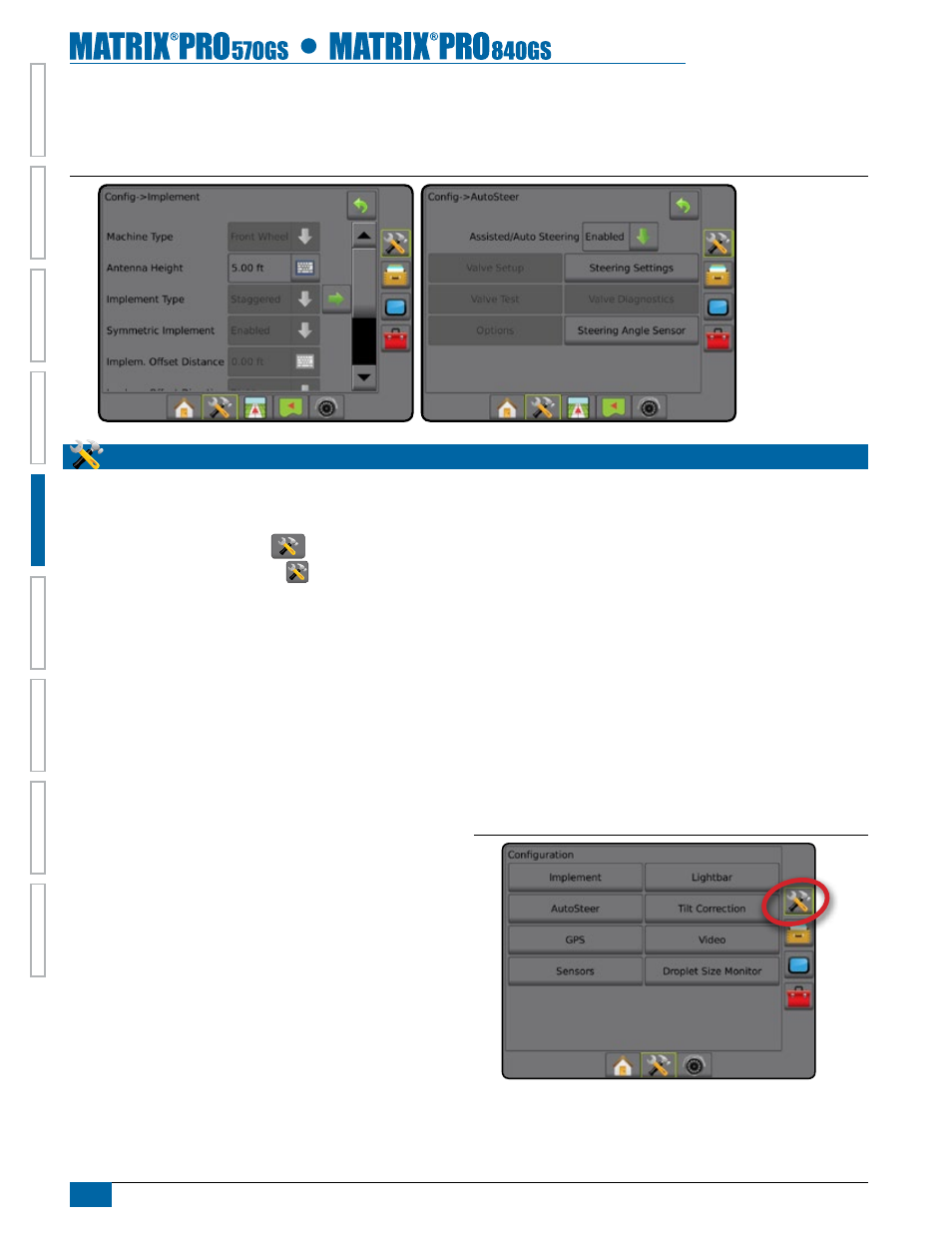

Figure 5-2: Examples of Unavailable Options

COnfiGUratiOn

Configuration is used to configure the Implement, Lightbar, AutoSteer, Tilt Correction, GPS, Video, Sensors and Droplet Size Monitor.
NOTE: Feature availability will vary depending on the devices available on the Matrix Pro GS system.
1. Press UNIT SETUP bottom tab

2. Press CONFIGURATION side tab

3. Select from:

►Implement – used to establish machine type, GPS antenna

height, implement type, symmetric implement layout,

implement offset distance/direction, number of implement

sections, guidance width, application/working width and

applied area alarm times.

● In Straight Mode – boom offset direction, antenna to boom

distance, overlap percentage, implement delay on time and

implement delay off time

● In Spreader Mode: TeeJet – antenna to disks distance,

overlap percentage, implement delay on time, implement

delay off time, spread offset distance, section offset

distances and section lengths

● In Spreader Mode: OEM – antenna to disks distance, start

distance, stop distance, section start offsets and section stop

offsets

● In Staggered Mode – section 1 offset direction, antenna to

section 1 distance, overlap percentage, implement delay on

time, implement delay off time and section offsets

►Lightbar – used to establish LED brightness, display mode and

LED spacing

►AutoSteer – used to enable/disable assisted/auto steering as

well as establish valve setup settings, steering settings and

steering angle sensor settings; and perform valve tests, or

valve diagnostics

►Tilt Correction – used to enable/disable and calibrate the tilt

gyro module, allowing for tilt correction for application on hilly

or sloped terrain

►GPS – used to establish the GPS type, port and PRN as well

as to view GPS status information

►Video – used to set up individual cameras
►Sensor – used to establish pressure sensor settings
►Droplet Size Monitor – used to enable/disable and set up

preset and current tips

Figure 5-3: Configuration Options
