droplet size Monitor
When a Pressure Sensor Interface Kit is present, Droplet Size
Monitor is used to enable/disable the Droplet Size Monitor (DSM),
preset up to five (5) tips and select the current tip.
1. Press CONFIGURATION side tab
.
2. Press
Droplet Size Monitor
.
3. Select if droplet size monitor is enabled or disabled.
4. When enabled, select from:
►Nozzle Presets – selects up to five (5) tips for quick recall
►Current Tip – selects the current tip for determining droplet
size information
5. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.

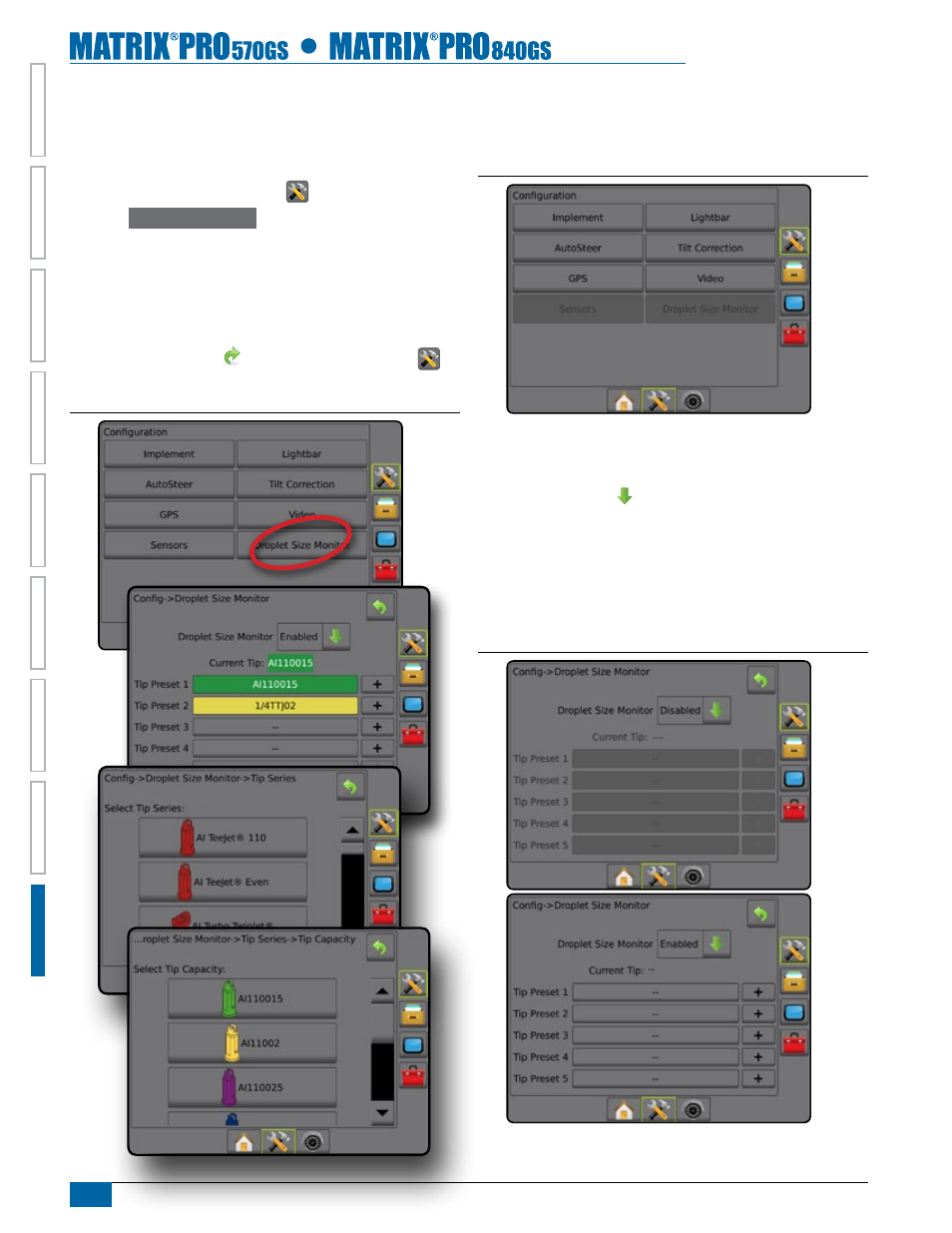

Figure 9-2: Droplet Size Monitor and Tips
Droplet Size Monitor Unavailable
If a Pressure Sensor Interface Kit is not installed, setup options will
not be available.
Figure 9-3: Pressure Sensor Interface Kit Not Detected
Enable/Disable Droplet Size Monitor
Set Droplet Size Monitor (DSM) to Enabled or Disabled.
1. Press DOWN arrow to access the list of options.
2. Select:
►Enabled
►Disabled
If DSM is set to “Disabled”, all tip capabilities and setup functions will
be disabled (options will be grayed out).
Figure 9-4: Disabled and Enabled DSM Options
