Vehicle View
Vehicle View creates a computer-generated image of the vehicle position displayed in the application area. From this screen all setup
and navigation options can be accessed via the tab on the right side of the screen.

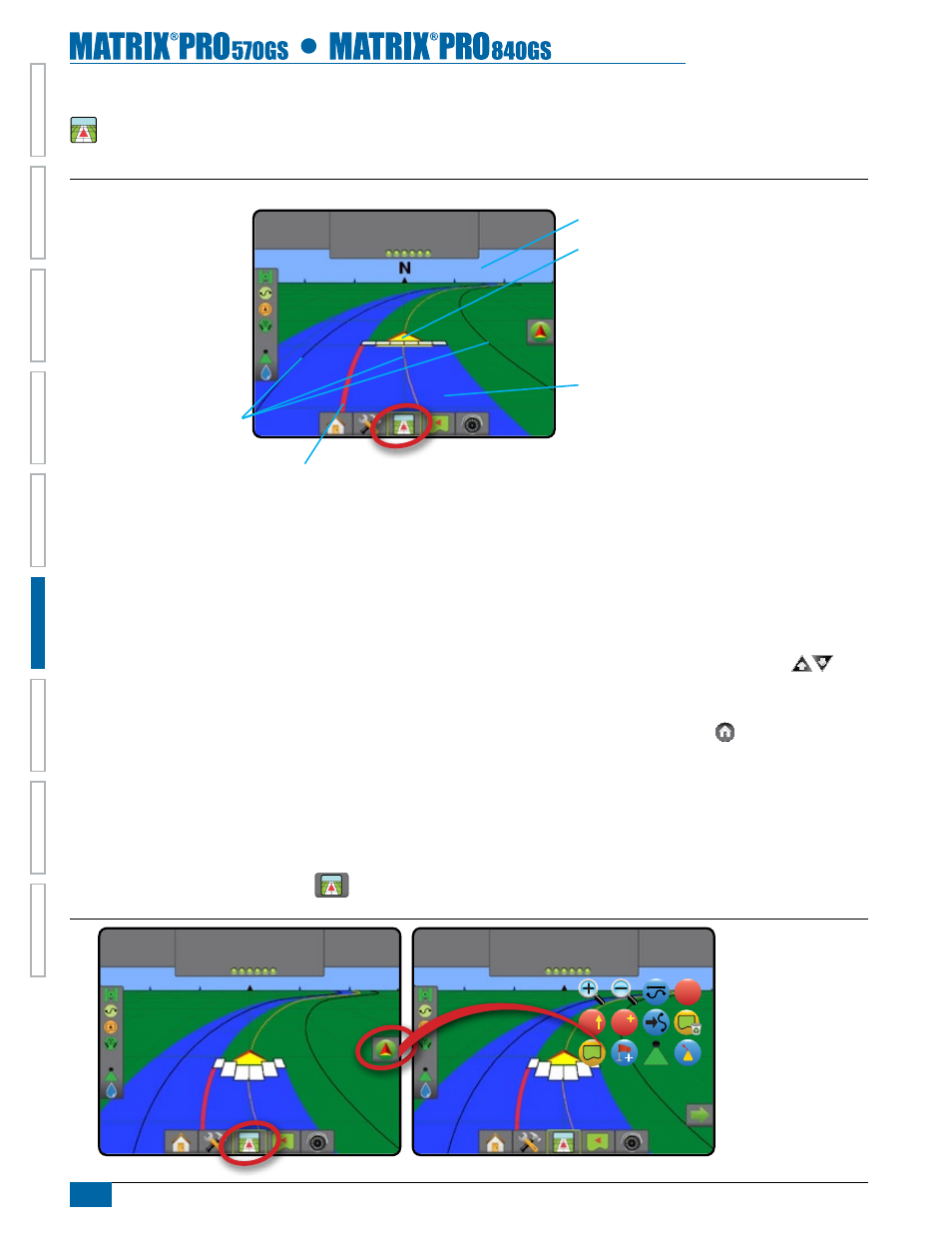

Figure 6-5: Vehicle View
10.0
mph
27.00
ac
> 0.0 <
Status Bar
Horizon Compass
Guidance Bar
Painted Coverage Area
Overlap Coverage Area
Navigation Guidelines
Vehicle with Real-time Representation
of Active Boom Sections
Navigation and Guidance options tab
On Screen Guidance
• Guidelines
◄Orange – active guidance line
◄Black (multiple) – adjacent guidance lines
◄Black – boundary line
• Points – markers for established points
◄Red Point – Return to Point
◄Blue Point – Mark A
◄Green Point – Mark B
• Horizon Compass – general heading can be displayed on
horizon (when zoomed in)
• Coverage Area – illustrates applied area and overlap:
◄Blue – one application
◄Red – two or more applications
• Zoom In/Out & Perspective – adjusts the vehicle’s view or
perspective to the horizon from vehicle view to bird’s eye view.
• Boom Sections
◄Black boxes – inactive booms
◄White boxes – active booms
Matrix Pro 840GS Console Button Assistance
• Zoom In/Out & Perspective – the Up/Down buttons
adjust the vehicle’s view or perspective to the horizon from
vehicle view to bird’s eye view.
• Home/Job Screen – the Home button accesses the
Home/Job screen.
To access the Vehicle View screen:
1. Press VEHICLE VIEW GUIDANCE tab
.
