naViGatiOn SCreenS
Matrix Pro GS guidance and navigation can be accessed from the Vehicle View screen, Field View screen or RealView screen.
• Press NAVIGATION AND GUIDANCE OPTIONS tab to display navigation options
• Press REALVIEW OPTIONS tab to display camera setup and guidance options

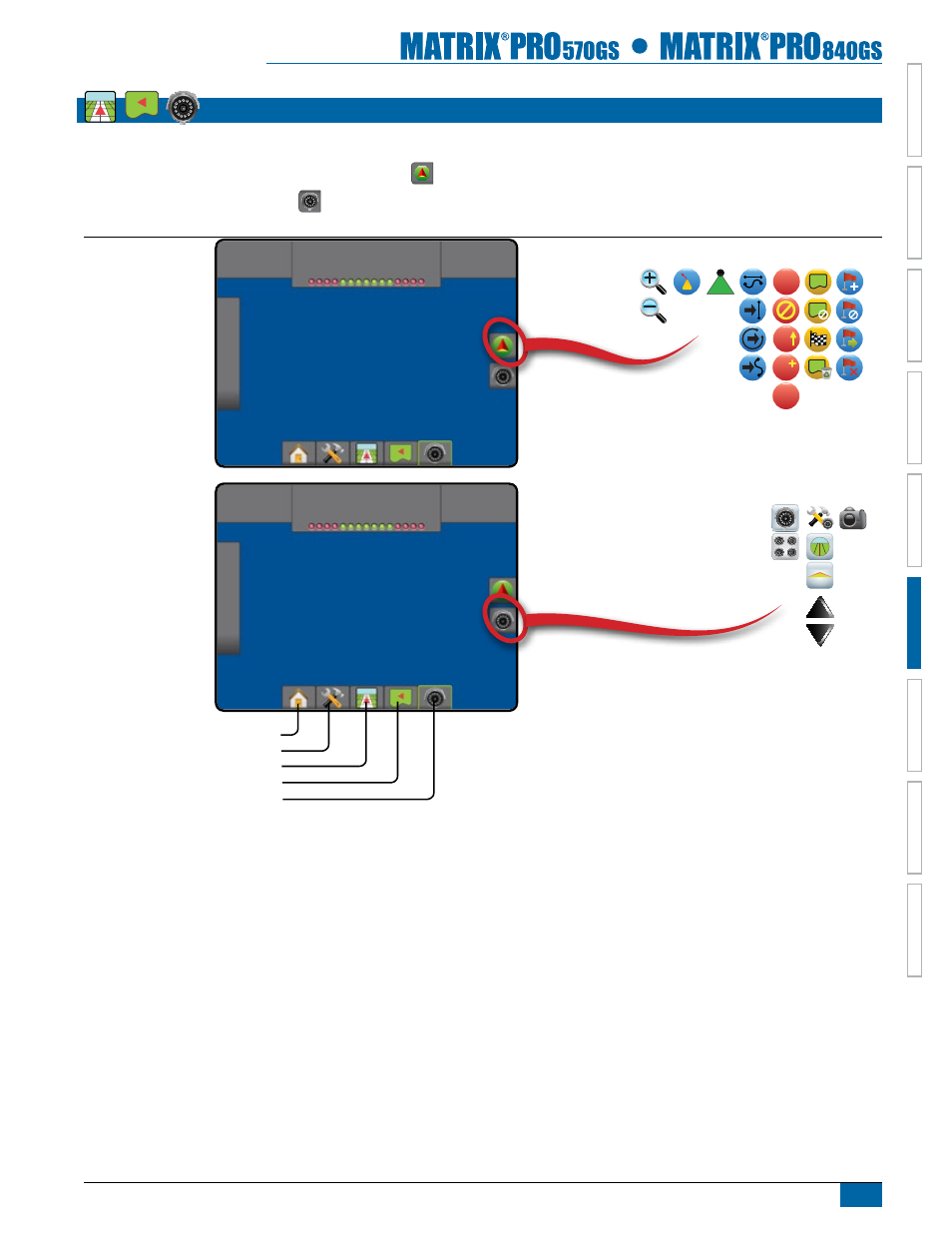

Figure 6-4: Guidance Screen Options
12
deg
-13 > 0.0 <
12
deg
-13 > 0.0 <
RealView Guidance
Field View Guidance
Vehicle View Guidance
Unit Setup
Home/Job Screen
(or press Home Button)
A
A
A
B
Navigation and Guidance Options
RealView Options
Zoom In/Out Icons are not available on Matrix Pro 840GS
or on RealView Guidance screens
