GPs
GPS is used to configure GPS Type, GPS Port and PRN as well as
to view GPS status information. For detailed setup instructions, refer
to the GPS chapter in this manual.
NOTE: These settings are required for assisted/auto steering and tilt
sensor operation, as well as proper implement operation.
1. Press CONFIGURATION side tab .
2. Press
GPS
.
3. Select from:
►GPS Type – select GPS source transmissions
►GPS Port – sets (D)GPS communication port
►GPS Status – displays information regarding GGA/VTG (Data
Rates), Number of Satellites, HDOP, PRN, GGA Quality, GPS
Receiver, Receiver Version and UTM Zone
►Program – allows direct programming of the GPS receiver
through a command line interface
►PRN – selects the SBAS PRN that will provide GNSS
differential correction data. Set to Automatic for automatic
PRN selection.
►Alternate PRN – when PRN is not automatic, a second
alternate SBAS PRN will provide a second set of GNSS
differential correction data.
4. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.

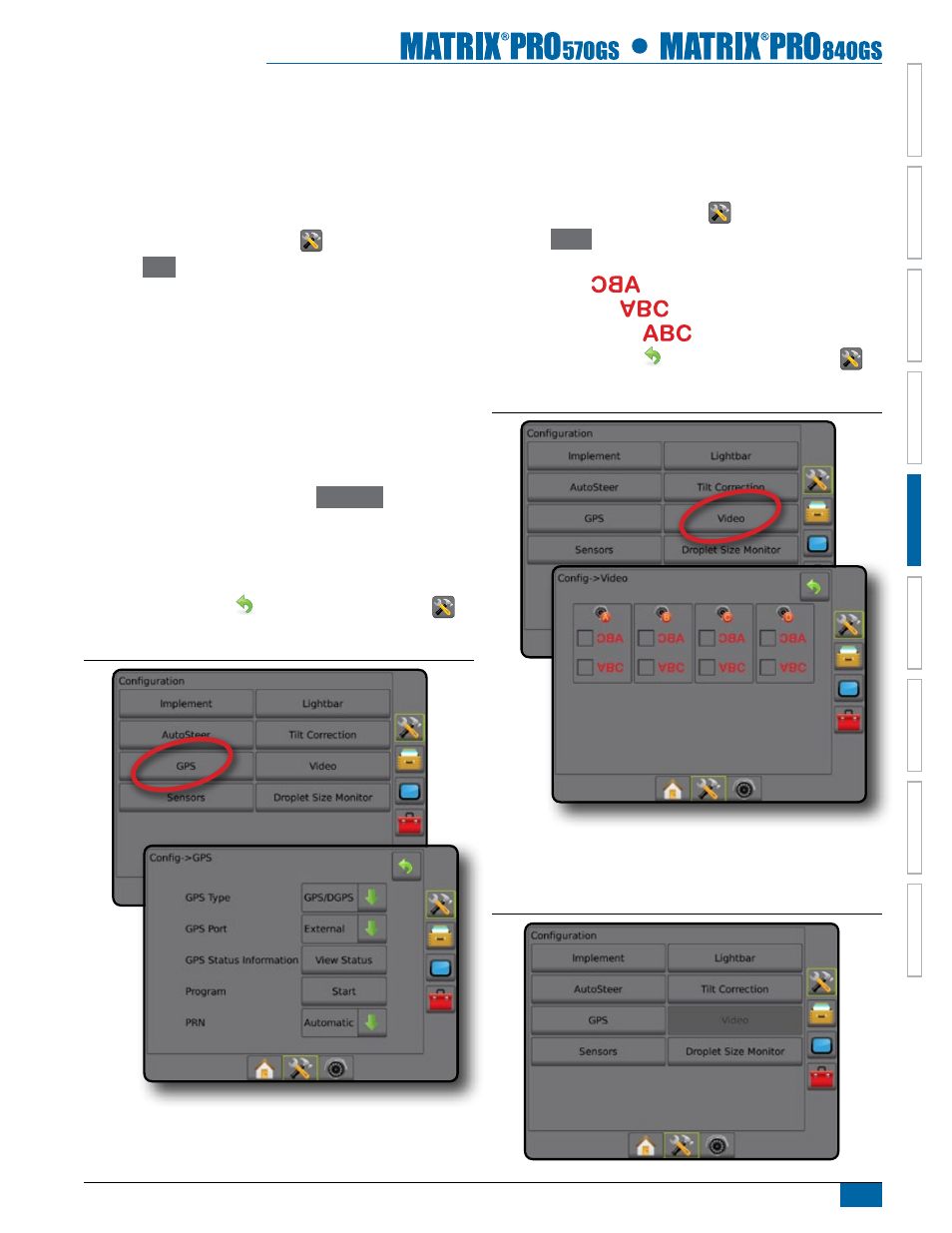

Figure 5-14: GPS
PRN Not Shown
When GPS Type is set to "GPS+GLONASS", PRN options are not
available, nor shown on screen.
Video
Video Setup is used to set up a single directly connected camera
or individual cameras while using an Eight (8) Channel or Four (4)
Channel Video Selector Module (VSM). Up to 8 cameras can be
configured if a VSM is installed.
1. Press CONFIGURATION side tab
.
2. Press
Video
.
3. Select the appropriate check box(es):
►Reverse –
►Upside Down –
For normal video view
un-check all check boxes.
4. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.
Figure 5-15: Video with 4 Channel VSM
Video Setup Unavailable
If a camera or VSM is not connected, setup options will not be
available.
Figure 5-16: Video Unavailable
