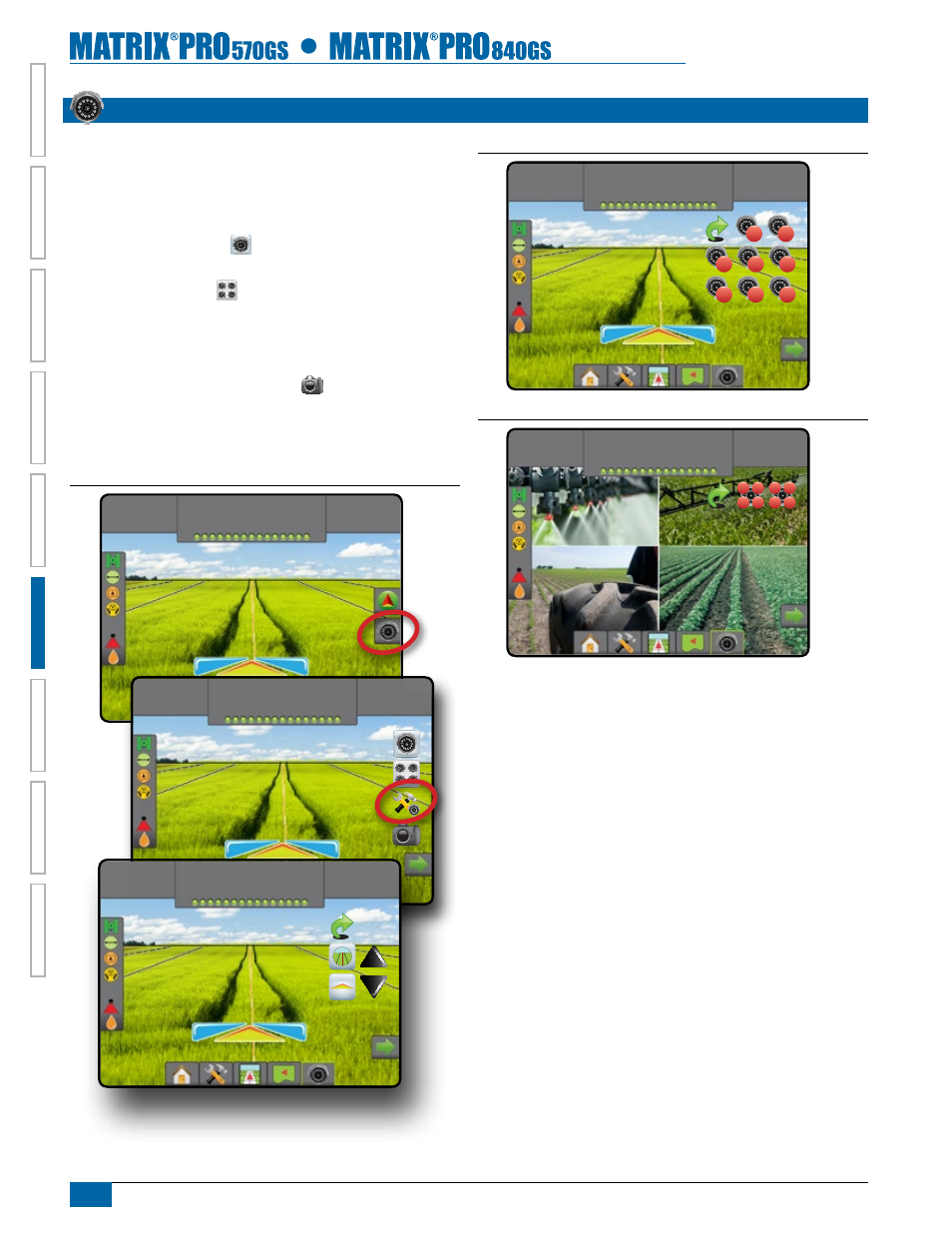

realView SPeCifiC OPtiOnS
RealView Guidance allows live video input to be displayed instead of
a computer-generated image.
If a Video Selection Module (VSM) is installed on the system, two (2)
video options are available:
►Single Camera View – one (1) of up to eight (8) camera
inputs can be selected to change the view of the video input.
►Split Camera View – one (1) of two (2) sets of four (4)
camera inputs (A/B/C/D or E/F/G/H) can be selected to divide
the screen into four separate video feeds.
Also available is:
►RealView Camera Image Capture – saves a still photo of
the current view on the screen to a USB drive
RealView Guidance options also include guidance over video, a
steering angle indicator and camera image capture.
