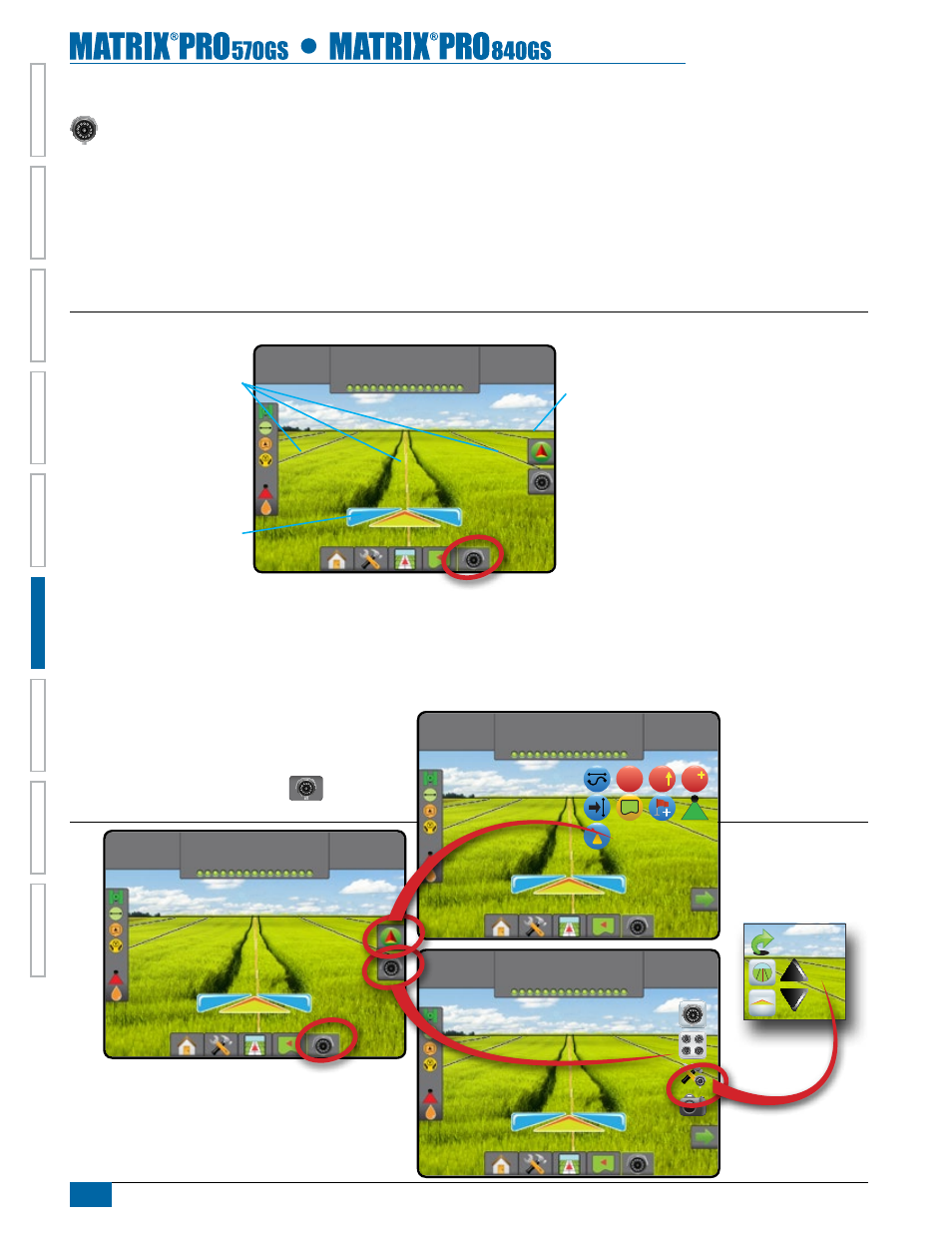

RealView Guidance
RealView Guidance allows live video input to be displayed instead of a computer-generated image. From this screen all setup and
navigation options can be accessed via the tabs on the right side of the screen.
If a Video Selection Module (VSM) is installed on the system, two video options are available:
• One Camera View – one of up to eight camera inputs can be selected to change the view of the video input.
• Split Camera View – one of two sets of four camera inputs (A/B/C/D or E/F/G/H) can be selected to divide the screen into four separate
video feeds.
From this screen guidance over video and steering angle modes can be accessed via the icon tabs on right side of the screen.
Figure 6-9: RealView Guidance
27.00
ac
10.0
mph
> 0.0 <
Status Bar
Guidance Bar
Navigation Guidelines
Steering Angle
Navigation and Guidance options tab
Horizon Line
RealView options tab
On Screen Guidance
• Guidelines
◄Orange – active guidance line
◄Black (multiple) – adjacent guidance lines
• ◄Horizontal Black Line – adjustable horizon line
To access the RealView screen:
1. Press REALVIEW GUIDANCE tab
.
Figure 6-10: Real View w/ Common Icons Shown
10.0
mph
27.00
ac
> 0.0 <
A A A
10.0
mph
27.00
ac
> 0.0 <
10.0
mph
27.00
ac
> 0.0 <
