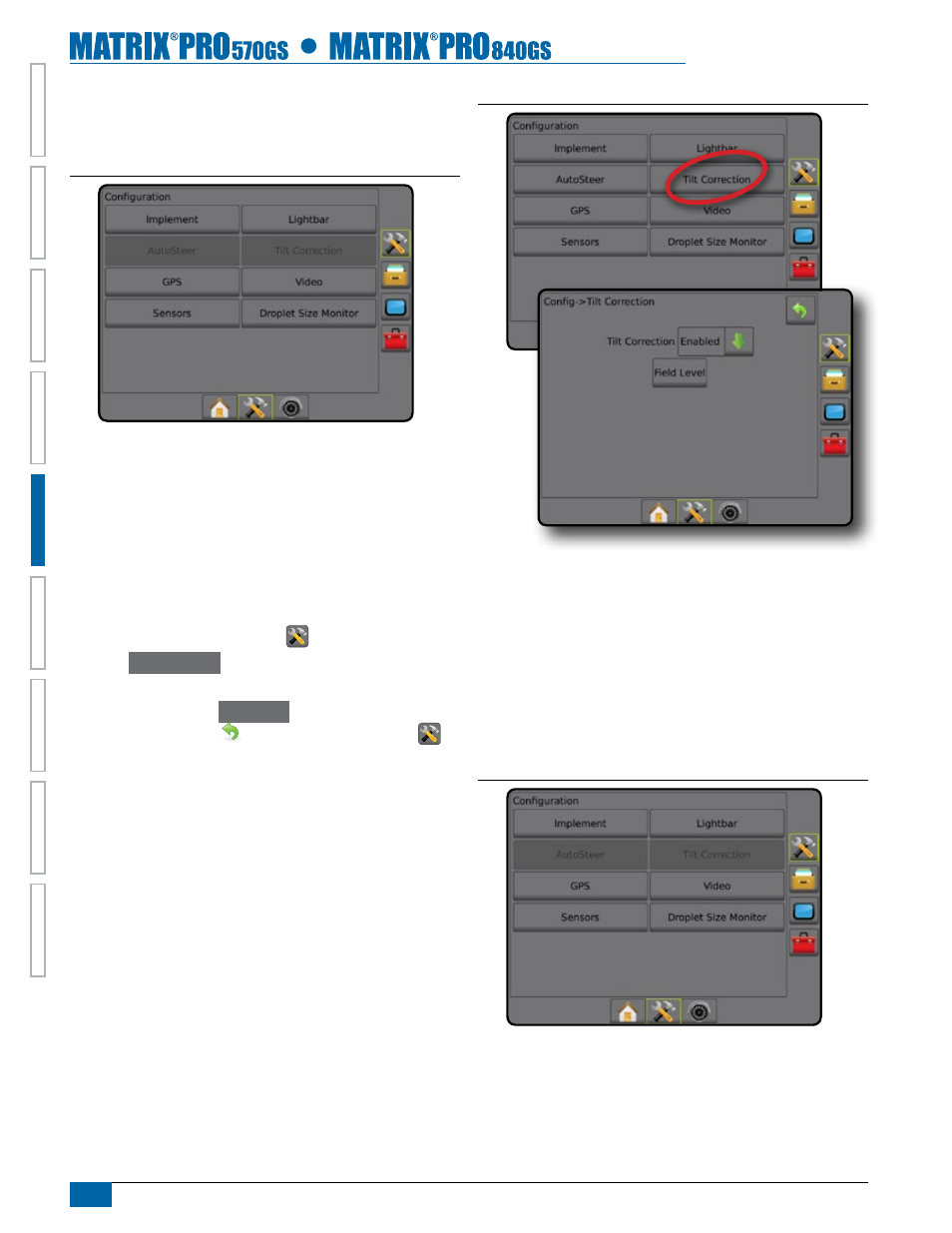

Assisted/Auto Steering Unavailable
If an assisted/auto steering system is not installed, setup options will
not be available.
Figure 5-11: Assisted/Auto Steering Not Detected
Tilt Correction
When a Steering Control Module (SCM) or Tilt Gyro Module (TGM) is
present, Tilt Correction options will be available. For detailed setup
instructions, refer to your specific assisted/auto steering installation
manual or tilt setup bulletin.
The Tilt Correction function corrects the GPS signal to compensate
for errors in the GPS position while operating on sloped terrain.
1. Press CONFIGURATION side tab
.
2. Press
Tilt Correction
.
3. Select if Tilt Correction is enabled or disabled.
4. When enabled, select
Field Level
to calibrate tilt correction
5. Press RETURN arrow or CONFIGURATION side tab to
return to the main Configuration screen.
NOTE: If FieldPilot or UniPilot is being used, a Tilt Gyro Module is
built into the system.
NOTE: Antenna Height must be entered prior to Tilt Calibration.
Figure 5-12: Tilt Correction
Field Level Unavailable
If the vehicle is in motion, the field level option will not be available.
Vehicle must be stopped for at least 10 seconds to begin to calibrate
tilt correction.
Tilt Correction Unavailable
If a TGM or SCM is not connected, setup options will not be
available.
Figure 5-13: Tilt Correction Not Detected
