SinGle SeCtiOn SetUP
Single Section Setup is used when a SmartCable or Section Driver
Module (SDM) is not on the system. The entire boom or delivery
area is considered to be one section.
NOTE: If a SmartCable or Section Driver Module (SDM) is present,
refer to "SmartCable or Section Driver Module Setup" to view
setup steps.
1. Press CONFIGURATION side tab .
2. Press
Implement
.
3. Select from:
►Machine Type – used to select the type of machine that most
closely represents your machine.
►GPS Antenna Height – used to measure the height of the
antenna from the ground. Range is 0.0 to 32.81 feet / 0.0 to
10.0 meters.
►Implement Type – used to select the layout of the sections for
the applied product location.
►Implement Offset Distance  – used to enter the distance
from the centerline of the machine to the center of the
implement. Range is 0 to 32.8 feet / 0 to 10.0 meters.
NOTE: For detailed setup instructions, refer to the Implement
Offset section of this chapter.
►Implement Offset Direction  – used to enter the direction
from the centerline of the machine to the center of the
implement while facing in the machine's forward direction
►Guidance Width – used to enter the distance between the
guidelines. Range is 3.28 to 246.06 feet / 1.0 to 75.0 meters.
►Application Width [Straight Implement Type] – used to enter
the total width of the implement.
►Working Width [Spreader Implement Type] – used to enter the
total width of the implement.
►Applied Area Alarm – used to establish an alert to signal when
exiting or entering an applied area
►Applied Alert Exit Time – when Applied Area Alarm is enabled,
used to set the amount of time before exiting an applied area
at which the alarm will sound. Range is 0 to 10 seconds.
►Applied Alert Entry Time – when Applied Area Alarm is
enabled, used to set the amount of time before entering an
applied area at which the alarm will sound. Range is 0 to
10 seconds.
4. Press NEXT PAGE arrow to set up the selected specific
implement type's options.

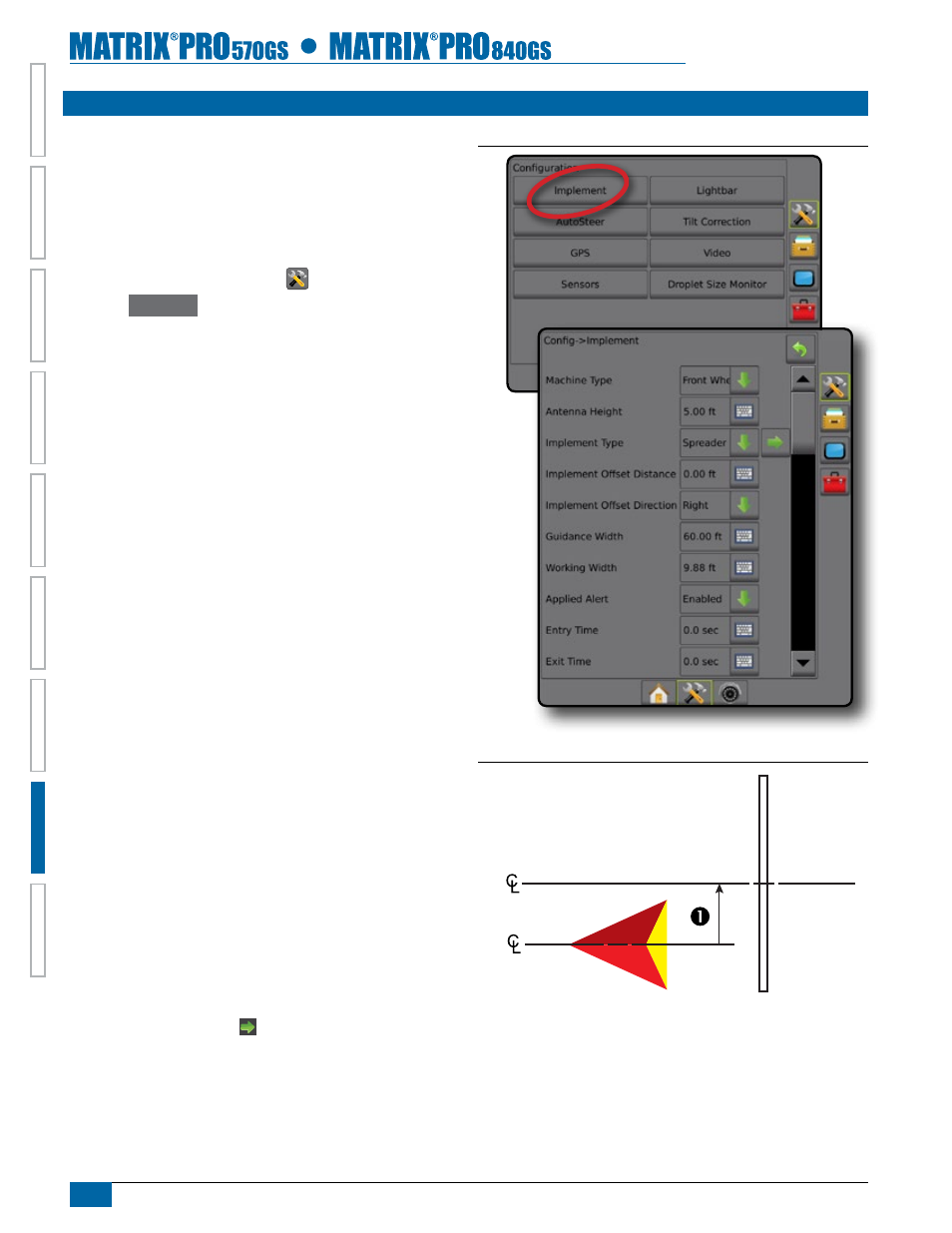

Figure 8-8: Implement – Single Section
Figure 8-9: Implement Offset Distance and Direction
