Chapter 5: Web-Based Management
74
GE-DSH-73/DSH-82 and DSH-82-PoE User Manual
Figure 5-27: State Activity of Switch 2
NOTE:
A link having two passive LACP nodes will not perform dynamic LACP trunk
because both ports are waiting for an LACP protocol packet from the opposite device.
Port Mirroring
The Port mirroring is a method for monitor traffic in switched networks. Traffic
through ports can be monitored by one specific port, which means traffic goes in or
out monitored (source) ports will be duplicated into mirror (destination) port.

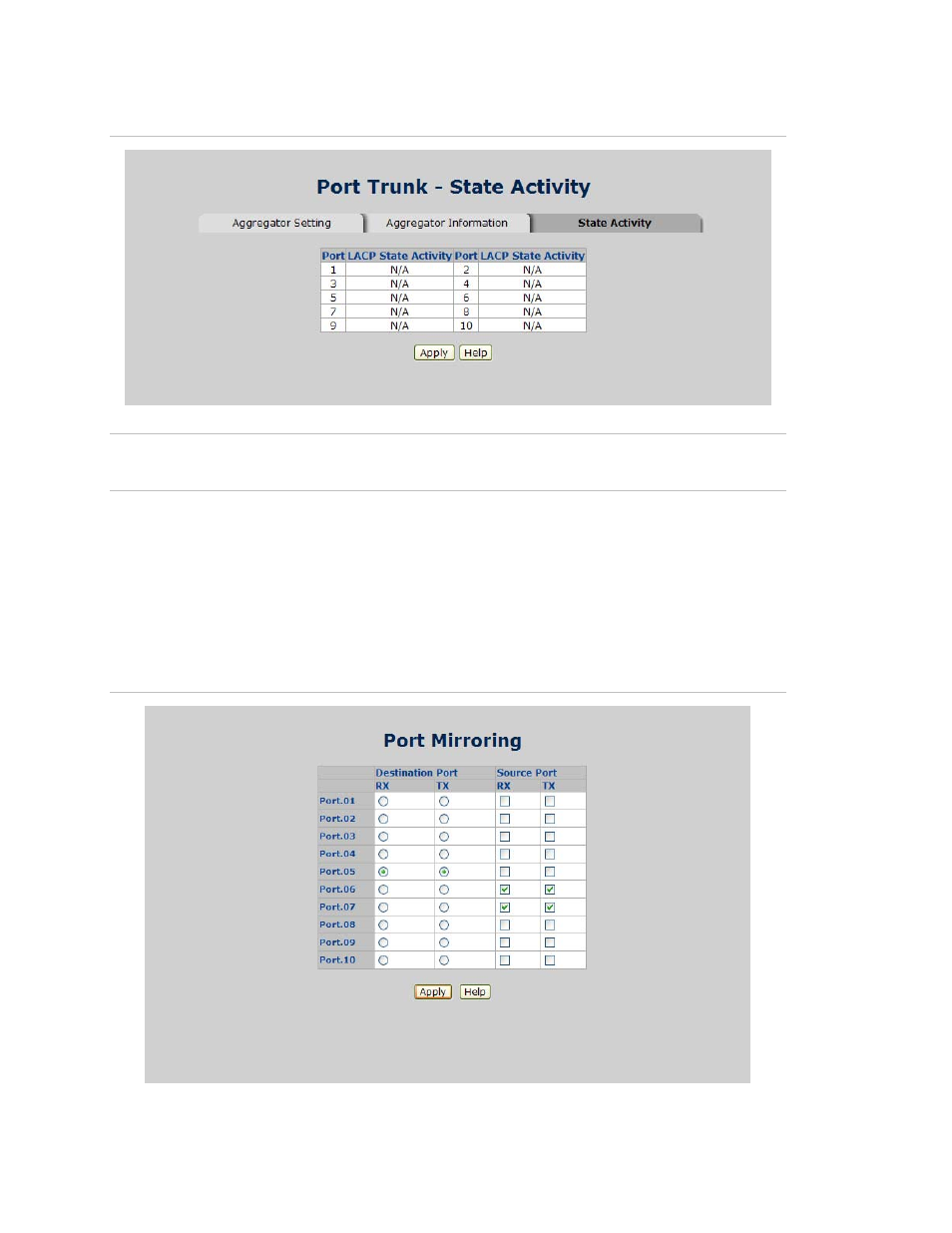

Figure 5-28: Port Trunk - Port Mirroring interface
