Appendix A: RJ-45 Pin Assignment
172
GE-DSH-73/DSH-82 and DSH-82-PoE User Manual
10/100Mbps, 10/100Base-TX
When connecting your 10/100Mbps Ethernet Switch to another switch, a bridge or a
hub, a straight or crossover cable is necessary. Each port of the Switch supports
auto-MDI/MDI-X detection. That means you can directly connect the Switch to any
Ethernet devices without making a crossover cable. The following table and diagram
show the standard RJ-45 receptacle/ connector and their pin assignments:
RJ-45 Connector pin assignment
Contact
MDI
Media Dependant Interface
MDI-X
Media Dependant Interface-Cross
1
Tx + (transmit)
Rx + (receive)
2
Tx - (transmit)
Rx - (receive)
3
Rx + (receive)
Tx + (transmit)
4, 5
Not used
6
Rx - (receive)
Tx - (transmit)
7, 8
Not used

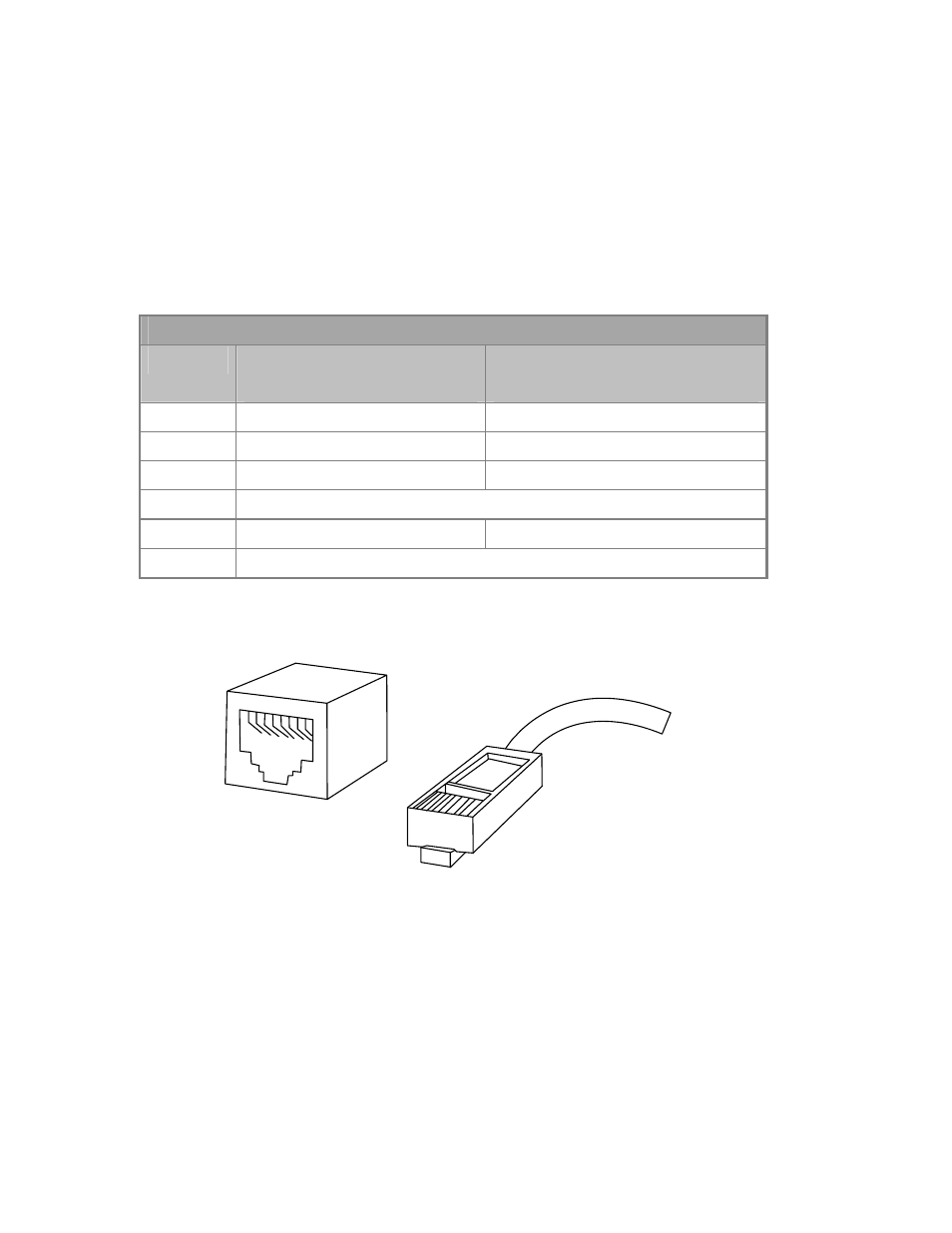

The standard cable, RJ-45 pin assignment
1 2 3 4 5 6 7 8
8 7 6 5 4 3 2 1
The standard RJ-45 receptacle/connector
