Chapter 5: Web-Based Management

GE-DSH-73/DSH-82 and DSH-82-PoE User Manual

67

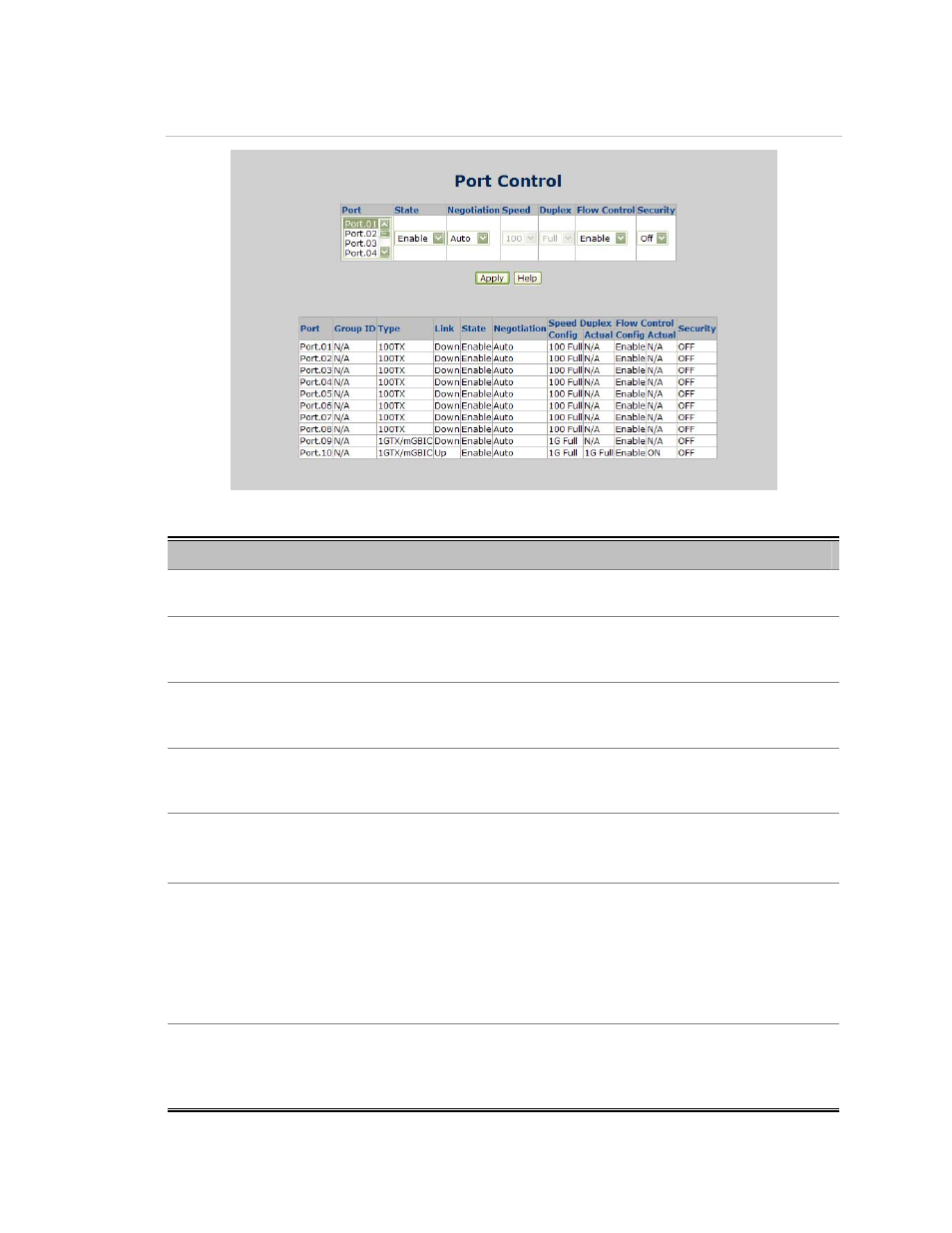

Figure 5-19: Port Control interface

This page includes the following fields:

Object

Description

Port:

Use the scroll bar and click on the port number to choose the port to be
configured.

State:

Current port state. The port can be set to disable or enable mode. If the port
state is set as ‘Disable’, it will not receive or transmit any packet.

Negotiation:

Auto and Force. Being set as Auto, the speed and duplex mode are negotiated
automatically. When you set it as Force, you have to set the speed and duplex
mode manually.

Speed:

It is available for selecting when the Negotiation column is set as Force. When
the Negotiation column is set as Auto, this column is read-only.

Duplex:

It is available for selecting when the Negotiation column is set as Force. When
the Negotiation column is set as Auto, this column is read-only.

Flow Control:

Whether or not the receiving node sends feedback to the sending node is
determined by this item. When enabled, once the device exceeds the input data
rate of another device, the receiving device will send a PAUSE frame which halts
the transmission of the sender for a specified period of time. When disabled, the
receiving device will drop the packet if too much to process.

Security:

When the Security selection is set as ‘On’, any access from the device which
connects to this port will be blocked unless the MAC address of the device is
included in the static MAC address table. See the segment of MAC Address
Table—Static MAC Addresses.
