AppendixAppendix AAppendix AAppendix A: RJ-45 Pin Assignment
GE-DSH-73/DSH-82 and DSH-82-PoE User Manual 173
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The
following shows the pin allocation and color of straight cable and crossover cable
connection:

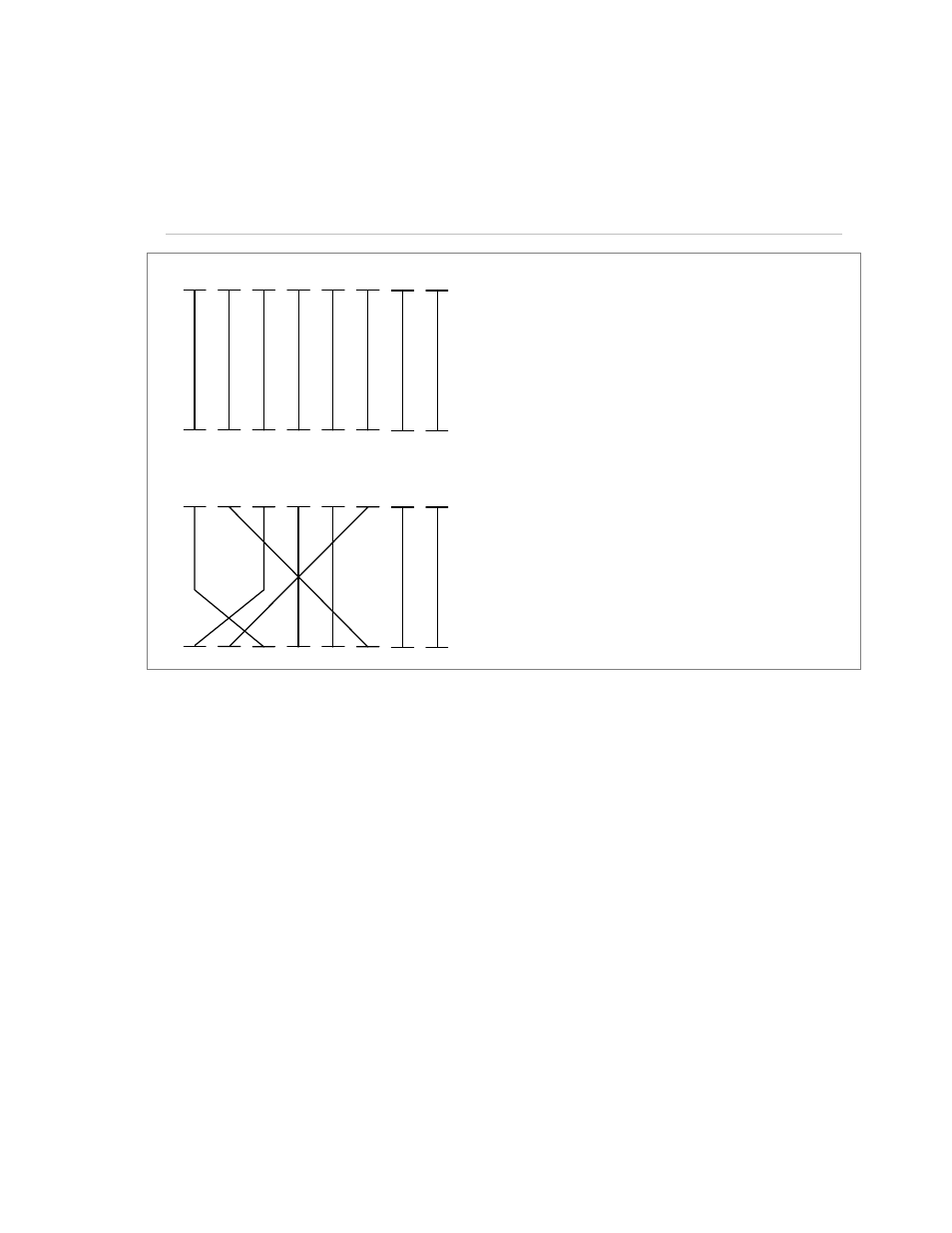

Figure A-1: Straight-Through and Crossover Cable
Straight Cable SIDE 1 SIDE2
SIDE 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
SIDE 2
1 = White / Orange
2 = Orange
3 = White / Green
4 = Blue
5 = White / Blue
6 = Green
7 = White / Brown
8 = Brown 1 = White / Orange
2 = Orange
3 = White / Green
4 = Blue
5 = White / Blue
6 = Green
7 = White / Brown
8 = Brown
Crossover Cable SIDE 1 SIDE2
SIDE 1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
SIDE 2
1 = White / Orange
2 = Orange
3 = White / Green
4 = Blue
5 = White / Blue
6 = Green
7 = White / Brown
8 = Brown 1 = White / Green
2 = Green
3 = White / Orange
4 = Blue
5 = White / Blue
6 = Orange
7 = White / Brown
8 = Brown
Please make sure your connected cables are with same pin assignment and color as
above picture before deploying the cables into your network.
