Evco S.p.A.

c-pro 3 CLIMA sistema | Installer manual ver.1.1 | Code 144CP3CSE114

page 8 of 74

3

INSTALLATION

Below we will show the dimensions, assembly and electric connections of the c-pro 3 CLIMA sistema, made up from

thermal power plant modules (MCCT), Zones (MCZN), solar panels (MCPS) and graphical displays (Vroom).

3.1

Dimensions

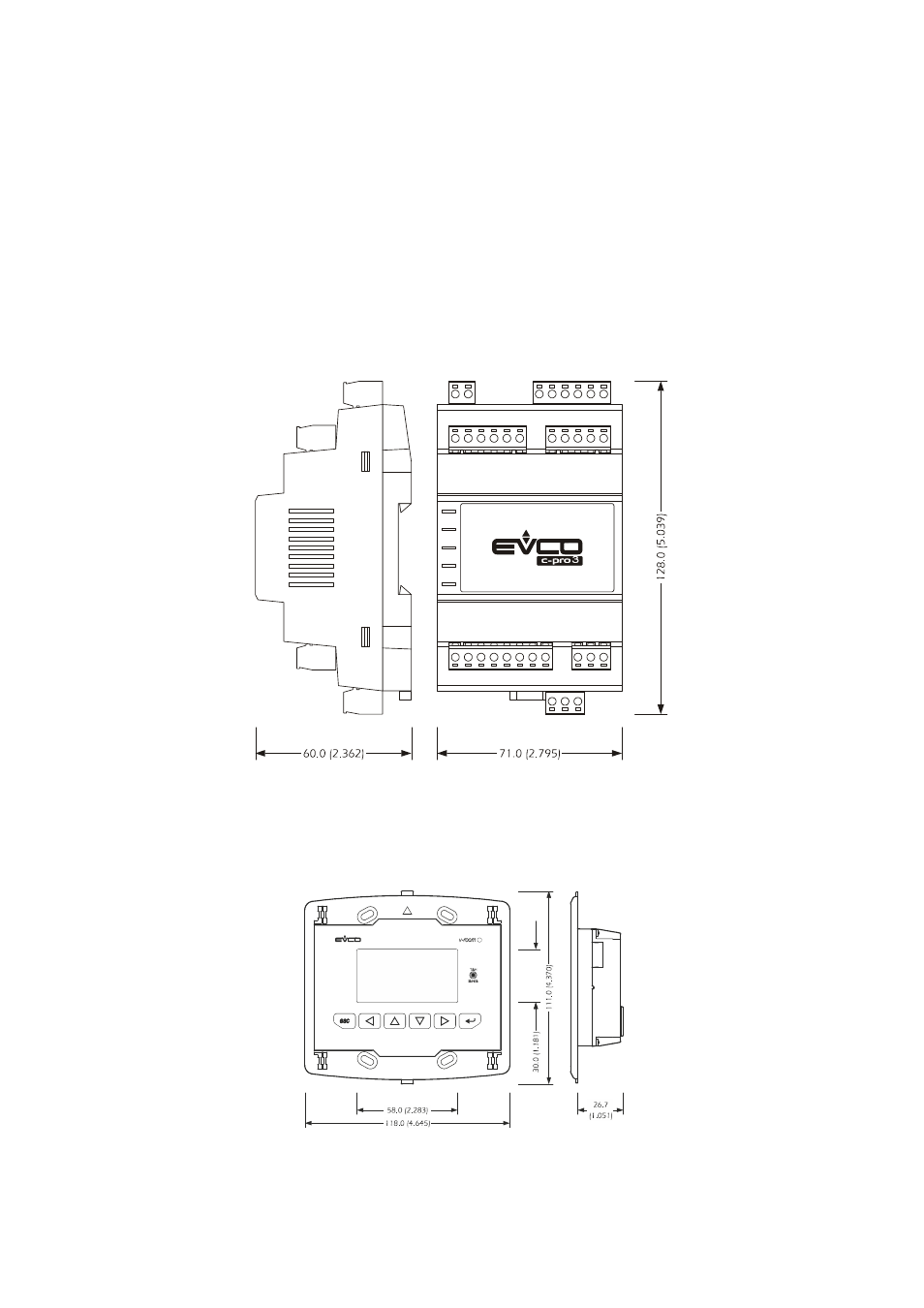

3.1.1

Thermal power plant (MCCT), zone modules (MCZN) and solar

panels (MCPS) dimensional drawing.

3.1.2

Graphical display dimensional drawing (Vroom).
