3.5.2

Module private terminal

If the viewer is configured as a private terminal of separate zones, each viewer will be able to display only the

regulator MCZN chosen area, managing the areas controlled by the controller MCZN.

A condominium is given as an example.

A Vroom display will be installed in every apartment, which will establish temperatures and time bands for the Zones

present in the apartment, without the possibility to display or modify the settings of the other apartments present.

Vroom settings:

Below find the network settings to be made on Vroom to make it a private module terminal (for the setting

procedures, consult the Vroom hardware manual):

CANbus address: 40 + address of the MCZN zone regulator to which the connection is to be made

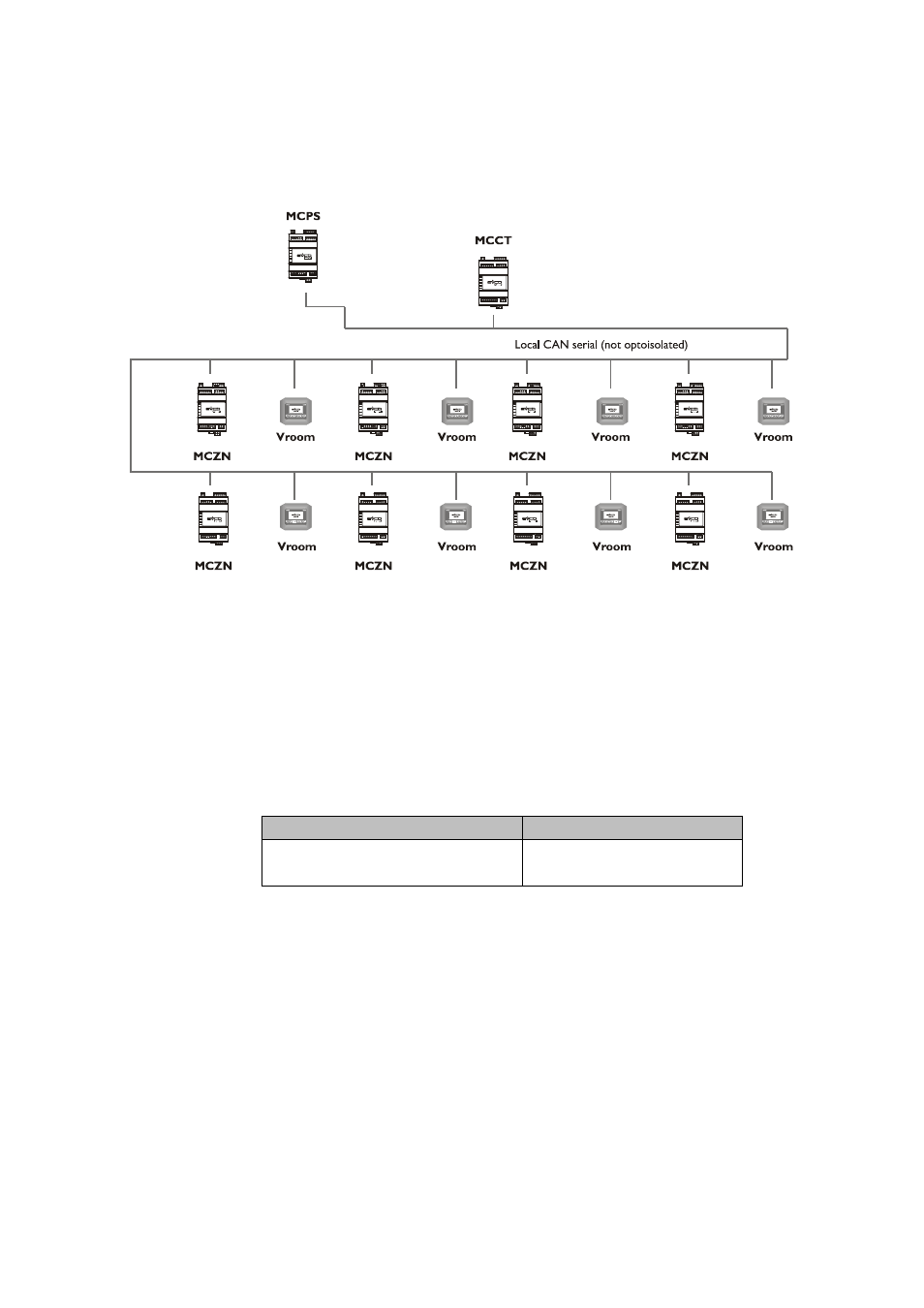

CANbus map:

MCCT thermal power plant controller settings:

Below find the settings to make on the MCCT regulator to make Vgraph a private module:

From the Installer Other parameters enable public Vgraph

MCZN zone controllers settings:

Below find the settings to make on the MCZN regulators to make Vgraph a private module:

From the Installer Other parameters enable public Vroom

1:Separate zones

2: All zones in 1 V-room only

Network node

Address

1

MCZN associated controller

address
