Evco S.p.A.

c-pro 3 CLIMA sistema | Installer manual ver.1.1 | Code 144CP3CSE114

page 18 of 74

3.5.1

Public terminal

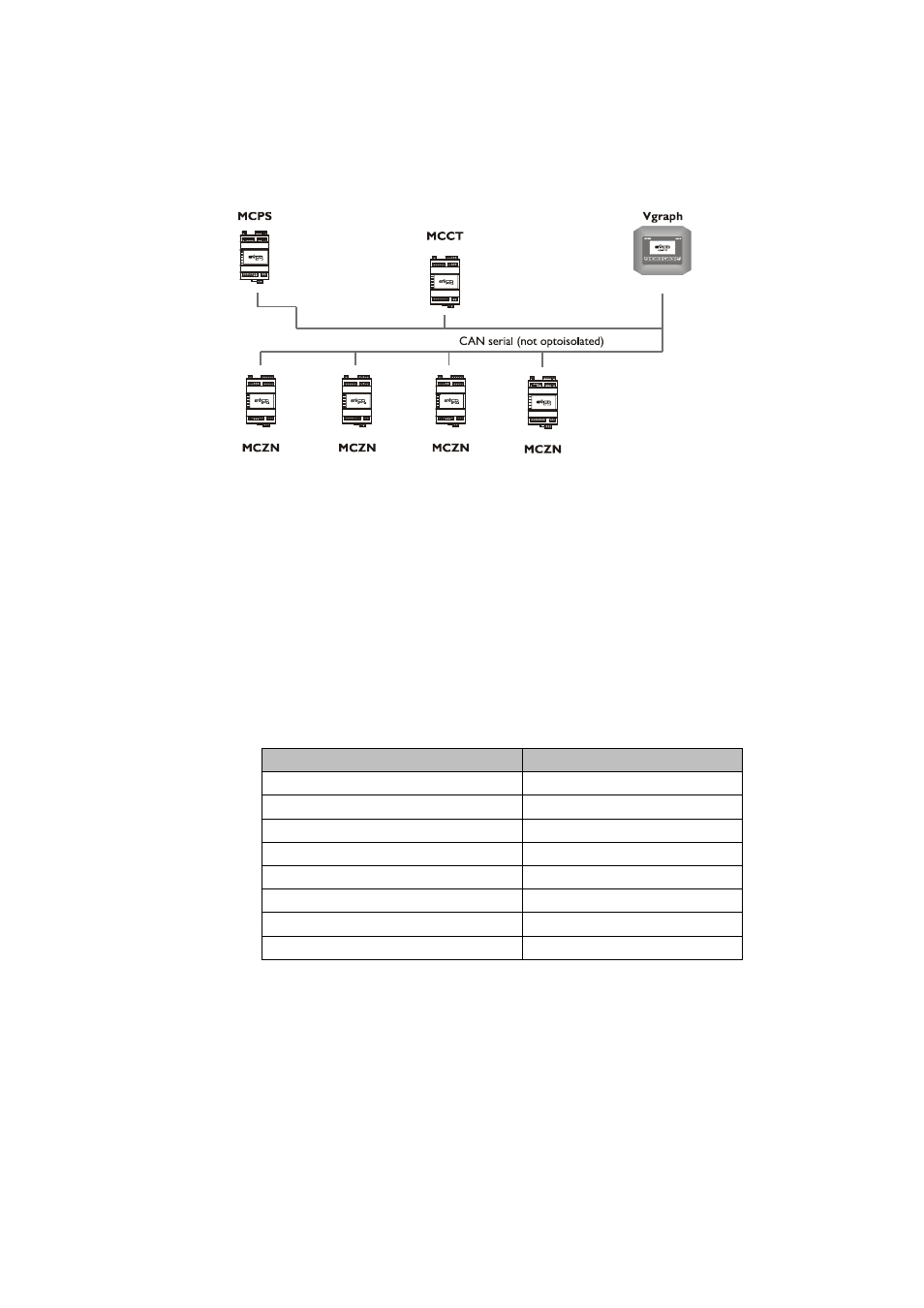

If the viewer is configured as a terminal Vgraph public (universal), will be able to view all zone controllers MCZN in

the system and all areas managed by the controllers MCZN to 6 zones.

A hotel is given as an example.

The unique Vgraph display will be installed in an area with access to authorised staff only, which will establish the

temperatures and time bands predefined for every Zone (hotel room) managed.

The hotel client will only have the possibility to change the room temperature, using the EVSET remote set-point

variator (installed in the room), by ±3-5°C (from parameter).

Vgraph settings:

Below find the network settings to be made on Vgraph to make it a public terminal (for the setting procedures,

consult the Vgraph hardware manual):

CANbus address: 100

CANbus map:

MCCT thermal power plant controller settings:

Below find the settings to make on the MCCT regulator to make Vgraph a public terminal:

From the Installer

Other parameters, enable the presence of the public Vgraph display via Enab. Vgraph -

parameter

MCZN zone controllers settings:

Below find the settings to make on the MCZN regulators to make Vgraph a public terminal:

From the Installer

General parameters menu, enable the presence of the public Vgraph display by setting the

Vgraph mode parameter in UNIV.

Network node

Address

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9
