MCZN zone controllers settings:

Below find the settings to make on the MCZN regulators to make Vroom a private zone terminal:

From the Installer

Other parameters menu, enable the presence of the private zone Vroom display by setting

Separate Zone

4

USER INTERFACE

4.1

Display and keyboard

For the application there is a graphic LCD display and 6 dedicated keys.

4.1.1

Built-in interface

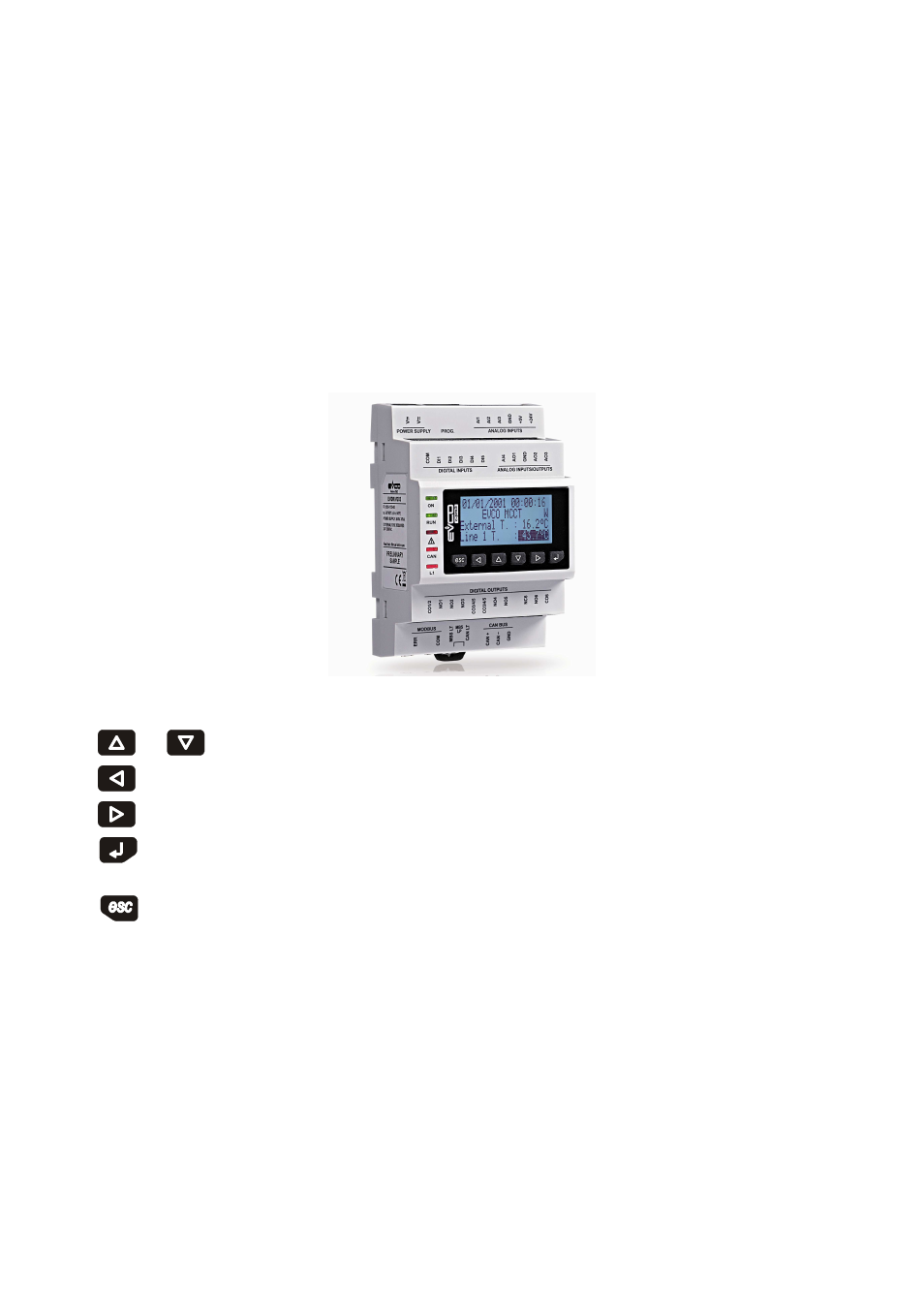

The built-in interface is integrated directly onto the MCCT.

There are 6 navigation and value editing pages present in the keyboard with the following meaning:

-

and

(UP and DOWN): when editing it modifies the parameters; otherwise moves the cursor.

-

(LEFT): moves the cursor to the left or takes to the previous menu.

-

(RIGHT): moves the cursor to the right.

-

(ENTER): in editing it confirms the value; otherwise it sends any controls associated to the text where the

cursor is present.

-

(ESC): in editing it annuls the value; otherwise request of the default page eventually associated to the

current page. If the ESC key is held for about 2 seconds, the machine can be switched on/off,
