6.2.5

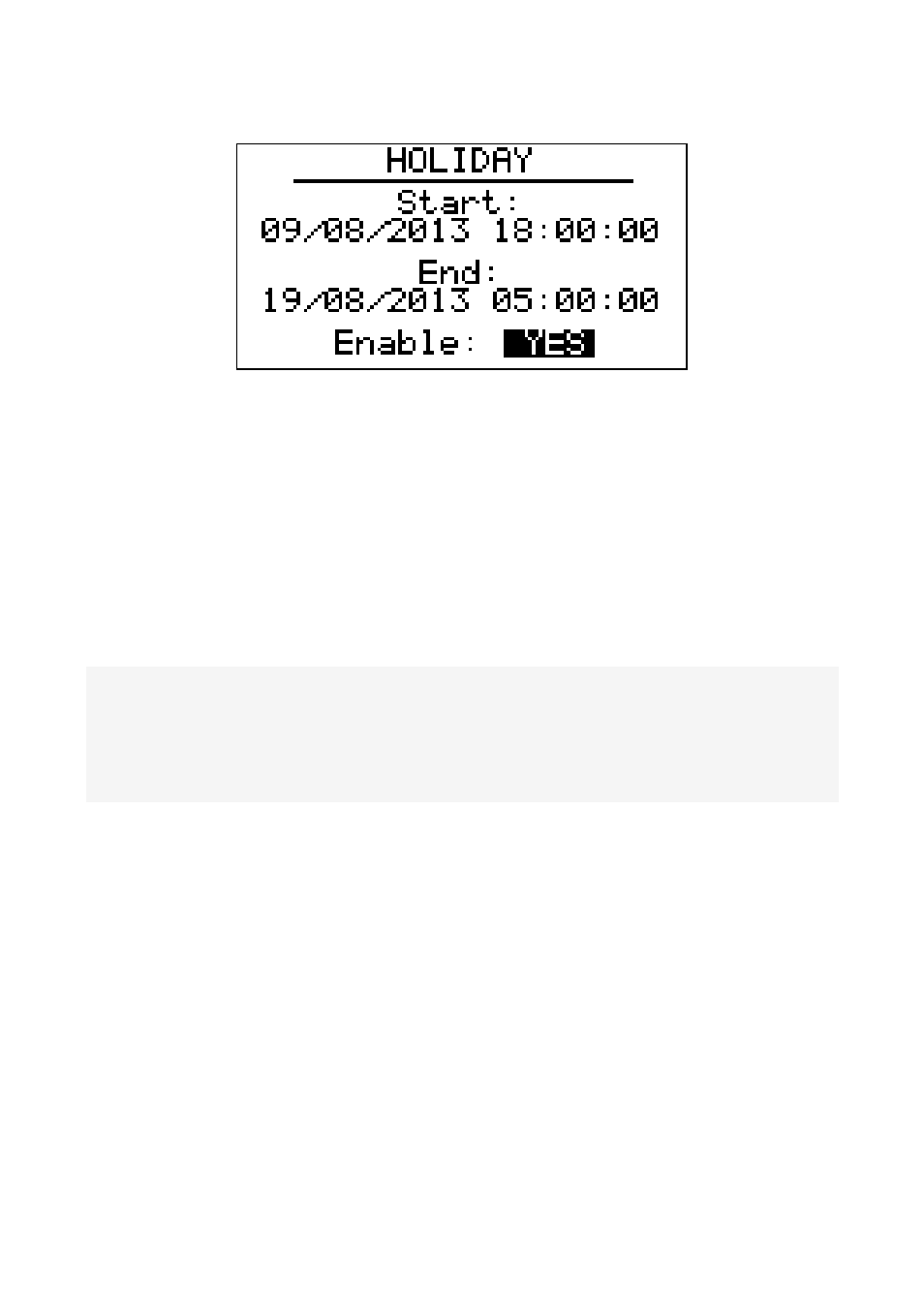

Screenshot holiday

You can set the start date and end and enabling the vacation mode.

6.3

Main menu accessible by MCCT

Under Network Module MCCT you can access the setup pages of all the operating parameters of the controller are

organized in the following sub-menus:

6.3.1

Alarm menu

This menu contains information related to the MCZN alarms present/active in the controller.

For more details refer to the section of the form MCCT, Menu alarms.

6.3.2

Maintainer menu

The maintenance menu is level 2, enter the password that is used for maintenance level or higher to view/edit the

parameters in this branch.

From this menu you can change the operating mode (auto-manual), the calibration probes and finally setting the

drive's remote setpoint.

For submenu in the Setup menu for the module maintainer explained previously MCCT.

6.3.3

Installer menu

The Installer menu is level 3, that is used to enter the password installer level to be able to view / edit the parameters

in this branch.

From this menu you can view and set the configuration of the system managed by the MCZN.

- Menu ZONE: entering areas in the menu you can set the address of the CAN module MCZN, set the number of zones

of the module and enable the adaptive adjustment.

At this point you can access the parameters dedicated to each of the 6 zones and set the control type, the supply line

and associated probes associated.

- Menu CLIMATE: Climate entering the menu you can configure the parameters of the temperature curve for each

zone.

- Menu DEHUMIDIFY: entering the menu you can enable dehumidification operation of the water supply for the

dehumidification function and configure the dehumidification function.

- Menu fancoils: fancoils entering the menu you can set the number and type of fan coil units can be managed and

how they work.

- Menu ALARM: entering in the alarm menu you can configure the general parameters.
