Evco S.p.A.

c-pro 3 CLIMA sistema | Installer manual ver.1.1 | Code 144CP3CSE114

page 11 of 74

3.3

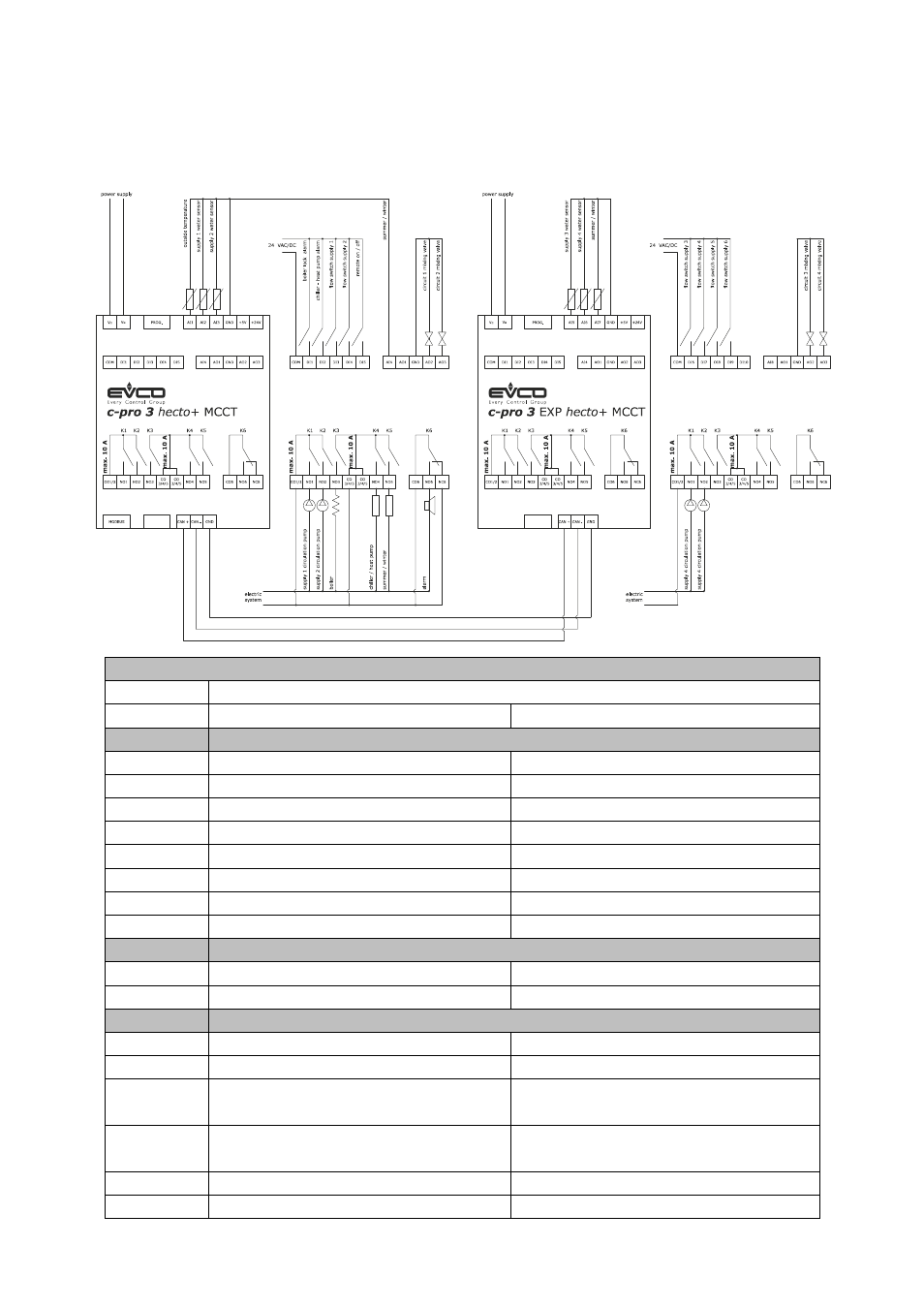

Electric connections

3.3.1

Thermal power plant electric connections (MCCT) hecto +

c-pro 3 hecto+ Thermal plant controller

I/O

Description

1 or 2 delivery lines (PL01 = 1 or 2)

3 or more delivery lines (PL01 = from 3 to 6)

Analog inputs (NTC / 0-5V / 4-20mA)

A/I 1 CT

External air temperature – NTC

External air temperature – NTC

A/I 2 CT

Delivery temperature 1 – NTC

Delivery temperature 1 – NTC

A/I 3 CT

Delivery temperature 2 – NTC

Delivery temperature 2 – NTC

A/I 4 CT

Summer/Winter

Summer/Winter

A/I 5 EXP

Not used

Delivery temperature 3 – NTC

A/I 6 EXP

Not used

Delivery temperature 4 – NTC

A/I 7 EXP

Not used

Summer/Winter

A/I 8 EXP

Not used

Not used

Serial ports

Rs485

RS485 modbus RTU (su RJ45)

RS485 modbus RTU (su RJ45)

CANbus

Ai moduli c-pro 3 CLIMA sistema

Ai moduli c-pro 3 CLIMA sistema

Digital inputs (ON-OFF 24V)

D/I 1 CT

Alarm (block) Boiler

Alarm (block) Boiler

D/I 2 CT

Alarm chiller – heat pump

Alarm chiller – heat pump

D/I 3 CT

Delivery pump 1 flow switch (and/or thermal

switch)

Delivery pump 1 flow switch (and/or thermal

switch)

D/I 4 CT

Delivery pump 2 flow switch (and/or thermal

switch)

Delivery pump 2 flow switch (and/or thermal

switch)

D/I 5 CT

ON-OFF remote

ON-OFF remote

D/I 6 EXP

Not used

Delivery pump 3 flow switch (and/or thermal
