Zone private terminal

If the viewer Vroom is configured as a private terminal areas separated, every Vroom display will be able to only

show the preselected MCZN zone regulator, and only the zone selected managed by the MCZN controller.

As an example, an individually owned villa on two floors.

A Vroom display will be installed for each zone controlled (living room, bedroom, bathroom), which will establish

temperatures and time bands for the Zone where the display is installed, without possibility of displaying or modifying

the settings of the other zones present.

Vroom settings:

Below find the network settings to be made on Vroom to make it a private zone terminal (for the setting procedures,

consult the Vroom hardware manual):

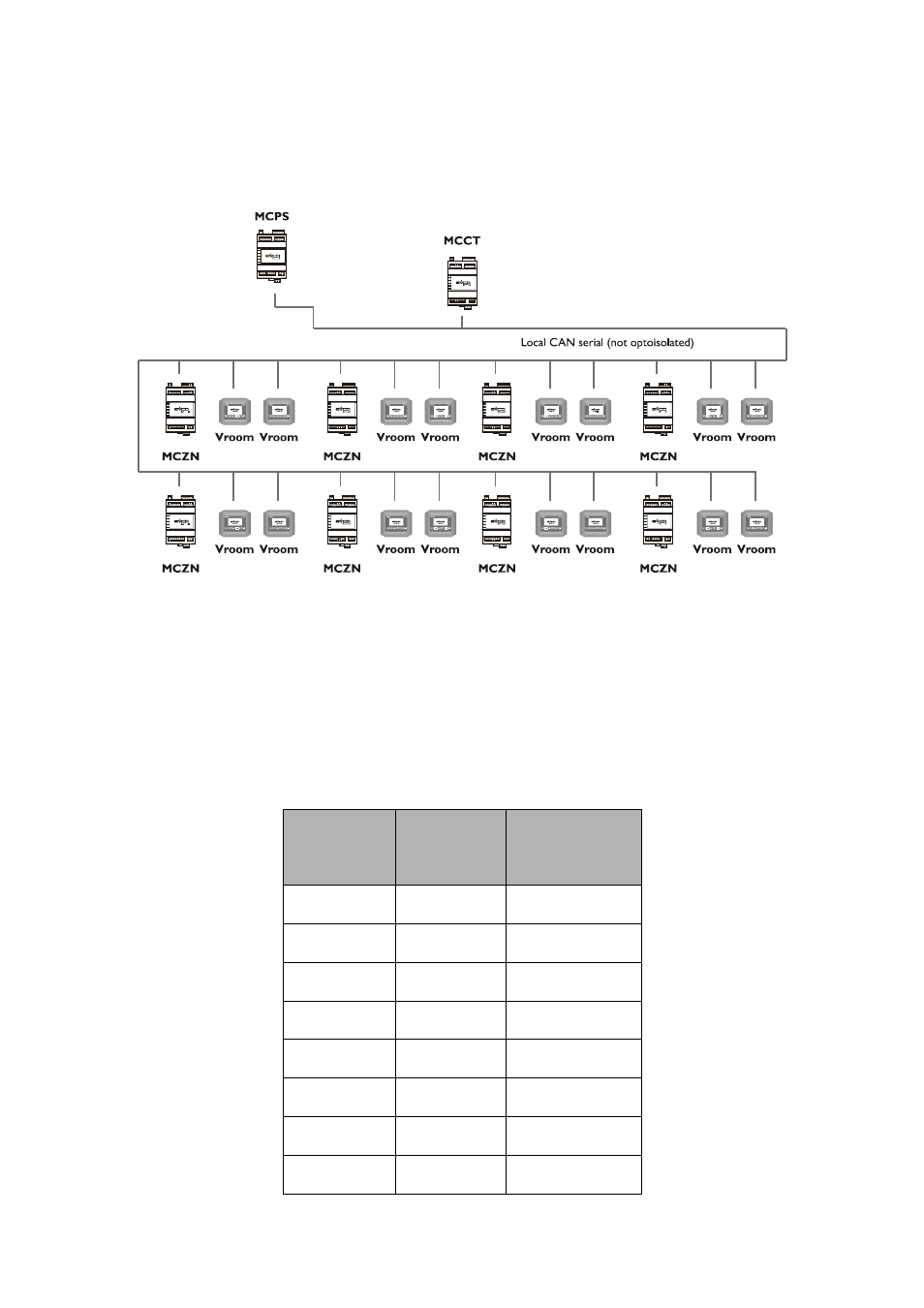

CANbus map:


Modulo
Zona

Indirizzo
CAN

Vroom

Zone 1

2

Z1: Addr42
Z2: Addr 52

Zone 2

3

Z1: Addr43
Z2: Addr 53

Zone 3

4

Z1: Addr44
Z2: Addr 54

Zone 4

5

Z1: Addr45
Z2: Addr 55

Zone 5

6

Z1: Addr46
Z2: Addr 56

Zone 6

7

Z1: Addr47
Z2: Addr 57

Zone 7

8

Z1: Addr48
Z2: Addr 58

Zone 8

9

Z1: Addr49
Z2: Addr 59
