- 150 -
GS l n1L n1H n2L n2H
CT-S280 CT-S300 CT-S2000 CT-S4000 BD2-2220 CT-S310
support model
PMU2XXX
[Function] Setting the Black mark/ label length
[Code] < 1D>H<6C>H
[Range] 0≦n1L≦255 (24≦n1L+n1H×256≦360）
0≦n1H≦1
8≦n2L≦30
n2H＝0
[Outline] [The specification which is common to the model]
Define the specifications (length) of the Black mark/ label used.
n1: Sets the Black mark pitch/ label length
n2: Sets the Black mark length/ label gap length
n1 and n2 are specified units of millimeters.
Divide the maximum Black mark pitch/ label length by 256 with the quotient designated as n1L and
the remainder as n2H. Accordingly, the Black mark pitch/ label length available for setting will be
n1L+n2H×256.
[Caution] • If the specified length is outside of Black mark/ label specifications, the default length is set.
• 360 mm is the maximum Black mark pitch/ label length allowed to define and 24 mm is the
minimum.
• 30 mm is the maximum allowable Black mark length/ label gap length to define and 8 mm is the
minimum.
[Default] The following default values are set when memory switch SW4-1 is set to ON.
n1L=25 n1H=0 n2L=8 n2H=0

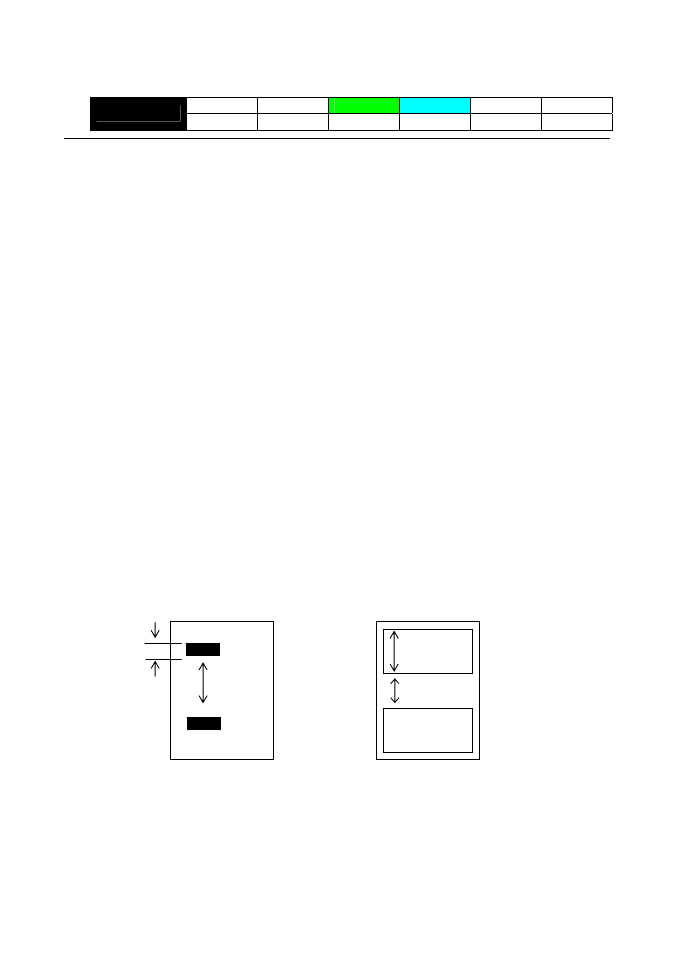

Black mark paper Label paper
n1L+n1Hx256
n2L+n2Hx256
n1L+n1Hx256
n2L+n2Hx256
