Wire synchronization system, Wire synchronization system -12, Transmitter: 7-core cable, receiver: 7-core cable – KEYENCE GL-RHG Series User Manual

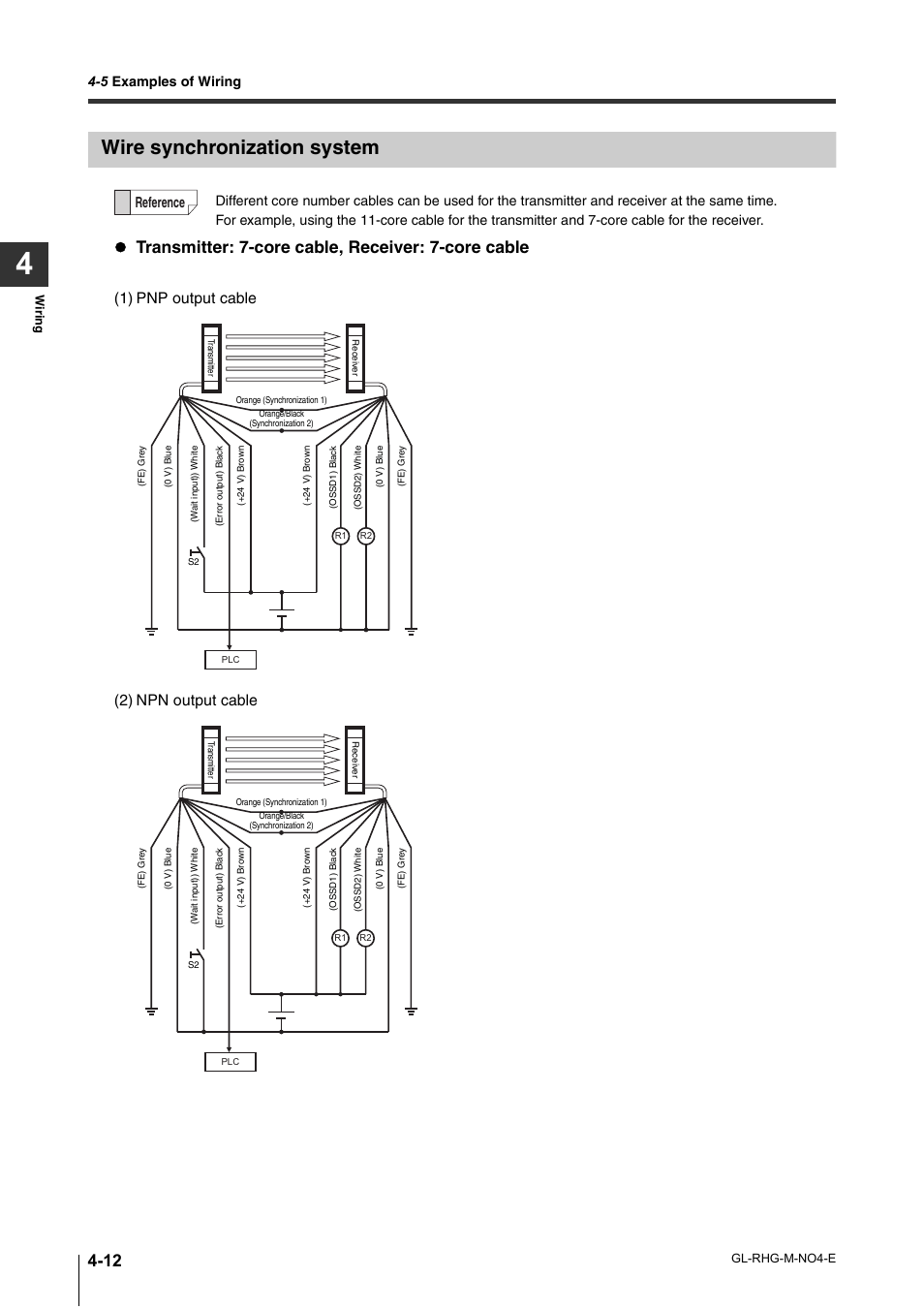

Page 82: Reference, 1) pnp output cable (2) npn output cable, 5 examples of wiring
